Clear-Com RM-704 4-Channel Headset/Speaker Remote Station

SGD 2,185.15 excl. Tax

Weight 5 kg
Clear-Com
SKU: RM-704 Categories: ,
Description
Our Score
Click to rate this post!
[Total: 0 Average: 0]

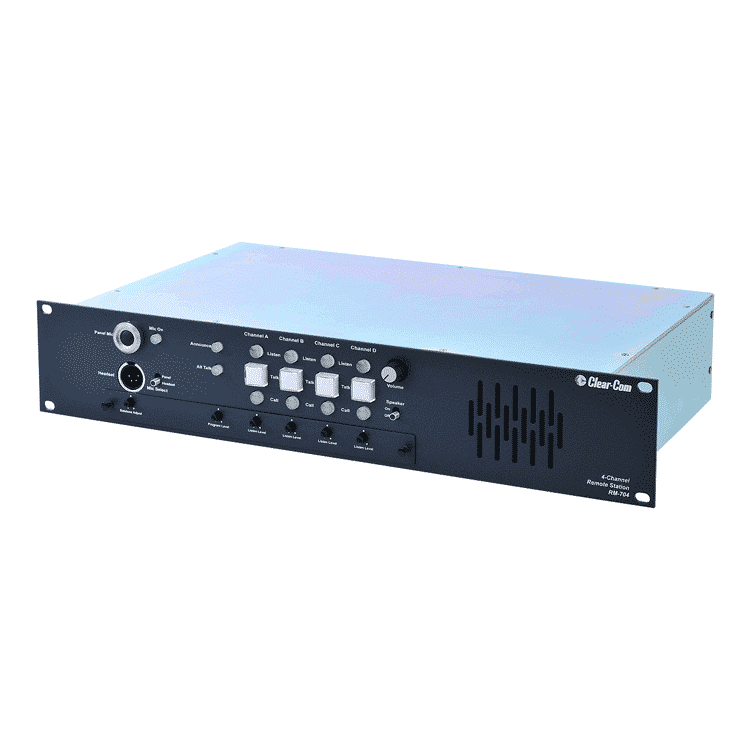

Clear-Com RM-704 4-Channel Headset/Speaker Station Rack Mount (2RU)

Clear-Com RM-704 remote station provides four independent intercom channels, with programmable front-panel buttons for versatility. Separate volume controls for each channel and four separate audio program inputs via DB-15 Connector. Three IFB channels for talent cueing and announce button/relay for paging. Powered by the intercom line.

Features:
  • Four Independent Intercom Channels for ultimate flexibility
  • Microprocessor-Controlled Logic assures maximum communications power
  • Separate Talk and Listen to Buttons for each channel
  • Individual Listen to Volume Controls for each channel
  • All-Talk Function permits instant communications to all four channels
  • Four Separate Program Inputs are electronically balanced
  • Three Interruptible IFB Channels make talent cueing easy
  • Announce Button with Relay for external paging
  • Visual Call Signaling alerts users when others want to speak to them
  • Wide-Range High-Output Speaker for optimum clarity in all acoustic environments
  • Hot-Mic Output allows easy connection to external IFBs
  • Adjustable Mic Proximity Compensation reduces acoustic feedback
  • Superior Contoured Audio insures excellent voice intelligibility under all noise conditions, including high-noise environments
  • LED buttons for talk, call, announce, link, all talk, and mic on



Specifications
Our Score
Click to rate this post!
[Total: 0 Average: 0]
Panel Microphone Input Input Type : Electret
Input Impedance: >=2KΩ
Mic Limiter Threshold: 0dBu ±3dB
Mic Limiter Range: >= 20dB
Headset Microphone Input Input Type: Dynamic
Input Impedance: >= 1KΩ
Mic Limiter Threshold: 0dBu ± 3dB
Mic Limiter Range: >= 15dB
Program Line Input Maximum Level before Clipping: >= 20dBu
Input Impedance: >= 5KΩ
Headset Output Load Impedance: >= 8Ω
Output Impedance: <= 25Ω Output Limiter Threshold: 5dBu ± 3dB Maximum Output Level before Distortion: >= 17dBu
Speaker Output Load Impedance: >= 4Ω
Max Output Level before 1% Distortion: 20dBu ± 2dBu
Party-line Output Off Noise: < -74dBu Output Impedance: >10KΩ
Party-line Input Crosstalk: < -60dB Max level before Clipping: >= 12dBu
Sidetone Null Capability: > 25dB
Stage Announce/Balanced Line Out Type: Balanced
Output Impedance: >= 200Ω
Load Impedance: >= 600Ω
IFB/Hot Mic Type: Unbalanced
Output Impedance: 180Ω
Load Impedance: >= 600Ω
Frequency Response Panel Mic – Party-line: 600 – 10KHz ± 3dB
Headset Mic – Party-line: 200 – 12KHz ± 3dB
Headset Mic – Line Out: 200 – 12KHz ± 3dB
Program Input – Party-line: 100 – 17KHz ± 3dB
Program Input – Headset Out: 200 – 10KHz ± 3dB
Program Input – Speaker Out: 300 – 10KHz ± 3dB
Party-line – Headset Out: 200 – 10KHz ± 3dB
Party-line – Speaker Out: 300 – 10KHz ± 3dB
Max Distortion Panel Mic – Party-line: <= 0.5% Headset Mic - Party-line: <= 0.5% Headset Mic - Line Out: <= 0.5% Program Input - Party-line: <= 0.2% Program Input - Headset Out: <= 0.2% Program Input - Speaker Out: <= 0.5% Party-line - Headset Out: <= 0.2% Party-line - Speaker Out: <= 0.5%
Noise Panel Mic – Party-line: < -65dBu Headset Mic - Party-line: < -70dBu Headset Mic - Line Out: < -55dBu Program Input - Party-line: < -85dBu Program Input - Headset Out: < -60dBu Program Input - Speaker Out: < -60dBu Party-line - Headset Out: < -50dBu Party-line - Speaker Out: < -50dBu
Max Gain Panel Mic – Party-line: >= 37dB
Headset Mic – Party-line: 41dB ± 2dB
Headset Mic – Hot Mic Out: 55dB ± 3dB
Headset Mic – Announce Out: 55dB ± 3dB
Program Input – Party-line: >= -16dB
Program Input – Headset Out: >= 18dB
Program Input – Speaker Out: >= 24dB
Party-line – Headset Out: >= 34dB
Party-line – Speaker Out: >= 40dB
Min Gain Panel Mic – Party-line: <= 25dB
Power Input Voltage Range: 20-30 VDC
Input Current (Idle): <= 90mA Input Current (Max): <=110mA
Rear Panel Connectors Intercom: (2) XLR-3M (1 per channel)
(2) XLR-3F (1 per channel)
Hot Mic / IFB Interface: (1) 1/4 in. (0.64 cm) phone jack
Accessory: (1) DB-15F
Rear Panel Controls (12) Option switches
Front Panel Connectors Panel Mic: (1) 1/4 in. (0.64 cm) panel mounting jack
Headset: (1) XLR-4M
Front Panel Controls & Indicators (1) Panel / headset mic switch
(1) Announce button
(2) Program send level controls
(1) Program monitor level control
(2) Listen controls
(2) Sidetone null controls
(2) Talk buttons
(2) Call buttons
(1) Speaker ON-OFF switch
Environmental 32 – 122°F (0 – 5°C)
Dimensions 19 in. W x 1.75 in. H x 7.0 in. D
(483 mm x 44.5 mm x 178 mm)
Weight 5.2 lbs. (2.36 Kg)
