Clear-Com RS-702 2-ch analog beltpack with XLR-6 line connector
SGD 906.00 excl. Tax
Clear-Com PK-7 1-Channel 0.4 Amp Portable Power Supply
SGD 842.00 excl. Tax
Clear-Com RS-703 2-channel analog beltpack with XLR-3 line connector
SGD 891.00 excl. Tax
| Weight | 2 kg |
|---|
Description
Click to rate this post!
[Total: 3 Average: 5]

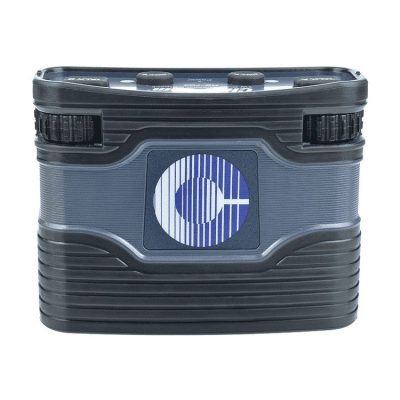

Clear-Com RS-703 2-channel analog beltpack with XLR-3 line connector
The Clear-Com RS-703 is a two-channel analog beltpack with an XLR-3 line connector and XLR-4M headset connector. A mic preamp with a dynamic range of 130 db enables intelligible voice communication for every volume level, from a whisper to a shout. The beltpack also combines high headroom, low noise audio, and shaped frequency contour (Clear-Com Sound) to deliver crystal-clear audio. A thumbwheel level adjustment is available for Program In, as well as a 3.5mm TRS jack for Program Input.
The Clear-Com RS-703 is compatible with all Encore partyline products, as well as the PL-Pro line and other TW partyline systems via Encore interfaces.
*A TWC-701 interface is required to connect beltpacks to the central station. Only one interface is necessary for each system.
Key Features:
- Visual LED indication on the top of the keypad for power supply, call signal, and Talk latch
- Rugged and reliable design
- Able to work together with current and old models of Clear-com partyline systems
- Requires low power consumption even for connecting with more beltpacks
- Thumbwheel adjustment is available for program audio.
- Buttons are available for Call and Talk
- 3.5mm Program Audio Input jack
- Volume control is available with end stops for a 270° rotation range.
- Concealed, programmable DIP Switches for Latch Talk on Channels A/B, Talk with Call, LEDs Off, Mic Gain, Mic Type, HP Level Off, Min Volume, RTS/Clear-Com, and Call-on Talk
Related Headset
Clear-Com CC-300 Single ear standard headset
Clear-Com CC-400 Double ear standard headset
Main Station
Clear-Com MS-704 4-Channel Headset/Speaker Main Station
Clear-Com MS-702 2-Channel Headset/Speaker Main Station
Clear-Com CS-702 2-Channel Portable Headset Main Station
Clear-Com SB-704 Switchboard Main Station
Clear-Com SB-704 4-Channel Switchboard Main Station
Others Beltpack
Clear-Com RS-701 single-channel analog beltpack
Clear-Com RS-702 2-ch analog beltpack
Specifications
Click to rate this post!
[Total: 3 Average: 5]
| Microphone Pre-Amplifier | Mic to Line (without limiter acting) Frequency Response: 280 – 15k Hz ± 3dB Microphone output to line – Audio Level (-50dBm Electret input): -9dBm Microphone output to line – Distortion: <0.1% Microphone output to line – Signal to Noise: >65dB Clear-Com Sound: Yes |
|---|---|
| Headphone Amplifier | Frequency Response – Line to Headphone: 150 – 20k Hz ± 3dB Headphone input from line – Audio Level (-9dBm Electret input): 7dBm Headphone input from line – Distortion: <0.5% Headphone input from line – Signal to Noise: >50dB Earphone to Mic – Crosstalk: >80dB Sidetone – Adjustment Range (-80db mic input): >45dB |
| Keypad Indicators | Power: Green LED Talk A: Green LED Call A: Orange LED Talk B: Green LED Call B: Orange LED |
| Connectors | Intercom Line: (2) 3-pin XLR–M–F Ch. 1 2-Wire Intercom Channel Pin 1: Common; Pin 2: PL Power ( 28VDC)/PL Ch-A; Pin 3: PL Ch-B Headset: 4-pin XLR–M Headset Connector; Pin 1: Mic – (Mic Common); Pin 2: Mic ; Pin 3: Spkr-; Pin 4: Spkr (&0.5*VCCDC Supply between Pin 4 & Pin 1) Program Audio Input: 3.5mm TRS jack |
| Power Requirements
|
25mA Quiescent 35mA Average talk 40mA Talk with signaling DC Voltage Range: 12-30VDC |
| Environmental | Operating Temp Range: 0°C – 70°C (32°F – 158°F) Storage Temp Range: 0°C – 70°C (32°F – 158°F) Relative Humidity: 0 – 90% non-condensing |
| Dimensions | 3.4in H x 4.5in W x 1.7in D (86.4 x 114.3 x 43.2 mm) |
| Weight | 0.68 lbs (0.31 kg) |
Delivery Info
Click to rate this post!
[Total: 3 Average: 5]
How to shop TAX free in Singapore
9% Goods Service Tax (GST) will be imposed over the total invoice value if purchased locally in Singapore. However if you are a tourist visiting Singapore, this GST amount can be refunded at the Changi International Airport Departure Hall GST Refund Centre before departure with goods within 60 days from the date of purchase. Please note that only Tourists who have met the Tourist Refund Scheme’s conditions and eligibility criteria can claim for the GST refund. Visit the following link for GST Guide for Visitors on Tourist Refund Scheme. https://www.iras.gov.sg/taxes/goods-services-tax-(gst)/consumers/tourist-refund-scheme
All items that are available for purchase online are subjected to availability. For item that are available, a confirmation email will be sent to your registered email to show that your order had been processed and is ready for collection / to be delivered. In the event whereby the item ordered is unavailable, a notification email will be sent and refund will be initiated immediately.
Self-collect: Item will be ready for collection at our store once the confirmation email is received. Orders that are made on the Weekends or Public Holiday may take about 2-4 working days to process.
Delivery (Local, Singapore): Small items: Delivery will take approximately 3-5 working days (excluding weekends and public holidays) to be delivered upon confirmation of order. Orders will be delivered by Singpost or local couriers.
Large / Bulky items: Delivery will take approximately 7-10 working days (excluding weekends and public holidays) to be delivered upon confirmation of order. Orders will be delivered by Expandore.
Delivery (Overseas); Shipment will be arranged with our courier partners to be delivered to your shipping address.
If you have other inquiries for placing of order and delivery, you can refer to our FAQ here (https://www.expandore.sg/faq/) Or Contact us here (https://www.expandore.sg/contact-us/)
Reviews (1)
1 review for Clear-Com RS-703 2-channel analog beltpack with XLR-3 line connector
Clear filtersOnly logged in customers who have purchased this product may leave a review.
Related products
SGD 1,691.00 – SGD 1,974.00 excl. Tax excl. Tax
SGD 608.00 excl. Tax
SGD 906.00 excl. Tax
SGD 729.00 excl. Tax
Raj V –
Having used the Clear-Com RS-703 two-channel analog beltpack, I can confidently attest to its exceptional performance and functionality.
The RS-703 boasts an impressive array of features that cater to professional communication needs. Its XLR-3 line connector and XLR-4M headset connector ensure reliable connectivity, making setup a breeze. The inclusion of a mic preamp with a dynamic range of 130 dB ensures clear and intelligible voice transmission across varying volume levels, accommodating whispers to shouts with clarity.
What truly sets this beltpack apart is its audio quality. The combination of high headroom, low noise audio, and the Clear-Com Sound technology ensures crystal-clear audio reproduction. The shaped frequency contour adds depth and richness to the sound, enhancing the overall communication experience.
The thumbwheel level adjustment for Program In and the 3.5mm TRS jack for Program Input provide convenient control over audio inputs, offering flexibility in managing external audio sources. Additionally, the visual LED indication for power supply, call signal, and Talk latch on the keypad enhances usability, allowing for quick status checks at a glance.
Compatibility is a significant advantage of the RS-703. It seamlessly integrates with various Encore partyline products, the PL-Pro line, and other TW partyline systems via Encore interfaces. The ability to work with both current and older Clear-Com partyline systems underscores its versatility in different setups.
Moreover, the beltpack’s rugged and reliable design ensures durability in demanding environments. Its low power consumption, even when connecting multiple beltpacks, is commendable, contributing to its efficiency.
The inclusion of features such as thumbwheel adjustment for program audio, buttons for Call and Talk, volume control with end stops, and concealed programmable DIP switches for various settings adds to its usability and adaptability.
