Clear-Com TW-12C System Interface
Click to enlarge

Clear-Com TW-12C Clear-Com/RTS System Interface Rack Mount (1RU)

USD 1,210.00 USD 1,149.50 excl. Tax

Weight2.9 kg
Add to wishlist
SKU: TW-12C Categories: ,
Description

Clear-Com TW-12C Clear-Com/RTS System Interface Rack Mount (1RU)

Clear-Com/RTS System Interface Rack Mount (1RU), connects Clear-Com to Clear-Com or Clear-Com to RTS systems

Clear-Com TW-12C connects a single channel of intercom from one system to another. Opt isolation eliminates hums and buzzes. Compensates for level and impedance differences between systems. Allows Clear-Com-to-Clear-Com, Clear-Com-to-RTS, and RTS-to-RTS system configurations. Powered by the connected intercom system. Translates “call” signals in both directions.

Features
  • Clear-Com/RTS System Interface
  • System isolation for: Clear-Com to Clear-Com, Clear-Com to RTS, RTS to RTS
  • Eliminates grounding problems between intercom systems
  • Matches gains between systems
  • Passes through and translates signaling
  • Hybrid nulling up to 40 dB
  • Built-in setup tone
  • Powered directly from connected intercom system
Specifications
Clear-Com FormatLine Characteristics
Max Level Before Clipping : >=3dBu
Impedance: >=10KΩ

Signalling
Receive: <=4 VDC
Send: >=11VDC

RTS FormatLine Characteristics
Max Level Before Clipping : >=5dBu
Impedance: >=10KΩ

Signalling Tone
Send frequency: 20kHz ±100Hz
Receive frequency: 20kHz ±500Hz
Send level: >=-6dBu
Receive level: <=-25dBu

General Characteristics of TW12C
Frequency ResponseParty-line – Party-line: 200-8KHz
DistortionParty-line – Party-line: <=0.2%
Max GainClear-Com – RTS: >=9dB
Clear-Com – Clear-Com: >=4dB
RTS – Clear-Com: >=-1dB
RTS – RTS: >=4dB
Min GainClear-Com – RTS: <=1dB
Clear-Com – Clear-Com: <=-4dB
RTS – Clear-Com: <=-9dB
Power RequirementsInput Voltage Range: 20-30VDC
Input Current (average): <=50mA

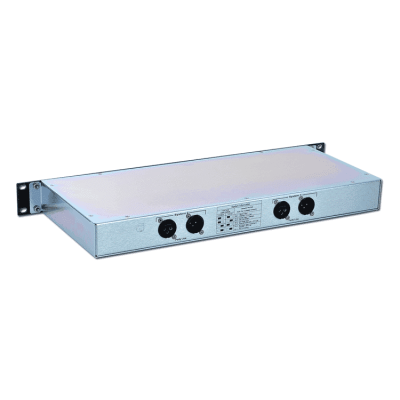

Rear Panel ConnectorsRear panel: (2) XLR3M (1 per channel)
(2) XLR3F (1 per channel)

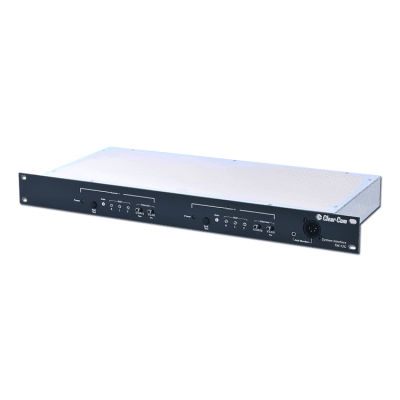

Front Panel ConnectorsHeadset: (1) XLR4M
TS1 Earphone: (1) 3.5mm Jack Socket
Front Panel Controls
and Indicators		Power: (2) Green LED (1 per channel)
Null Test Button : (2) Buttons (1 per channel)
Gain Level Adjust: (2) Controls (1 per channel)
Null Adjust: (6) Controls (3 per channel)
Connection Type Switch: (2) Switches (1 per channel)
Pin Connection Select Switch: (2) Switches (1 per channel)
Dimensions1.75in. H x 19in. W x 7.25in. D
(45 x 483 x 185 mm)
Weight5.63 lbs. (2.56 Kg)
