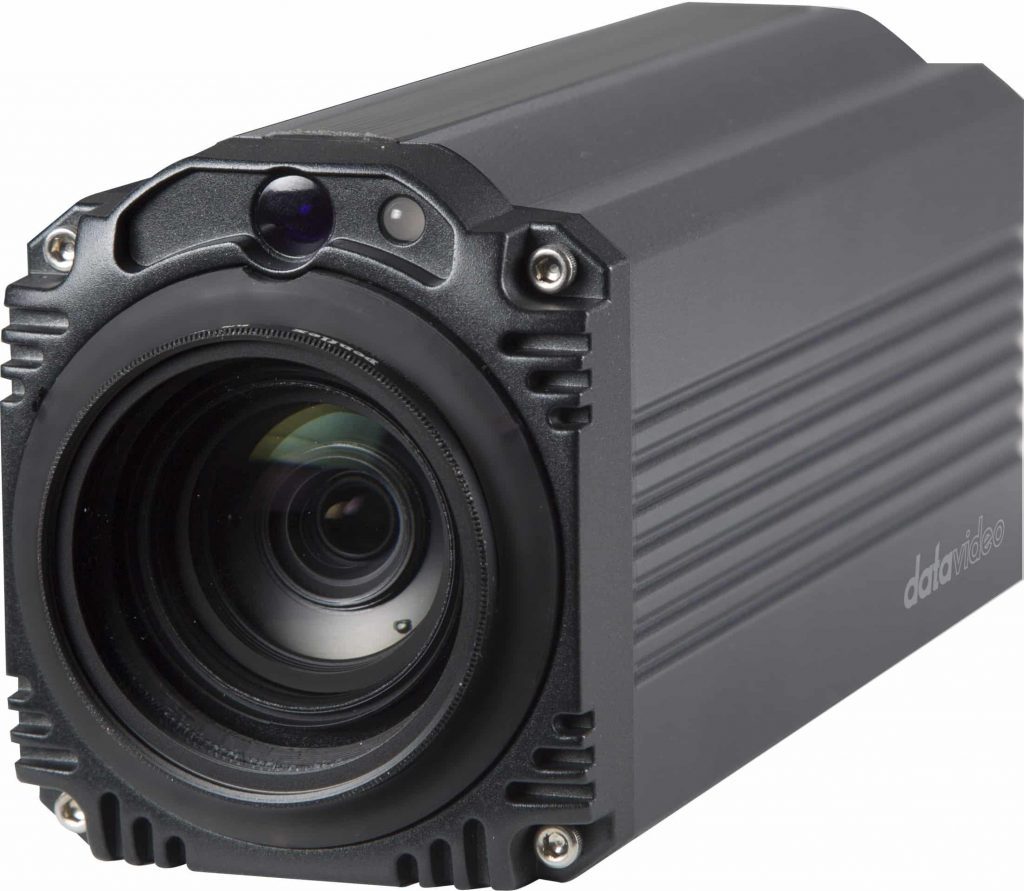

Datavideo BC-80 12x optical focus HD Block Camera

The Datavideo BC-80 Block Camera is a small HD camera with an infra-red remote control. It can be used for HD high quality shooting within a limited space. It can support resolutions up to 1080p60. The Datavideo BC-80 provides 30x optical zoom, and the image output interfaces are SDI and HDMI. A tally light indicator is installed above the Datavideo BC-80 camera lens. The control protocol supports SONY VISCA, so the camera can be controlled via RS-422 or DVIP interface.

Features

• HD Resolution: 1/2.8″ High Definition 2.0 M Pixels progressive CMOS sensor
• High definition formats supported: 1080/ 59.94p, 1080/ 50p, 1080/ 59.94i, 1080/ 29.97p, 1080/ 25p, 1080/ 50i, 720/ 59.94p, 720/50p
• Digital Noise Reduction Function (DNR) to reduce the noise and enable sharper image under low light conditions.
• Video Output: SDI HDMI synchronously.
• Tally LED Design (RS-422/ DVIP Operation)
• Supports SONY VISCA Protocol
• Supports DVIP Control Protocol

Specifications

Video format	1080p 59.94/50/29.97/25, 1080i 59.94/50, 720p 59.94/50
Image Sensor	1/2.8” type progressive scan CMOS sensor
Effective Pixels (approx.)	2.14 Mega pixels
S/N Ratio	50 dB
Min. Illumination	Color: 0.4 lx (F1.6, 1/30 sec, 50IRE, Gain: High) B/W: 0.03 lx (F1.6, 1/30 sec, 50IRE, Gain: High)
Electronic Shutter	1/25 (1/30), 1/50 (1/60), 1/75(1/90), 1/100, 1/120 (1/125), 1/150(1/180), 1/215( 1/250), 1/300(1/350), 1/425(1/500), 1/600(1/725), 1/1000, 1/1250(1/1500)
Zoom Ratio	30x Optical Zoom
Gamma Control	Off / Normal / Standard Mode 1-4
Iris Control	Auto / Manual
Digital Noise Reductions	Yes
On-Screen Display (OSD)	English
White Balance	AWB / MWB / One push WB / Outdoor / Indoor / Fluorescent
AGC / Gain Control	Auto / Manual (0 to 28 step) Max. Gain Limit (6 to 28 step)
Mirror / Flip Image	Yes
Focus Mode	Auto / Manual
Panning/Tilting Range	N/A
Panning/Tilting Speed	N/A
Preset	10 Position
Focal Length	F=4.3 mm (WIDE) to 129 mm (TELE) F1.6 to F4.7
Field of View (Horizontal, Wide)	Approx. 63.7° (WIDE END) / 2.3° (TELE END)
Image Compensation	Day & Night function

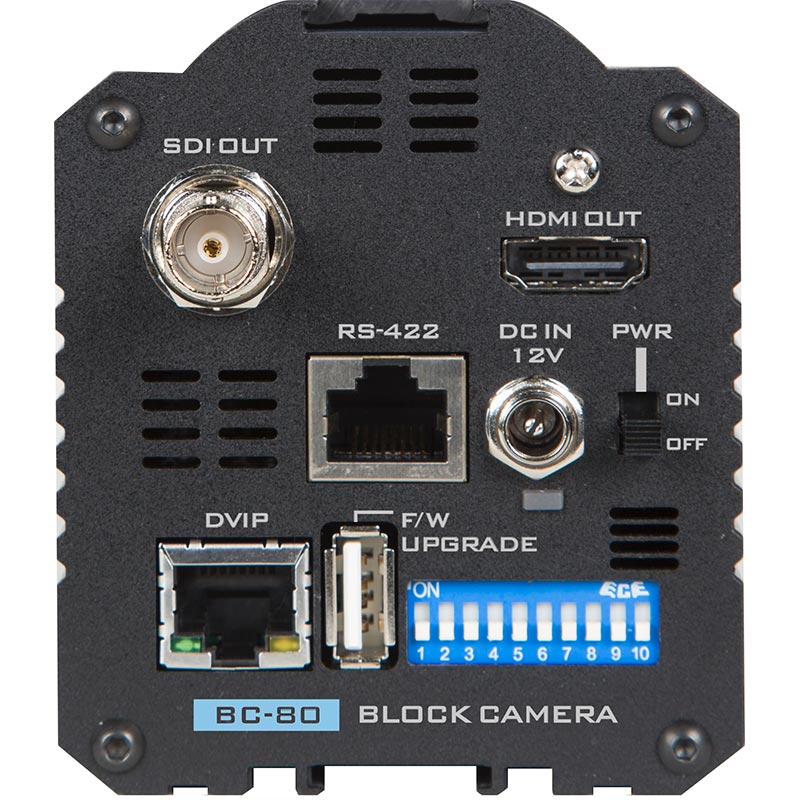

Video Output	HDMI (V1.3) x 1, 3G-SDI x 1
Tally LED	Dual color (Red, Green)
Filter	Yes
RoHS	Compliant
Protocol	VISCA / DVIP Protocol
Remote Control Interface and Transmit Distance	RS-422: Transmit up to 1000m DVIP (RJ45): 100m
F/W Update	USB
IR Control	Yes
Camera Control Unit	RMC-180
Color	dark blue
