DataVideo GO 650 Studio 4 Channel HD Portable Video Production Studio

USD 4,349.00

In stock

Compare
SKU: GO-650 Studio Category:

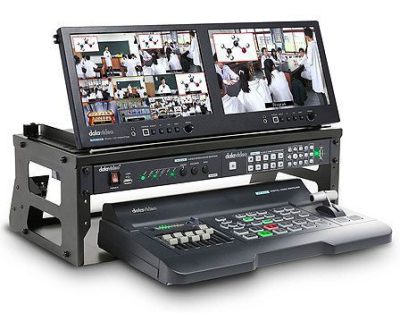

Datavideo GO-650 STUDIO is an all in one kit that comes with an SE-650 video switcher, TLM-102 dual monitor for preview and program, NVS-25 streaming encoder, and HDR-1 H.264 USB recorder all racked, connected, and packed in a rugged hard case. What more do you need other than some cameras, which is where the 2 Camera GoKit comes in. Pair these two GoKits together and you can have a completed video production workfl ow. Because of the portability of these GoKits, they are ideal for various applications such as worship, live events, seminars, school sporting events, and corporate presentations.

SE-650

  • 2x HD-SDI and 2x HDMI inputs
  • Built-in audio mixer
  • Chromakey, Lumakey, DSK, PIP
  • Still store
  • User memories

TLM-102

  • Dual 10.1” LCD monitor
  • SDI and HDMI inputs and outputs
  • Vectorscope and waveform monitor
  • SDI to HDMI cross conversion and vice versa
  • Individual adjustments of brightness, contrast, color saturation, and LED backlight level for each monitor
  • User definable function buttons
  • 4RU rack mount-able

NVS-25

  • H.264 Streaming encoder
  • HD-SDI, HDMI, and CV inputs
  • Compliant with RTMP, RTSP, and HLS protocols
  • Compatible with most CDN including YouTube, UStream, and Facebook Live

HDR-1

  • Standalone H.264 USB recorder
  • Records high quality Mp4 files up to 20Mbps
  • Easy to use front panel control buttons
  • Record/pause feature allows single file recording even with breaks in proceedings

HC-800

  • Heavy duty case made from super strong polypropylene
  • Trunk style with retractable handle and wheels
  • Rubber seals to protect valuable equipment from water & dust
  • Handy pull-out handle and wheels for easy transporting
Video Standard HD
Video Format 1080i 50/59.94/60Hz
720p 50/59.94/60Hz
Video Processing SDI: 4:2:2
HDMI: YUV 4:2:2 10 bit, RGB: 4:4:4
Video Input 2x HD-SDI
2x HDMI
Video output 1x HDMI
Audio input 1x Stereo RCA (L/R)
2x Mono Microphone
De-embedded Digital Audio (2 CH)
Audio output 1x Stereo RCA (L/R)
1x Stereo headphone (Mini Jack with volume control)
Embedded Digital Audio (2 CH)
Embedded audio support embedded 2-CH digital/analogue audio
Chromakey 2
USK 2x USK supports M/E Keyer & PIP
DSK 1 (Logo)
Picture in Picture 1
Logo Insertion 1
Still Store 500
Effects FTB, Cut, 32 Wipe with border
Tally Output 1x D-sub 15pin, dual color
Built-in Audio Mixer Yes
Special Features Stinger Effect
Streaming Encode H.264 Main 3.0/3.1/High4.0
Streaming Video Bitrate 800Kbps~6Mbp
Streaming Video Rate Mode CBR/VBR
Streaming Audio Mode Stereo/Mono
Streaming Audio Bitrate Stereo: 64~384Kbps
Mono: 32~192Kbps
Streaming Recording file format H.264
Streaming Storage USB
Recording Storage Medium USB
Estimated Record Time (min per 10GB) SD 16GB: 4.2Hr (7.5Mbps)~ 10Hr (3Mbps)
HD 16GB: 1.5Hr (20Mbps)~ 2Hr (15Mbps)
How to Retrieve Recorded Content Removable Hard Drive / SSD, transfer data via USB 2.0
Recording Storage File System NTFS
Recorded File Format MP4 (H.264+ AAC)
Weight 16kg
Power DC 12V 83W
  • 1 x SE-650
  • 1 x HDR-1
  • 1 x NVS-25
  • 1 x TLM-102
  • 1 x HC-800
  • 1 x Rack kit
  • 1 x AD Switch DC 12V
  • 1 x AC Cord
  • 3 x HDMI Cable
  • 2 x BNC Cable
  • 1 x Ethernet Cable
