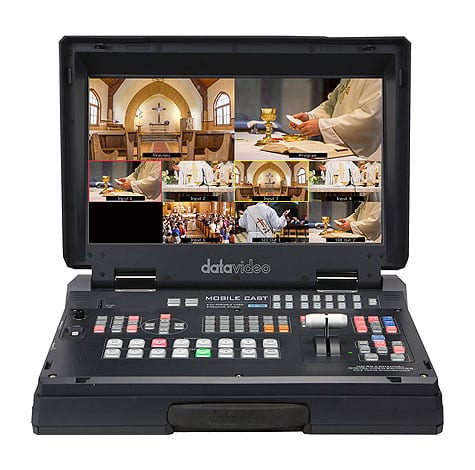

DataVideo HS-1300 6-Channel HD Portable Video Streaming Studio

USD 3,400.00 excl. Tax

Weight12 kg
Add to wishlist
SKU: HS-1300 Category:
Description

DataVideo HS-1300 6-Channel HD Portable Video Streaming Studio

The DataVideo HS-1300 is a cost effective, all in one 6 channel hand-carry mobile studio with built-in streaming and recording capabilities. It has all the same great features of the HS-1200, with the addition of a built-in H.264 encoder for streaming. Therefore, the workflow is simplified because it is no longer necessary to add an external encoder to do streaming. Simply connect the HS-1300 to a network and begin streaming your program to your preferred CDN. In addition to the streaming capability, the HS-1300 can also record the program output to an SD drive.

Because of its lightweight portable design, the HS-1300 is ideal for various applications such as live concert events, seminars, sporting events, and live TV programs that need to mix a variety of video and audio sources. Other features include a 17.3-inch LCD monitor, which displays the multi-view, dual chromakey, DSK, still store, user memories, and PIP. Why lug around multiple pieces of equipment for your productions when you can have an all in one product like the HS-1300? Switch, monitor, stream, and record simultaneously with the HS-1300.

Features
  • Supports 6 video inputs (SDI x 4 + HDMI x 2)
and 3 Video Output: ( SDI x 2 + HDMI x 3)

  • Support different bitrate for recording to SD card and streaming
function
  • One button set up for recording and streaming
  • Broadcast quality H.264 network streaming

  • 2 x XLR Analogue Audio Inputs

  • Flexible Mix/Effects Processor with:
    • 2 Upstream Keyers, supporting Chroma Key & Linear/Luma Key
    • 2 DSK, supporting Linear & Luma Key Modes

    • 1 PIP (assignable to any of the 4 keyers

    • Wipe, Mix & Cut Transitions

    • Full M/E Preview function

  • Any Input (1-6) can be used as a Frame store (Stills Store)

  • XPT (Cross Point Assignment)

  • Tally and GPI output

  • One 17.3-inch with a resolution of 1600×900 dots

  • Easy to use On-screen Menu System for quick setting of parameters
  • Headphone jack for audio monitoring in Program Display Mode (not available in Multi-View Mode)
Specifications
Product Name
6-Channel HD Portable Video Streaming Studio
Video Standard
HD
Video Format
1080i 50/59.94/60Hz
720p 50/59.94/60Hz
Input Routable / Crosspoint
All 6, repeatable
Video Input
4x HD-SDI
2x HDMI
Computer Graphic Interface
2 via HDMI
Down-converted output
N/A
Video output
3x HDMI + 2x SDI assignable:
AUX 1-6, PGM, PVW, PGM Clean or multiview
Audio input
2x Balanced XLR
Audio output
1x Stereo headphone
Embedded audio support
2 ch Audio embedded
Audio Delay Calibration
N/A
A+V switching
N/A
USK
2x USK support Chromakey
DSK
2x DSK support Lumakey & Linear key (Key / Fill)
Picture in Picture
1
Logo Insertion
N/A
Built-in Audio Mixer
selectable audio follow video master gain control
Built-in Monitor Display
17.3” HD TFT LED backlit, 1600×900 pix
Built-in Intercom & Tally
N/A
Streaming Video Encode
H.264 / AVC, Main/ High Profile
Configurable Bit-rate up to 10Mbps
Streaming Audio Encode
AAC-LC
Configurable bit rate range from 32Kbps to 384Kbps
Sample rate: 48KHz, 16bit
Streaming Protocol
TS over TCP/UDP (unicast & multicast)
RTSP over HTTP/TCP/UDP (RTSP Elementary Streaming)
RTMP (Publish)
Streaming Control
Web browser UI for configuration and control Socket commands
Recording file system
FAT, exFAT, NTFS
Recording file format
MP4
Recording Setting Control
Web UI for system configuration and control
Dimension (LxWxH)
455 x 355 x 134 mm
Weight
16.3 Lbs (7.4 Kg), Reinforce Plastic Case
Accessory
CB-22H/23H/46/47/60/61/62
In the Box
  • 1x HS-1300
  • 1x AD Switch DC 12V with AC Cord
  • 1x Thank You Card
