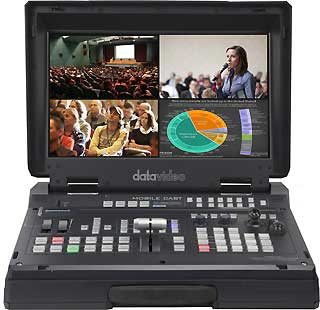

DataVideo HS-1600T MARK II 4-Channel HD/SD HDBaseT Portable Video Streaming Studio

Made for mobility. Made for the web.

The DataVideo HS-1600T MARK II Mark II brings a new level of simplicity to production workflows. You’ll set up faster and easier thanks to its portable “briefcase” design and HDBaseT Technology. And thanks to its built-in H.264 web streaming encoder, you can stream your show to virtually any CDN like YouTube and Facebook in no time.

Variety of video and audio input/output
4 video inputs (RJ-45 x 3 + HDMI x 1) and 4 video (HDMI x 3)+HDBaseT outputs
Audio inputs: XLR Analogue x 2 + RCA Analogue (L/R) x 2

Made with HDBaseT Technology
DataVideo HS-1600T MARK II Camera connections typically require one cable for video, a second cable for power, and a third one for control. However, the HS-1600T Mark II is able to do all of the above using only one ethernet cable for each camera. This increase in flexibility greatly reduces setup time, and now you can mount the camera in challenging locations (like spots without nearby power outlets)

Built-in H.264 recorder for SD cards
The DataVideo HS-1600T MARK II comes with a built-in web-ready recorder. Simply insert your SD card, and you’ll have video files that can be immediately uploaded to the video network of your choice or to your website.

Dual Stream encoder to Facebook Live, YouTube, Twitch, and more
DataVideo HS-1600T MARK II With the built-in H.264 streaming encoder, you can stream your show to two different streaming plateforms virtually any CDN including Facebook, YouTube or Twitch in no time.

Built-in camera control.
The HS-1600T Mark II’s next generation design saves you time, money, and table space with its built-in camera control interface for up to 3 Datavideo PTZ cameras. (Works with PTC-140T and PTC-150TL)

17.3” LED Backlit Monitor
Built-in Monitor Display. 17.3” HD TFT LED backlit monitor with resolution 1920×1080 pix.

Seamlessly compatible with dvCloud
Get the most out of your streaming hardware using DVCloud. The DataVideo HS-1600T MARK II is seamlessly compatible with Datavideo’s DVCloud service.

This subscription service give you the possibility of sending your stream to multiple destinations at the same time without having to have multiple hardware encoders.

You can also record your production on the DVCloud platform in h.264 format. After recording you can directly use this recording to upload it to your favourite content platform.

Direct SRT streaming to dvCloud prevents hickups and lag in your stream, especially when using slow or unreliable internet connections or when streaming large distances (for instance to the other side of the globe). Even if your destination does not support SRT you can still stream SRT to dvCloud and go to the destination in RTMP.

HS-1600T-3C140TM Bundle combines the HS-1600T Portable Switcher (with built-in video streaming and recording) with 3x HDBaseT PTZ cameras (PTC-140T) and included WM-1 camera mounts for placing cameras in high places. In addition, one TLM-700K monitor is included to be used as a confidence monitor.

Note: HS-1600T Requires a Solid Core, Cat -6 Shielded cable for Ethernet connection

Features

Supports up to FHD 1080p
Built-in HDBaseT technology allows control of up to three?PTC-150T?or?PTC-140T?Pan, Tilt, and Zoom cameras, as well as send power to PTC-150Ts by PoE.
Support different bitrate for recording to SD card and streaming function
One button set up for recording and streaming
Broadcast quality H.264 network streaming
Pan, tilt, and zoom with speed control by Joystick
4 video inputs (RJ-45 x 3 + HDMI x 1)
3 video outputs (HDMI x 3)
Audio inputs: XLR Analogue x 2 + RCA Analogue (L/R) x 2
Flexible Mix/Effects: PIP, WIPE, Mix, Fade
Tally Output
One 17.3-inch with a resolution of 1920×1080 dots

Specifications

Special Notes
Video Standard	HD & SD
Video Format	1080p 50/59.94/60Hz 1080i 50/59.94/60Hz 720p 50/59.94/60Hz 576i/p 50Hz 480i/p 59.94Hz
Input Routable / Crosspoint	N/A
Video Inputs	3 x HDBaseT 1 x HDMI
Computer Graphic Interface	1 via HDMI
Down-converted Output	Yes
Video Outputs	2 x HDMI PGM 1 x HDBaseT (RJ-45) 1 x Stream Port (RJ-45)
Audio Inputs	2 x Balanced XLR 1 x Stereo RCA (L/R) De-embedded Digital Audio
Audio Output	1x Stereo headphone
Digital Embedded Audio Support	Input 2 channels Output 2 channels
Audio Delay Calibration	N/A
A+V Switching	N/A
USK	1x USK Lumakey support
DSK	N/A
Picture in Picture	1
Logo Insertion	N/A
Built-in Audio Mixer	4 channels
Built-in Monitor Display	17.3” HD TFT LED Backlit 1920×1080 pixels
Built-in Intercom & Tally	N/A
Streaming Video Encode	H.264 / AVC, Main/ High Profile Configurable Bit-rate up to 10Mbps
Streaming Audio Encode	AAC-LC Configurable bit rate ranging from 32Kbps to 384Kbps Sample rate: 48KHz, 16bit
Streaming Protocol	TS over TCP/UDP (unicast & multicast) RTSP over HTTP/TCP/UDP RTMP/RTMPS (Publish)
Streaming Control	Web UI for system configuration and control
Recording File System	FAT, exFAT, NTFS
Recording File Format	MP4
Recording Setting Control	Web UI for system configuration and control
Dimension (LxWxH)	455 x 355 x 134 mm
Weight	17.2 Lbs (7.8 kg), Reinforce Plastic Case
Power	DC 48V, 4.16A
Operating Temp. Range	0~40 °C
Optional Accessories	CB-60/61/62
Cable Requirement	Requires Solid Core, Cat -6 Shielded cable for Ethernet connection
