Name: DataVideo HS-3200 12-Channel HD Portable Video Streaming Studio
SKU: HS-3200
Price: 10716.00 SGD
Availability: InStock

Description
Features
Specifications
In the Box
Delivery Info
Reviews (0)

Description

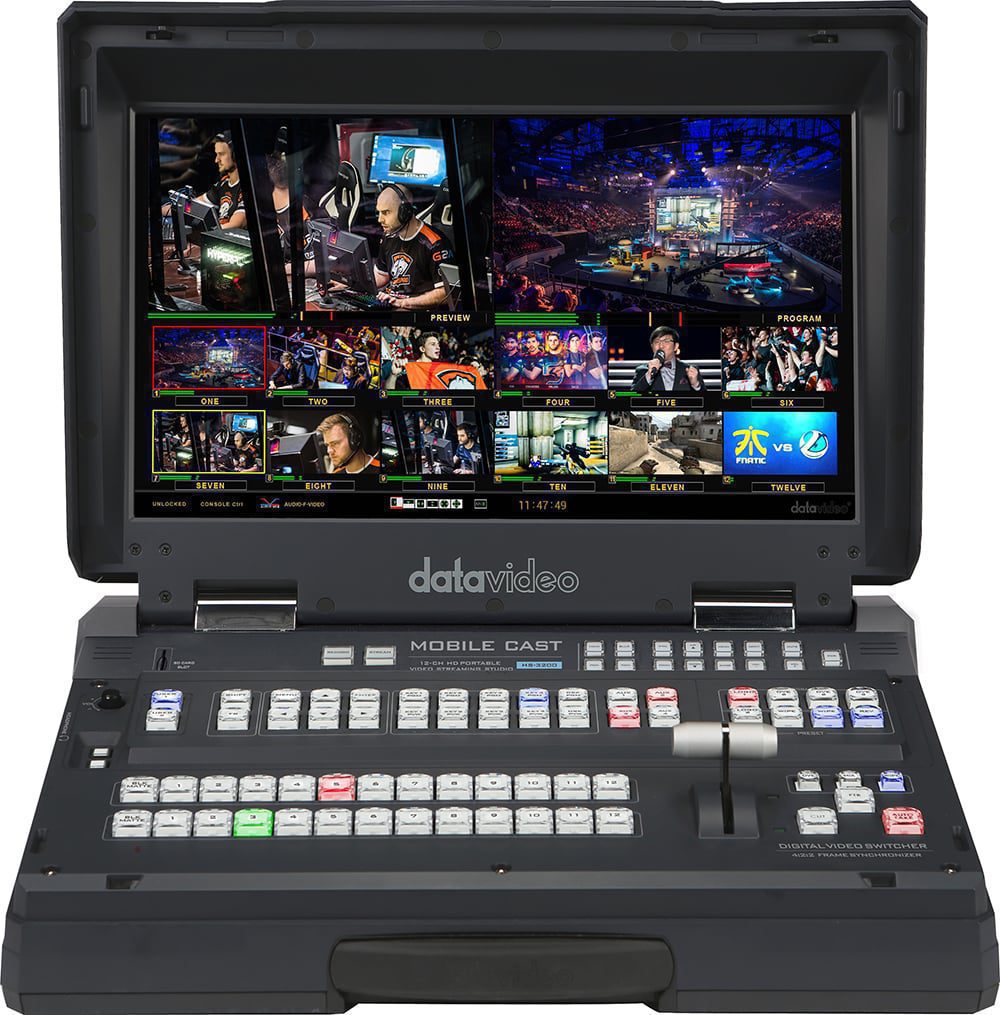

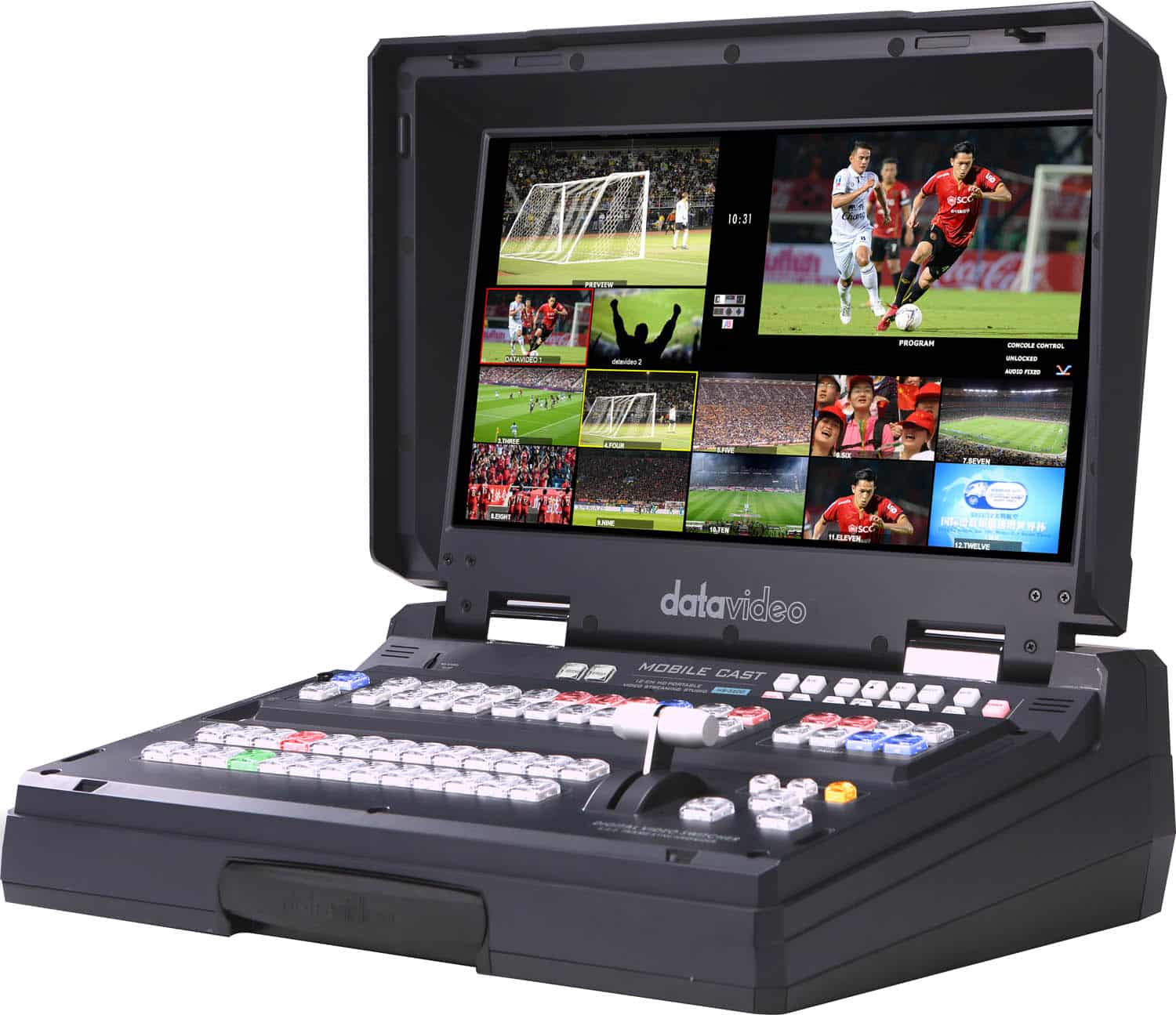

DataVideo HS-3200 12-Channel HD Portable Video Streaming Studio

DataVideo HS-3200 is a 12 channel professional mobile hand carry switcher with real Full 1080p/60 (3G) High Definition support, it features easy-to-use video streaming and recording appliance for professional video producers who need to simultaneously stream a live event and record the master quality version for post-event editing.

With 12 digital inputs including 8 SDI and 4 HDMI inputs with embedded audio, 5 SDI and 4 HDMI outputs for connecting HD recorder, monitor, etc.

HS-3200 is a lightweight, portable and powerful featured mobile studio solution which is designed for live events and TV programs that need to mix a variety of video and audio sources. HS-3200 is also a great value solution for the worship, education and AV market.

DataVideo HS-3200 also has powerful, easy to use effects, including Chroma / Luma Key, DSK, PIP, DVE, Wipe Generator, Still stores, logo insertion.

Advanced features include a 17.3-inch Full HD 1080p video monitor, which displays the multi-view, the Multi-view includes all the input sources, as well as preview and program.

Features

Full native 1080p (3G) operation
Simultaneous Live Streaming & Recording
Broadcast quality HD / SD H.264 network streaming
Support different bitrate for recording and streaming
12 Total Video input interfaces (8 x SDI, 4 x HDMI)
9 Video Outputs: 5xSDI+4xHDMI
4 Upstream Keyers, supporting Chroma key & Linear / Luma key
8 PIP (4 flex source included)
2 DSK, supporting Linear & Luma Key Modes
2 Logo insertion (Animation logo, X/Y size)
Wipe, Mix, DVE, Cut and Stinger Transitions
32 Wipe patterns including Circle & Heart, and Borders & Softness Control
Clip player (150 Frames) Stinger Transitions function
Any Input (1-12) can be used as a Frame store (Stills Store)
Support XPT (Cross Point Assignment)
4 x XLR Analogue Audio Inputs
2 x XLR De-Embedded Analogue Audio Outputs
Tally output
USB Port for FW upgrade
One 17.3-inch with a resolution of 1920×1080 dots

Specifications

Video Standard	Full HD
Video Format	1080p 50/59.94/60Hz 1080i 50/59.94/60Hz 720p 50/59.94/60Hz
Input Routable / Crosspoint	All 12, repeatable
Video Input	8x SDI, 4x HDMI
Computer Graphic Interface	4 via HDMI
Down-converted output	N/A
Video Output	5x SDI assignable: Multiview, PGM, PVW, PG + DSK, Clean PGM, Clean PVW, Input 1-12. 4x HDMI assignable: Multiview, PGM, PVW, PG + DSK, Clean PGM, Clean PVW, Input 1-12.
Audio Input	4x Balanced XLR
Audio Output	2x Balanced XLR
Embedded Audio Support	Input up to 16 channels, Output 4 channels
Audio Delay Calibration	Up to 16 frames
A+V switching	Yes
USK	4
DSK	2x DSK support Lumakey & Linear key (Key / Fill)
Picture in Picture	8 (4x PIP, 4x Flex Source)
Logo Insertion	2
Built-in Audio Mixer	N/A
Built-in Monitor Display	17.3” HD TFT LED backlit, 1920×1080 pix
Built-in Intercom & Tally	N/A
Streaming Video Encode	H.264 / AVC, Main/ High Profile Configurable Bit-rate up to 10Mbps
Streaming Audio Encode	AAC-LC Configurable bit rate range from 32Kbps to 384Kbps Sample rate: 48KHz, 16bit
Streaming Protocol	TS over TCP/UDP (unicast & multicast) RTSP over HTTP/TCP/UDP (RTSP Elementary Streaming) RTMP (Publish)
Streaming Control	Web browser UI for configuration and control Socket commands
Recording File System	FAT, exFAT, NTFS
Recording File Format	MP4
Recording Setting Control	Web UI for system configuration and control
Dimension (LxWxH)	455 x 355 x 134 mm
Weight	17.8 Lbs (8.1 Kg), Reinforce Plastic Case

In the Box

1x HS-3200
1x AD switch DC 12V with AC Cord
1x Thank You Card
