DataVideo KMU-200 4K Multicamera Touchscreen Switcher with Streaming and Recording

SGD 4,753.00 excl. Tax

Product Highlights:

  • Horizontal and Vertical Video Streaming and Recording
  • Producing full HD virtual multi-camera video
  • Supports 4K UHD Resolution Input
  • Easy control of virtual cameras
  • Record in H.264 format on SD card
  • Additional HDMI Input with Loop Out
  • Supports audio embedding for your video
  • Stream to 25 Platforms Simultaneously
Weight 8 kg
SKU: KMU-200 Category:
Description
Click to rate this post!
[Total: 0 Average: 0]

DataVideo KMU-200 4K Multicamera Touchscreen Switcher with Streaming and Recording

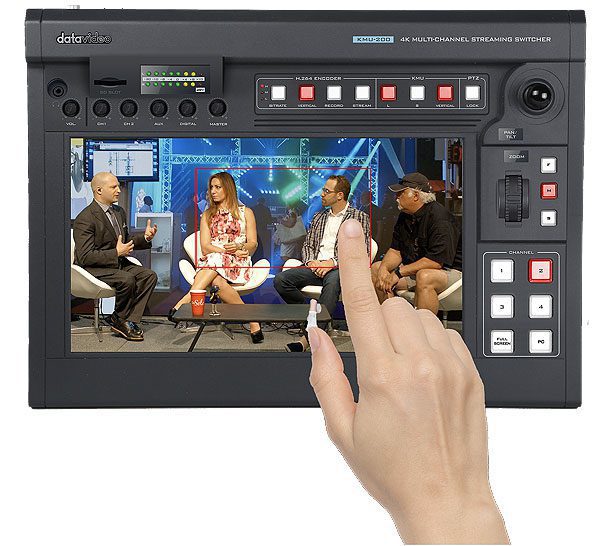

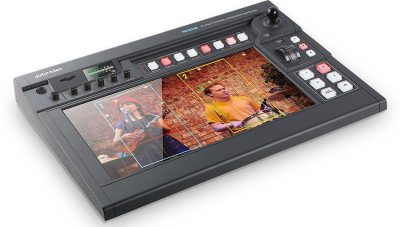

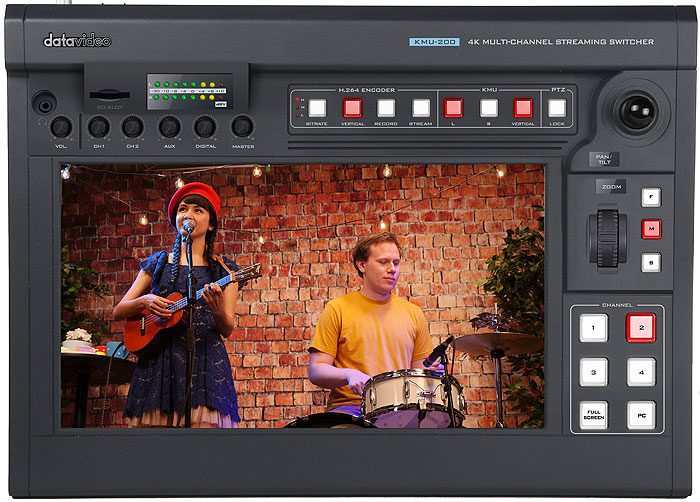

KMU-200 is an all-in-one solution for producing full HD virtual multi-camera video using a single 4K camera. KMU-200 uses a large touch screen for operation using similar gestures used on any tablet or phone. By pinching and swiping, you control up to 4 cutouts of a 4K image and as if the footages comes from 4 different cameras. Use hardware control to precisely position the cutouts like a regular PTZ camera.

KMU-200 features a dual streaming encoder making it possible to go live on all the well known streaming platforms directly from the device. Easily record on SD cards and you can directly bring the recording to your favorite editing suite. KMU-200 allows you to produce virtual multi-camera videos easily without any help.

Supports 4K UHD Resolution Input

The KMU-200 is perfect for interview application with small panels or smaller houses of worship.  With Social distancing becoming commonplace, the KMU-200 reduces the amount of cameras needed to get your production streamed live.

Easy control of virtual cameras

Users can easily control the video cutout sources by using the touch screen and well known gestures such as pinching and swiping. The joystick, zoom knob and hardware buttons can also be used alternatively.

Create your Horizontal Video

Make your live-streaming look professional with only six buttons to create four virtual camera footage and six different shots. When using the KMU-200, you can switch between four different virtual cameras, the full shot and the extra HDMI input. Operating the unit is very easy this way.

Create your Vertical Video

Easily switch between horizontal and vertical mode/video production mode
Vertical video production is in favour of those who prefer to watch the videos on the vertical mode. You can simply alter this mode by rotating the screen. KMU-200 is natively able to produce vertical video by pressing a single button, effectively converting the whole unit from 16:9 to 9:16 production.

Additional HDMI Input with Loop Out

The additional HDMI input allows the option to show an additional camera angle or to connect a computer’s display-output to the KMU-200 for presentation software.

The HDMI loop out allows for production directors to have direct monitoring of the presentation input. All HDMI inputs have built-in strain relief bars to make sure nothing is left to chance during your production, by reducing the chances of cables becoming unplugged

It supports audio embedding for your video

Four-channel embedded audio mixer with RCA and XLR inputs, and also provide you the audio volume adjustment.

Vertical and Dual streaming to two different platforms

Live streaming video directly from the KMU-200 is easier than ever. Just simply connect the KMU-200 to your local network, connect your PC to the same network and configure the streaming encoder. After that you can simply start streaming by pressing the stream button.
The built-in streaming encoder remarkably reduces, the need for different procedures and equipments.

Read Our Blog:

Popular Professional Audio/Video Switchers & Mixers for Multimedia Productions

Specifications
Click to rate this post!
[Total: 0 Average: 0]
Video Standard UHD & HD
Video Format Input:
3840x2160p 23.98/24/25/29.97/30/50/59.94/60
1080p 50/59.94/60
Output:
1080p 50/59.94/60
720p 50/59.94/60
Video Processing 4:4:4 / 4:2:2 / 4:2:0
Video Input 1x HDMI 2.0
1x HDMI 1.4 with Loop through
Video Output 2x HDMI 1.4
Support Video Output Resolution 1920 x 1080p 50/59.94/60
1280 x 720p 50/59.94/60
Multiview Out N/A
Multiview Mode N/A
Streaming Encode H.264/AVC, Main/High Profile
Streaming Video Bitrate Record Only: Up to 16Mbps (1080p50/60)
Stream Only: Up to 10Mbps (1080p50/60), dual stream
Record+Stream: 36Mbps (1080p50/60)
Streaming Video Rate Mode CBR
Streaming Audio Mode Stereo/Mono
Streaming Audio Bitrate Stereo: 64~384Kbps
Mono: 32~192Kbps
Streaming Protocols TS over TCP/UDP (unicast & multicast)
RTSP over HTTP/TCP/UDP (RTSP Elementary Streaming)
RTMP/RTMPS (Publish)
HLS
SRT
Network Interface 1x RJ45 (10/100Mbps Ethernet)
Recording Storage Medium SD Card
Recording Storage File System MP4
Built-in Audio Mixer Yes, 4 channels
Audio Input 2x XLR(Mic)
2x RCA
Audio Output 2x Unbalanced RCA
Audio Sampling N/A
Reference Input N/A
Control Interface N/A
Preview Display 14? Capacitive Touch LCD
Controller N/A
Dimension (LxWxH) 438 x 331 x 114 mm
Weight 4.3 kg
Power Supply DC 12V, 52W
Operating Temp. Range 0~40 ?C
In The Box
Click to rate this post!
[Total: 0 Average: 0]
  • 1 x KMU-200 Main Unit
  • 1 x AD Switch DC 12V with AC Cord
  • 1 x Thank You Card
