Datavideo PTC-140 HD PTZ Camera

SGD 1,405.62 excl. Tax

Product Highlights:

  • Stunning Full HD Resolution
  • Simultaneous Outputs
  • 20x Optical Zoom, and 10x Digital Zoom
  • Advanced 2D/3D noise reduction function
  • Wide 54° Field of View
  • Built-in Streaming Encoder
  • Remote control and preview by web user interface
Weight 3.5 kg
SKU: PTC-140 Category:
Description
Click to rate this post!
[Total: 3 Average: 4.7]

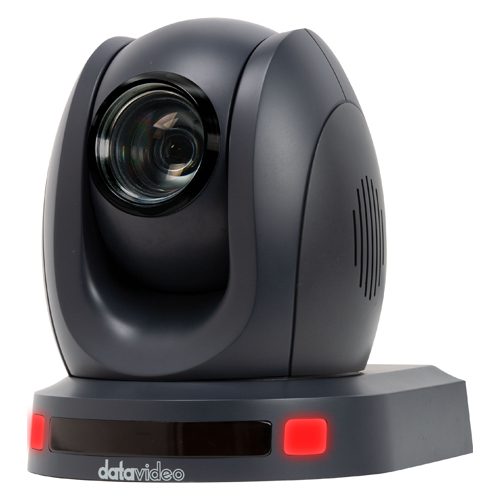

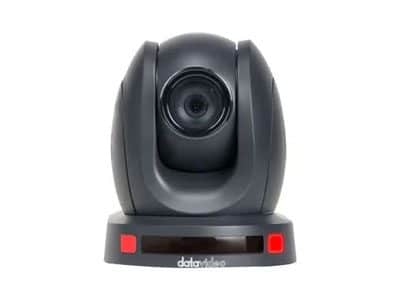

Datavideo PTC-140 PTZ Camera

Datavideo PTC-140 is a cost-effective SDI/HDMI PTZ camera, which features 1/2.8 inch CMOS sensor, 1920x1080px Full HD resolution 20x optical zoom, 10 digital zoom allows you to mount it near or far and still get great, sharp shots.

The PTC-140’s onboard streaming encoder can encode up to 2 simultaneous streams to any cloud service, including Datavideo’s own DVS-200. It supports H.264 /H.265 video compression and dual stream output. Advanced 2D/3D noise reduction function supports advanced digital noise reduction, even in less-than-perfect lighting conditions. The PTC-140 can use RMC-300C and RMC-180 as the controllers for distant controlling.

Stunning Full HD Resolution

Experience breathtaking Full HD resolution with the Datavideo PTZ PTC-140 camera. Boasting a 1/2.8-inch CMOS sensor, this camera delivers a crystal-clear 1920x1080px resolution at a smooth 60 frames per second.

Simultaneous Outputs

Enhance your workflow flexibility with the PTC-140’s simultaneous outputs, allowing you to connect the camera to multiple devices concurrently. All outputs remain active, ensuring seamless integration into your production setup.

20x Optical Zoom, 10x Digital Zoom

Zoom in with confidence using the PTC-140’s powerful 20x optical zoom and 10x digital zoom. Whether mounted near or far, this camera captures sharp, stunning shots with ease.

Advanced 2D/3D noise reduction function

Navigate challenging lighting conditions effortlessly with the advanced 2D/3D noise reduction function, ensuring clear and smooth images in any environment.

Wide 54° Field of View

The wide 54° Field of View further enhances versatility, effortlessly capturing all the scenes in your production space.

H.264/H.265 video compression for streaming

For seamless streaming capabilities, the PTC-140 features H.264/H.265 video compression. Its built-in streaming encoder allows you to encode up to 2 simultaneous streams, effortlessly connecting to any cloud service for a streamlined broadcasting experience.

Simple multi-camera control at your fingertips

Take control of multiple Datavideo PTC-140 cameras effortlessly with the RMC-180. Its ergonomic joystick and tactile button layout make setup and control a breeze, supporting up to four cameras for live video production. Elevate your production quality with the Datavideo PTZ PTC-140, where stunning resolution, versatile zoom capabilities, and user-friendly controls come together for an unparalleled video production experience.

Alternative product AVMATRIX PTZ 1271
SS-Add-C-17Jan24
Specifications
Click to rate this post!
[Total: 3 Average: 4.7]
Model Name
PTC-140
Video Format
1080p 60/59.94/50/30/29.97/25
1080i 60/59.94/50
720p 60/50/30/25/59.94/29.97
Image Sensor
1/2.8 inch high quality HD CMOS sensor
Effective Pixels
2.07 Mega pixels
S/N Ratio
>55dB
Min. Illumination
0.5Lux (F1.8, AGC ON)
Electronic Shutter
Auto/ Manual
Zoom Ratio
20 x Optical Zoom
10 x Digital Zoom
Gamma Control
Off/ Normal
Iris Control
Auto/ Manual
Digital Noise Reductions
Yes
Language
English, Simplified Chinese
White Balance
3000K/ 4000K/ 5000K/ 6500K
Auto / Manual/ One Push
AGC / Gain Control
Auto/ Manual
Mirror / Flip Image
Yes
Focus Mode
Auto / Manual
Panning/Tilting Range
Pan: 340?
Tilt: +90? to -30?
Panning/Tilting Speed
Pan: 0.1~60?/sec
Tilt: 0.1~30?/sec
Presets
255 Position
Focal Length/ Aperture
f?5.2 (WIDE) ?98 (TELE) mm
F1.6 to F3.5
Angle of View
Approx. 54.7? (WIDE) / 3.3? (TELE)
Image Compensation
Backlight Compensation
Video Compensation Format
H.264, H.265, Dual Stream Output

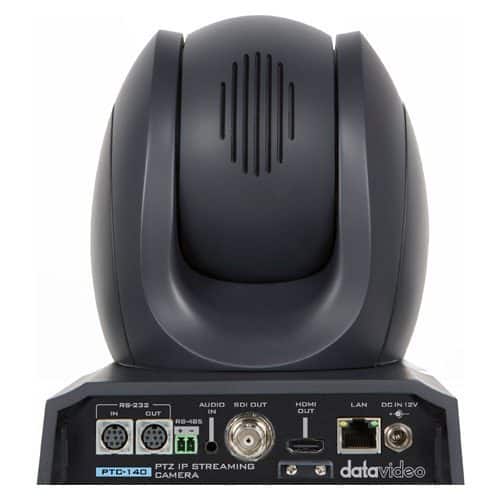

Video Output
SDI x 1
HDMI x 1
Audio Input
3.5mm Line In
Audio Compression Format
AAC/ MP3/ PCM Audio Compression
Tally LED
Dual Color (Red, Green)
RoHS
Compliant
Filter
M52.0 x 0.75 Thread with UV Protection
Control Protocol
VISCA/ Pelco-D/ Pelco-P
Remote Control
RJ-45: for IP control (DVIP)
RS-232: Mini DIN 8-pin (IN) Mini DIN 8-pin (OUT)
RS-485
F/W Update
Ethernet
IR Control
Yes
Camera Control Unit
RMC-180, RMC-300C
Power
DC 12V 12W
Tripod Mount
1/4-20 UNC
Option
WM-1
Color
Dark Blue
Dimension
156(L) x 182(W) x 186(H) mm
Weight
1.62 Kg
Operating Temp.
0~50 ?C
In The Box
Click to rate this post!
[Total: 3 Average: 4.7]
  • 1x PTC-140 Unit
  • 1x IR remote controller
  • 1x Ceiling mount bracket?A
  • 1x Ceiling mount bracket?B
  • 6x Ceiling mount bracket screw M3*4mm
  • 1x DC 12V Power Adaptor
  • 1x Power Cord
  • 1x Tightrope
  • 1x Thank You Card
