DataVideo PTC-140NDI PTZ Camera with 20x Optical Zoom
SGD 1,401.40 excl. Tax
Product Highlights:
- Excellent Full HD Video Quality
- Advanced 2D/3D noise reduction function
- Supports H.264/H.265 Video Compression
- Wide 54° Field of View
- Support RTSP, RTMPS protocols
- Supports PoE for easy installation
- Available in Dark blue and White Colors
| Weight | 4 kg |
|---|
Description
Click to rate this post!
[Total: 3 Average: 5]

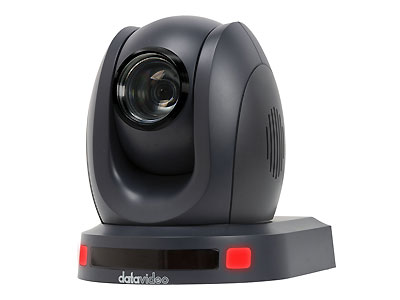

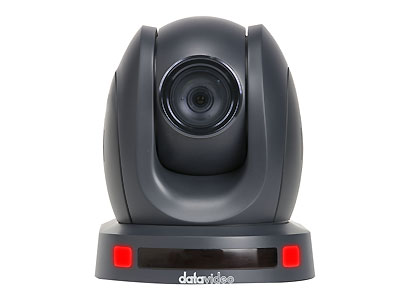

Datavideo PTC-140NDI PTZ Camera Broadcast Quality 1/2.8-Inch CMOS Sensor
Datavideo PTC-140NDI Resolution is up to 1920×1080 with a frame rate of up to 60fps.
PTC-140NDI provides Excellent full-HD video Quality
The PTC-140NDI is a low-cost SDI/HDMI PTZ camera featuring NDI/HX with 20x optical zoom and 10x digital zoom. The PTC-140NDI is Datavideo’s first NDI camera and also supports H.264/H.265 video codec and dual stream outputs.
PTC-140NDI Features:
- 1/2.8 inch CMOS sensor. The maximum supported resolution is 1920x1080p with up to 60fps frame rate.
- Low-noise CMOS effectively ensures a high SNR of camera video. Advanced 2D/3D noise reduction technology is also used to further reduce the noise while ensuring image sharpness.
- Audio Input Interface
- Supports AAC, MP3, and G.711A audio coding with sampling frequencies of 16000, 32000, 44100, and 48000.
- Supports H.264/H.265 video compressions of resolution up to 1920×1080 with a frame rate up to 60fps (single channel) or 1920x1080p with a frame rate up to 30fps (dual channel), as well as AAC, MP3, and G.711A audio compressions.
- Supports multiple network protocols, such as RTSP and RTMP, allowing you to easily link to any streaming media servers.
- Supports Simultaneous Video Outputs via NDI® | HX, 3G SDI, and HDMI interfaces with a maximum supported resolution of 1080p60.
Low Noise CMOS Ensures High SNR of Camera Video
Advanced 2D/3D noise reduction technology is used to further reduce the noise while ensuring image sharpness.

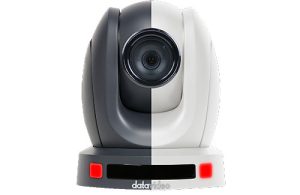

Dark Blue and White Color Models
DataVideo PTC-140NDI is available in two colors, dark blue and white. Suitable for broadcast, worship, video conferencing, etc.
PTC-140NDI Supports H.264/H.265 Video Compression
Support compression of resolution up to 1920×1080 with frame up to 60fps and 2 channel 1920x1080p with 30fps compression. AAC, MP3, and PCM audio compression are also supported.
PTC-140NDI Supports Multiple Network Protocol
Support RTSP and RTMPS protocols, easy to stream directly to your desired CDN streaming platform.

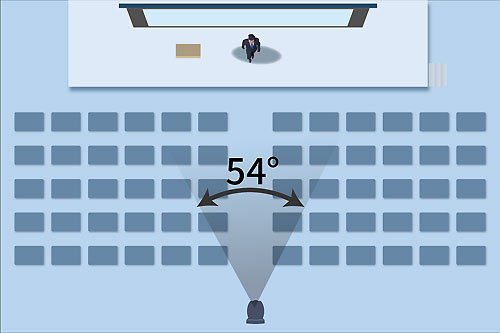

PTC-140NDI provides Wide 54° Field of View
The PTC-140NDI provides a wide Field of View of 54°, easily shooting all the scenes in the field.

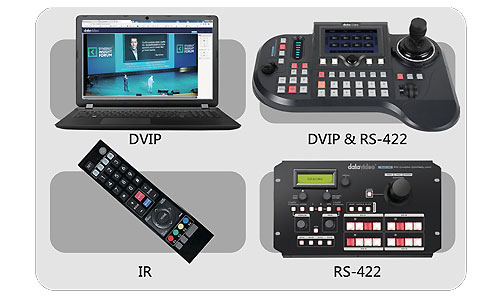

Available to Control Through Many Ways
Control real-time pan, tilt, and zoom camera movements with Datavideo RMC-300A and 180.

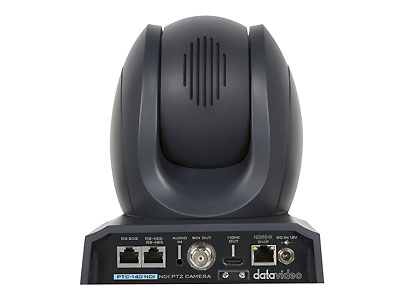

RS-232, RS-422, and RS-485 ports to use DVIP and VISCA commands to integrate with larger control systems.
One Ethernet Cable with NDI® | HX Technology
There is no need for multiple cables and a complicated setup. The single-wire concept helps you to transfer video, audio, power, tally, and control over only one Ethernet cable.
Power Over Ethernet (PoE) functionality allows you to transmit all the information and power over only one cable.
NDI Virtual Input
Present Datavideo PTC-140NDI as the video input source to video streaming applications Skype, GoToMeeting, WebEx, Zoom, and more.
Compliant with the ONVIF Profile S Standard
The PTC-140 series cameras are compliant with the ONVIF Profile S standard, ensuring seamless integration and interoperability in network video systems.
Tally Light
Green and red lights tally to show the preview and program status for broadcast applications.
Seamlessly compatible with DVCloud
Get the most out of your streaming hardware using DVCloud. The Datavideo PTC-140NDI is seamlessly compatible with Data Video’s DVCloud service.
With the help of this subscription service, you can distribute your stream to multiple locations at once without the need for additional hardware encoders.
You can also record your production on the DVCloud platform in h.264 formats. After recording, you can directly use this recording to upload it to your favorite content platform.
Power over Ethernet
The PTC-140NDI supports PoE for easy installation. No need to find local power outlets or hire an electrician to install outlets wherever you want to mount your camera. Simply run a single CAT 6 cable to power your PTC-140NDI.

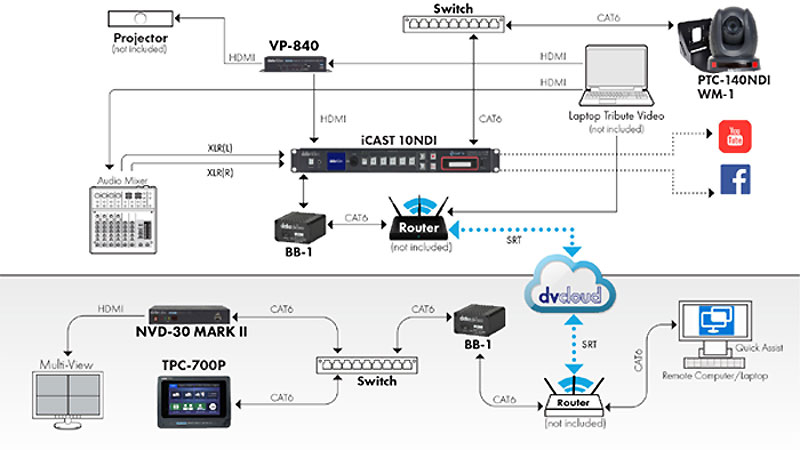

Build a reliable SRT live streaming workflow with all Datavideo products
Datavideo’s wide range of encoders, cameras, and hand-carry switchers are fully supported by SRT and dvCloud. Datavideo encoders and DVCloud provide reliable streams over unreliable networks. By using a Datavideo encoder and dvCloud together, you can utilize SRT (instead of RTMP) on the initial problematic connection or “First Mile.” After your video stream reaches dvCloud, you can depend on dvCloud’s reliable, high-bandwidth network to deliver the stream to your favorite destinations, like Facebook and YouTube.
To view more Datavideo Products
Learn more about the related products
Other Site:
Indhu-MC-18/Oct24
Specifications
Click to rate this post!
[Total: 3 Average: 5]
| Video format | 1080p 60/59.94/50/30/29.97/25 1080i 60/59.94/50 720p 60/59.94/50 |
| Image Sensor | 1/2.8 inch high quality HD CMOS sensor |
| Effective Pixels (approx.) | 2.07 Mega pixels |
| S/N Ratio | >55dB |
| Min. Illumination | 0.5Lux (F1.8, AGC ON) |
| Electronic Shutter | Auto / Manual |
| Zoom Ratio | 20x Optical Zoom, 10x Digital Zoom |
| Gamma Control | Off / Normal |
| Iris Control | Auto / Manual |
| Digital Noise Reductions | Yes |
| On-Screen Display (OSD) | English, Simplified Chinese |
| White Balance | Auto, Manual, One Push, 3000K, 4000K, 5000K, 6500K |
| AGC / Gain Control | Auto / Manual |
| Mirror / Flip Image | Yes |
| Focus Mode | Auto / Manual |
| Panning / Tilting Range | Pan: 340? Tilt: +90? to ?-30? |
| Panning / Tilting Speed | Pan: 0.1~60?/sec Tilt: 0.1~30?/sec |
| Preset | 255 Positions |
| Focal Length | f=5.2 (wide) to 98 (tele) mm F1.6 to F3.5 |
| Field of View (Horizontal, Wide) | Approx. 54.7? (WIDE END) / 3.3? (TELE END) |
| Image Compensation | Backlight Compensation |
| Video Output | HDMI x 1 SDI x 1 |
| Audio Input | 3.5mm Line in |
| Tally LED | Dual colors (Red, Green) |
| Lens Filter | M52.0 x 0.75 Thread with UV Protection |
| Control Protocol | VISCA/Pelco-D/Pelco-P; Baud Rate:115200/38400/9600/4800/2400bps DVIP, NDI? |
| Remote Control Interface and Transmit Distance | LAN: for IP control (DVIP / NDI?) RS-232, RS-422, RS-485 |
| Video Compression Format | H.264, H.265, Dual stream output |
| Audio Compression Format | AAC/MP3/PCM Audio compression |
| HD IP Interface | 100M IP port(100BASE-TX); Support DVIP and NDI? |
| Streaming Protocols | TCP/IP, HTTP, RTSP, RTMP, DHCP, Multicast, etc |
| F/W Update | Ethernet |
| IR Control | Yes |
| Camera Control Unit | RMC-180/RMC-300C/RMC-300A |
| Tripod Mount | 1/4-20 UNC |
| Optional Accessories | WM-1/ WM-10/WM-11 |
| Color | Dark Blue/White |
| Dimension (LxWxH) | 156 x 184 x 186 mm |
| Weight | 1.6 kg |
| Operating Temp. Range | 0~40 ?C |
| Power | DC 12V 12W |
