DataVideo PTC-140T HDBaseT PTZ Camera

SGD 1,356.32 excl. Tax

Product Highlights:

  • Stunning Full HD Resolution
  • 20x Optical Zoom, and 10x Digital Zoom
  • Advanced 2D/3D noise reduction function
  • Single cable transmission by HDBaseT technology
  • Wide 54° Field of View
  • H.264/H.265 video compression for streaming
  • Build a reliable SRT live streaming



Weight 3.5 kg
SKU: PTC-140T Category:
Description
Click to rate this post!
[Total: 1 Average: 5]

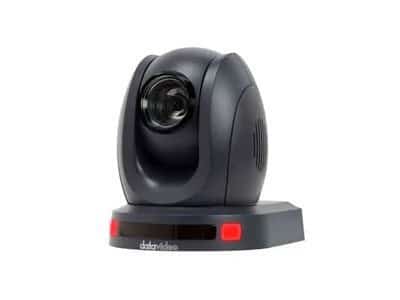

DataVideo PTC-140T HDBaseT PTZ Camera for HS-1500T and HS-1600T

The DataVideo PTC-140T features a 1/2.8 inch CMOS sensor, 1920x1080px Stunning Full HD resolution, 60fps.

One Cable Solution

DataVideo PTC-140T

HDBaseT allows you to transmit power, HD video, control, and tally over a single Ethernet cable.

20x Optical Zoom, 10x Digital Zoom

DataVideo PTC-140T - ZOOM

The DataVideo PTC-140T’s 20x optical zoom and 10x digital zoom allow you to mount it near or far and still get great, sharp shots.

Advanced 2D/3D noise reduction function

DataVideo PTC-140T 2D/3D noise reduction

It also supports advanced digital noise reduction, even in less-than-perfect lighting conditions can shoot clear and smooth images.

Single cable transmission by HDBaseT technology

Based on HDBaseT technology, all signals, power, and control data travel through a single CAT6 (?network cable?) and can reach a distance up to 100 meters away.

H.264/H.265 video compression for streaming

With an integrated streaming encoder, you can send up to two streams to any cloud service at the same time.

Simple multi-camera control at your fingertips

DataVideo PTC-140T Simple multi-camera control

With its ergonomic joystick and tactile button layout, the RMC-180 makes it easy to set up and control up to four Datavideo PTC-140T cameras for any live video production.

RMC-300C can control up to 24 PTC-140T cameras

Additionally, It Works together with an iPad or Android tablet to control up to 24 Datavideo PTC-140T cameras.

Build a reliable SRT live streaming workflow with all Datavideo products

Its also wide range of encoders, cameras, and hand-carry switchers that are fully supported by SRT and dvCloud. Datavideo encoders and dvCloud provide reliable streams over unreliable networks.

To use SRT (instead of RTMP) on the “First Mile,” the problematic initial connection, you must use a Datavideo encoder and dvCloud together.

After that, your video stream has reached dvCloud, you can rely on its dependable, high-bandwidth network to send it to your favorite websites, such as Facebook and YouTube.

Learn more about the related products

PTC-140NDI

PTC-140 HD

PTC-280

PTC-280NDI

PTC-300

PTC-300NDI

Another Website

PTC-140T

Specifications
Click to rate this post!
[Total: 1 Average: 5]
Video format
1080p 60/59.94/50/30/29.97/25
1080i 60/59.94/50
720p 60/59.94/50
Image Sensor
1/2.8 inch high quality HD CMOS sensor
Effective Pixels (approx.)
2.07 Mega pixels
S/N Ratio
>55dB
Min. Illumination
0.5Lux (F1.8, AGC ON)
Electronic Shutter
Auto / Manual
Zoom Ratio
20x Optical Zoom, 10x Digital Zoom
Gamma Control
Off / Normal
Iris Control
Auto / Manual
Digital Noise Reductions
Yes
White Balance
Auto, Manual, One Push, 3000K, 4000K, 5000K, 6500K
AGC / Gain Control
Auto / Manual
Mirror / Flip Image
Yes
Focus Mode
Auto / Manual
Panning / Tilting Range
Pan: 340° , Tilt: +90° to -30°
Panning / Tilting Speed
Pan: 0.1~60°/sec
Tilt: 0.1~30°/sec
Preset
255 Position
Focal Length
f=5.2 (wide) to 98 (tele) mm
F1.6 to F3.5
Field of View (Horizontal, Wide)
Approx. 54.7° (WIDE END) / 3.3° (TELE END)
Image Compensation
Backlight Compensation
Video Output
HDBaseT (PoE) x1
RJ-45 x1
Audio Input
Line In (IP Stream Output)
Tally LED
Dual color (Red, Green)
Filter
M52.0 x 0.75 Thread with UV Protection
Protocol
VISCA, DVIP
Remote Control Interface and Transmit Distance
RS-232
Lan (RJ-45)
HDBaseT (RJ-45)/ DVIP on Receiver Box: Transmit up to 100m
Video Compression Format
H.264, H.265, Dual stream output
Audio Compression Format
AAC/MP3/PCM Audio compression
HD IP Interface
100M IP port(100BASE-TX); Support DVIP
Network Protocol
RTSP, RTMP
F/W Update
Ethernet
IR Control
Yes
Camera Control Unit
HS-1500T/HS-1600T/RMC-180/RMC-300C
Tripod Mount
1/4-20 UNC
Color
Dark Blue/White
Dimension (LxWxH)
156 x 182 x 186 mm
Weight
1.6 kg
Operating Temp. Range
0~40 °C
Power
DC 12V 12W
