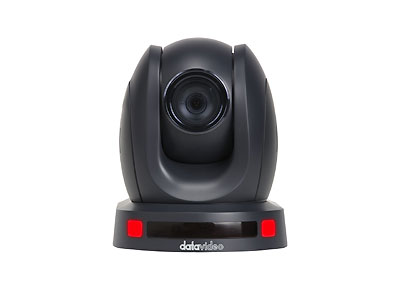

Datavideo PTC-145 HD Tracking PTZ Camera
SGD 1,764.00 excl. Tax
Datavideo PTC-145 Stunning Full HD Resolution with Auto Tracking
Introducing the Datavideo PTC-145 a versatile PTZ camera designed for enhanced visual experiences. The 1/2.8” CMOS sensor delivers outstanding image quality with 20x optical zoom and 8x digital zoom. Offering HDMI, 3G-SDI, and streaming outputs, it connects to various devices with ease. Equipped with line-in and 3.5mm microphone inputs for exceptional audio quality.
This camera features one-click AI Auto Tracking, enabling smooth camera movements without a dedicated operator. Simultaneous streaming to two platforms is effortless. The PTC-145 includes integrated NDI control functionality, providing enhanced flexibility and efficiency for modern live production environments.
Available in stylish dark blue or white options, it complements indoor design preferences. Elevate your visual excellence with the PTC-145 camera.
Simultaneous Outputs
For added flexibility in your workflow, connect your PTC-145 to multiple devices simultaneously using its versatile output connection options: HDMI, SDI, and RJ-45 PoE. All of these output options can be active at the same time, ensuring seamless integration into your setup.
20x Optical Zoom, 8x Digital Zoom
The PTC-145’s 20x optical zoom and 8x digital zoom allow you to mount it near or far and still get great, sharp shots.
Advanced 3D Noise Reduction Function
The PTC-145 supports advanced digital noise reduction technology, which enables it to capture clear and smooth images even in less-than-perfect lighting conditions. This remarkable feature ensures that your footage remains crisp and vibrant, regardless of the lighting challenges you may encounter.
Quick Access to Camera’s Auto Tracking
You will be granted direct access to Auto Tracking via various external controllers such as the supplied RMC-1AT PTZ remote controller and RMC-300A DVIP controller, PTC View Assist App, and the TPC-700, etc. You can choose a suitable controller according to your needs.
In addition to camera controllers, you can also easily enable auto-tracking on smart switchers, including iCAST mini, SHOWCAST 100, etc.
Custom Auto Object Tracking
If you are filming multiple people, you can designate a person for auto-tracking. Once linked to the camera, only the designated person will be tracked, avoiding interferences such as the desks, people coming back and forth, large objects, etc.
Smart PTZ Speed Adaptation
The integrated PID algorithm is able to detect the movement speed of the identified object and automatically adjust the camera’s corresponding pan, tilt, and zoom speeds in such a way that the lens movement will be smooth, avoiding common camera lens movement problems like jerky movements or unpredicted halts.
Talent Position: Center / Left Side / Right Side
The positioning of talent depends on the videographer’s creativity and intent rather than strict rules. Different positions can convey various emotions, messages, or visual effects. A centered composition provides a sense of stability and balance, suitable for scenes that require highlighting the main subject. Videographers may also place the talent on the left third or right third of the frame, leaving adequate space in the foreground to showcase the talent’s sight direction or potential future possibilities.
Quick Selection of Full Body / Half Body / Close-up
All of the PTC-145 camera series includes an RMC-1AT controller. Users can quickly select full-body, half-body, and close-up framing, making it easy to change the shooting scene and framing requirements.
S-Shaped Speed Curve
The S-Shaped Speed Curve, inspired by the smooth acceleration and deceleration of a lift, is a pivotal feature that enhances the camera lens movement. Much like the elevator ride that starts and stops seamlessly, the PTZ camera ensures your video captures maintain uninterrupted fluidity.
This innovative technology eliminates any jerky movements that might be discernible to the naked eye, resulting in professional-quality, visually pleasing content. The S-Shaped Speed Curve is your assurance that the camera’s pan, tilt, and zoom functions will operate with precision and grace, delivering an unparalleled visual experience for your audience. Experience the future of camera movement with the Datavideo PTZ camera.
Simply enable auto-tracking with your IR remote control
RMC-1AT PTZ Controller: All you need is a remote control to set and control all four cameras and save the four presets.
Wide 60° Field of View
The PTC-145 offers an expansive 60° Field of View, effortlessly capturing all scenes within its frame. This generous field of view ensures that it can encompass and record all the pertinent moments in the given area, delivering comprehensive visual coverage.
H.264/H.265 video compression for streaming
With a built-in streaming encoder, can encode up to 2 simultaneous streams to any cloud service.
Simple multi-camera control at your fingertips
With its ergonomic joystick and tactile button layout, the RMC-180 MARK II makes it easy to set up and control up to 4 Datavideo PTC-145 cameras for any live video production.
RMC-300A can Control Up to 24 PTC-145 Cameras
Designed to control up to 24 PTC-145 cameras, with preset memory for easy camera control. Able to control up to 24 Datavideo PTC-145 cameras simultaneously, with 14 presets for each camera to operate with RGB backlit buttons.
Multiple Network Protocol
Support RTSP and RTMPS protocols, easy to stream directly to your desired CDN streaming platform.
Compliant with the ONVIF Profile S Standard
The PTC-145 series cameras are compliant with the ONVIF Profile S standard, ensuring seamless integration and interoperability in network video systems.
Datavideo PTZ Cameras Support NDI Features
Datavideo’s PTZ camera series now supports NDI (Network Device Interface) features, enhancing their versatility and integration capabilities. With NDI, these cameras can transmit high-quality, low-latency video over IP networks, making them ideal for live production environments. The implementation of NDI utilizes the DVIP (Datavideo Protocol) ports, ensuring seamless connectivity and control. This advancement allows users to leverage the flexibility of IP-based workflows, simplifying setup and reducing the need for additional cabling, ultimately streamlining the production process.
One Ethernet Cable with NDI | HX Technology
There is no need for multiple cables and a complicated setup. The single-wire concept helps you to transfer video, audio, power, tally, and control over only one Ethernet cable.
Power Over Ethernet (PoE) functionality allows you to transmit all the information and power over only one cable.
NDI is a registered trademark of Newtek, Inc.
NDI Virtual Input
PTC-145 as a video input source can be applied to various platforms: Skype, GoToMeeting, WebEx, Zoom, and more.
Power over Ethernet
The PTC-145 supports PoE for easy installation. No need to find local power outlets or hire an electrician to install outlets wherever you want to mount your camera. Simply run a single CAT6 cable to power your PTC-145.
Dark or Light Body
The PTC-145 is available in dark blue or white to remain inconspicuous in permanent setups.
Remote control and preview by web user interface
The web user interface provides preview, pan-tilt-zoom control, and configuration settings in IP mode.
FREE PTZ View Assist APP
Control up to four cameras with your wireless touch screen. It can monitor the live-streaming video from the PTC-145 series. The app can control up to 4 cameras simultaneously via DVIP; you can intuitively set up and recall the presets and adjust white balance, focus, and IRIS.
Datavideo’s wide range of encoders, cameras, and hand-carry switchers are fully supported by SRT and dvCloud. Datavideo encoders and DVCloud provide reliable streams over unreliable networks. By using a Datavideo encoder and dvCloud together, you can utilize SRT (instead of RTMP) on the initial problematic connection, or “First Mile.” After your video stream reaches dvCloud, you can depend on dvCloud’s reliable, high-bandwidth network to deliver the stream to your favorite destinations, like Facebook and YouTube.
To View more Datavideo Products
Related Products:
- PTC-145NDI FHD 20x NDI Tracking PTZ Camera
- PTC-145T FHD 20x HDBaseT Tracking PTZ Camera
- PTC-280 4K PTZ Camera
- PTC-280NDI 4K NDI PTZ Camera
- PTC-285 4K Tracking PTZ Camera
- PTC-285NDI 4K Tracking NDI PTZ Camera
- PTC-285T 20x 4K HDBaseT PTZ Camera with Auto Tracking
- PTC-300 4K PTZ Camera
- PTC-305 4K PTZ Camera with Auto Tracking
- PTC-305NDI 4K 20X Tracking NDI PTZ Camera
- PTC-305T 20x 4K HDBaseT PTZ Camera with Auto Tracking
- Model Number: PTC-145
- Video format/Resolution: 1080p 60/59.94/50/30/29.97/25
1080i 60/59.94/50
720p 60/59.94/50 - Image Sensor: 1/2.8 inch high-quality HD CMOS sensor
- Effective Pixels (approx.): 2.07 Megapixels
- S/N Ratio: ≥50 dB
- Min. Illumination: 0.5 Lux @ (F1.8, AGC ON)
- Electronic Shutter: 1/30s ~ 1/10000s
- Zoom Ratio: 20x Optical Zoom, 8x Digital Zoom
- Gamma Control: N/A
- Iris Control: Auto / Manual
- Digital Noise Reductions: 3D
- On-Screen Display (OSD): English/Simplified Chinese/Traditional Chinese
- White Balance: Auto, Indoor, Outdoor, Manual, One Push
- AGC / Gain Control: Yes
- HDR/WDR: N/A
- Mirror / Flip Image: Yes
- Focus Mode: Auto / Manual
- Panning / Tilting Range: Pan: 340° , Tilt: +90° to -30°
- Panning / Tilting Speed: Pan: 0.1~60°/sec
Tilt: 0.1~30°/sec - Preset: 255 Positions
- Focal Length: f = 5.05mm (wide) to 91.49 mm (tele)
F1.8(Wide) ~ F2.9(Tele) - Field of View (Horizontal, Wide): 60°
- Image Compensation: Backlight Compensation

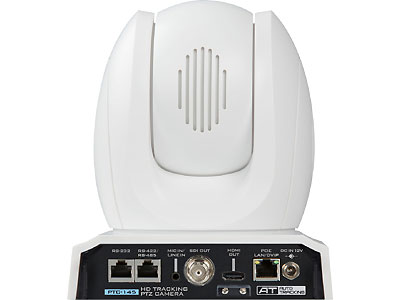

- Video Output: HDMI x 1
3G-SDI x 1
RJ-45 PoE x1 - Audio Input: 3.5mm Line in
- Tally LED: Dual color (Red, Green)
- Lens Filter: M52.0 x 0.75 Thread with UV Protection
- Control Protocol: Pelco-D, Pelco-P,
VISCA, VISCA over IP,
DVIP, ONVIF, NDI - Remote Control Interface: IR
Web GUI
RS-422/RS-232/RS-485 (RJ45)
DVIP
NDI - Video Compression Format: H.264/H.265/MJPEG
- Audio Compression Format: AAC, G711
- Audio Bitrate: 96Kbps, 128Kbps, 256Kbps
- HD IP Interface: 10/100/1000M (RJ45)
- Streaming Protocols: RTSP, RTMP(S), ONVIF, Multicast, SRT, NDI|Hx3 (1080p)
- First Stream Supported Resolution: 1920×1080
1280×720
1024×576
960×540
640×480
640×360 - Second Stream Supported Resolution: 720×480
640×480
640×360
320×240 - Video Bitrate: 32Kbps ~ 50Mbps (Single Stream)
- Video Bitrate Mode: VBR, CBR
- Encoding Frame rate: 50Hz: 1-50fps
60Hz: 1-60fps - POE: IEEE 802.3af
- F/W Update: Via Web UI
- IR Control: Yes
- Camera Control Unit: RMC-2P
RMC-180 series/
RMC-300 series/
PTZ View Assist APP - Tripod Mount: 1/4-20 UNC
- Optional Accessories: WM-1/WM-10/WM-11
- Color: Dark Blue/White
- Dimension (LxWxH): 156 x 184 x 186 mm
- Weight: 1.6 kg
- Operating Temperature Range: 0~40 °C
- Power: DC 12V 14W
- 1 x PTC-145 Unit
- 1 x IR remote controller
- 1 x Ceiling mount bracket-A
- 1 x Ceiling mount bracket -B
- 6 x Ceiling mount bracket screw M3*4mm
- 1 x DC 12V Power Adaptor
- 1 x Power Cord
- 1 x Safety cable
