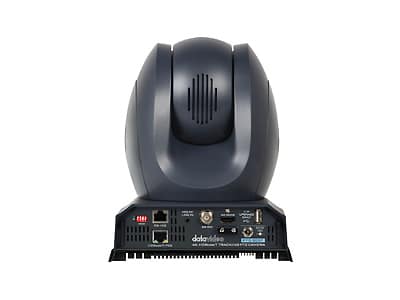

Datavideo PTC-305T 4K Auto Tracking PTZ Camera with HDBaseT
Datavideo is introducing the 4K50/60p auto tracking PTZ camera, PTC-305T can be easily controlled via traditional RS-422 serial port, or IP remote control via DVIP or Sony VISCA over IP. This brand new 4K camera series supports dual streaming output for A/V market application. You can easily stream to Facebook (RTMPS), YouTube and dvCloud. Live productions depend on high performance cameras and camera controllers.
This HDBaseT version allows single CAT-6 cable to transfer video, control, power, and tally.
One Cable Solution
HDBaseT allows you to transmit power, HD video, control, and tally over a single Ethernet cable.
Quick Access to Camera’s Auto Tracking
You will be allowed direct access to auto tracking via various external controllers such as the supplied RMC-1AT remote control and other controllers (RMC-300A, RMC-180 MARK II and PTC View Assist).
In addition to camera controllers, you can also easily enable auto tracking on smart switchers such as KMU-300, SHOWCAST 100, as well as complete solution systems like the ZR-1 APP running on the TPC-700 to control the iCAST 10NDI Hybrid Events switcher.
Custom Auto Tracking
If you are filming multiple people, you can designate a person for auto tracking. Once linked to the camera, only the designated person will be tracked, avoiding interferences such as the desks, people coming back and forth, large objects, and furniture.
Smart PTZ Speed Adaptation
The integrated PID algorithm is able to detect the movement speed of the identified object and automatically adjust the camera’s corresponding pan, tilt and zoom speeds in such a way that the lens movement will be smooth, avoiding common camera lens movement problems like jerky movements or halts.
Quick Access to Framing Options
All of the PTC-305 camera series include RMC-1AT controller. User can quickly select full-body, half-body and close up framing, making it easy to change the shooting scene and framing requirements.
Simply enable auto tracking with your IR remote control
RMC-1AT PTZ Controller. All you need is a remote control to set and control all four cameras and save the four presets.
PTZ View Assist: Control up to four cameras
The camera control app is tailored for the Datavideo PTZ camera series. It can monitor the live streaming video from PTC-140, PTC-280, PTC-285, PTC-300, and PTC-305 series. The app can control up to 4 cameras simultaneously via DVIP, you can intuitively set up and recall the presets, and adjust white balance, focus and IRIS.
The app is able to decode the live streaming via RTSP, SRT, and NDI. Easily monitor the live streaming video and set up the parameters promptly in one application.
Key Features:
Broadcast Quality 4K Resolution
With built-in 1/1.8″ CMOS sensor, supports resolution up to 2160p 50/60.
Superior Optical Performance
The Datavideo PTC-305T camera has 20x Optical Zoom and 16x Digital Zoom with the f1.58 wide open aperture.
Low Noise in Low Light
Advanced 3D noise reduction technology is also used to further reduce the noise while ensuring image sharpness.
Multiple Simultaneous Video Outputs
Supports simultaneous HDMI 2.0 and HDBaseT/IP output up to 2160p 50/60 and also 3G-SDI output up to 1080p60/50.
Multiple Network Protocol with Dual Stream Function
Support RTSP and RTMPS protocols, easy to stream directly to two different CDN platforms and Datavideo dvCloud as well.
Compatible with Various Controllers
Control real-time pan, tilt, and zoom camera movements with Datavideo HS-1600T MARK II, PTZ View Assist APP, RMC-300A and RMC-180 series. With configurable preset positions supported.
RS-422, DVIP and Ethernet Camera Control
RS-422 and ethernet to use DVIP or VISCA over IP commands to integrate with larger control systems.
Power over Ethernet
The Datavideo PTC-305T supports PoE and HDBastT for easy installation. No need to find local power outlets or hire an electrician to install outlets wherever you want to mount your camera. Simply run a single CAT6 cable to power your PTC-305T.
Tally Light
Green and red lights tally to show the preview and program status for broadcast applications.
Wide 60° Field of View
PTC-305T provides a wide Field of View of 60°, easily shooting all the scenes in the field.
Dark or Light Body
The PTC-305T is available in dark blue or white to remain inconspicuous in permanent setups.
Build a reliable SRT live streaming workflow with all Datavideo products
Datavideo’s wide range of encoders, cameras, and hand-carry switchers are fully supported by SRT and dvCloud. Datavideo encoders and dvCloud provide reliable streams over unreliable networks.
By using a Datavideo encoder and dvCloud together, you can utilize SRT (instead of RTMP) on the initial problematic connection or “First Mile.” After your video stream reaches dvCloud, you can depend on dvCloud’s reliable, high-bandwidth network to deliver the stream to your favorite destinations, like Facebook and YouTube.
Remote control from anywhere in the world
Control the PTZ cameras at the venue from anywhere in the world using the BB-1 KIT and dvCloud streaming service.
PoE Compatibility List
The chart above shows the product’s direct compatibility with other HDBaseT products.
