DataVideo PTR-10 Mark II Robotic Pan Tilt Head

SGD 2,989.00 excl. Tax

Product Highlights:

  • Multiple Signal Interface
  • Cost-Effective
  • Wide Range of Compatible Cameras Supported
  • Light Weight, Strong, and Sturdy design
  • Support your cameras up to 4 Kg
  • Built-in Tally light



Weight 12 kg
SKU: PTR-10 MK II Category:
Description
Click to rate this post!
[Total: 0 Average: 0]

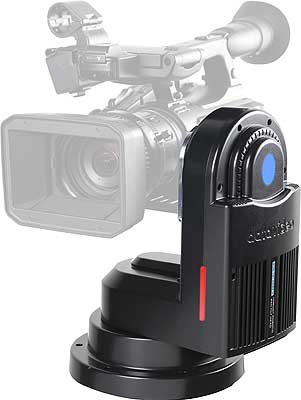

DataVideo PTR-10 Mark II Robotic Pan Tilt Head

Datavideo’s brand-new PTR-10 Mark II is a robotic pan-tilt head that is designed to turn any small size video camera or block cameras into a robotic

A sleek design fits seamlessly in your studio. With its weight of 3.4 Kg, it can be placed on any heavy-duty tripod or mounted on the wall and ceiling which brings up a lot of flexibility for your video production.

The PTR-10 Mark II can be controlled by the included IR controller, VISCA protocol controller, Datavideo RMC-180 Camera controller, RMC-300A Universal Remote-Control Panel, and compatible with DVIP over Ethernet and other integration solutions such as Crestron.

Cost-Effective

PTR-10 Mark II makes the change from regular camcorder cameras to remote controlled PTZ very cost effective. Multi-camera remote operations can be handled by a single person.

Wide Range of Compatible Cameras SupportedThe PTR-10 Mark II implements LanC control that is compatible with a wide range of professional video camcorders, allowing you to select the best camcorders for your needs.

Light Weight, Strong, and Sturdy design

With a weight of 3.4 kg, PTR-10 Mark II is built from aluminum alloy, making it a very sturdy base for your camera. It can support cameras up to 4 kilograms.

Diversified Controller Options

Compatible with Serial, Ethernet, and Lanc. Datavideo RMC-180 series, RMC-300A, and HS-1600T series (T model only) will fit your need.

Built-in Tally light

With the big tally light in the front to show the status of your camera.

D-tap connector for DC output

The D-tap connector is widely used in the broadcast industry as a standard for powering accessories from battery or mains power. This will make it easier for you to find a ready-made power cable for your specific camera. Included is a D-tap to DC 5.5mm with lock for Datavideo cameras.

Selectable DC voltage output for different cameras (7.4 / 8.4 / 10 / 12V )

Multiple Signal Interface

PTR-10 Mark II supports a lot of signal interface for passing through the remote head. Amongst these interfaces are SDI, HDMI, RS-232, RS-422, DVIP, Tally, and LANC.

Optional Accessories: ZEK-1 Zoom Encoder Kit

ZEK-1 is the solution to your free running Zoom cameras.
PTR-10 Mark II can read its own Pan/Tilt movement and send back to controller for position memory and recall. Now, with ZEK-1, it can detect and read out the Zoom changes. And convert those information into Zoom position to send back for controller to memory and recall the saved zoom position. Compatible with cameras via zoom moving ring.

Related Product:

DataVideo PTR-10T Mark II HDBaseT Robotic Pan Tilt Head

Specifications
Click to rate this post!
[Total: 0 Average: 0]
Video Interface HDMI x 1
SDI x 1
Video Output 2160p 29.97/25
1080p 59.94/50
1080i 59.94/50
720p 59.94/50
Control Unit RMC-180
RMC-300A
RMC-300C
VISCA Protocol Controller
IP Control
IR remote
Panning / Tilting Range Pan: 340°
Tilt: ±45°
Panning / Tilting Speed Pan: 0.2~15° /Sec
Tilt: 0.1~10° /Sec
Preset Pan/Tilt position 50
Control Distance Sony VISCA
DVIP
Control Protocal Sony VISCA
DVIP
Control Input RS-422
DVIP
Maximum Load 4 KG Max
Control Output RS-232
RS-422
BX-Lens
LanC
Power Requirement DC 12V~ 18V, 3A (Without Camera)
DC 12V~ 18V, 5A (With Camera)
Power Supply DC 12/10/8.4/7.4V, 24W Max
Operating Temp. Range 0~40 C°
Operating Humidity Range 10~80%
Storage Temp. Range -10~60C°
Storage Humidity Range 5~80%
Weight 3.4 kg
Dimension (LxWxH) 230 x 190 x 300 mm
What’s in the Box PTR-10 Mark II Main Unit x 1
DC 12V power adaptor x 1
AC cord x 1
IR remote control x 1
DC with lock to D-Tap cable x 1
HDMI cable x 1
SDI cable x 1
Remote cable (2.5mm phone-jack to mini-din 8pin) x 1
1/4” screw (14mm) x 2
1/4” screw (10mm) x 1
1/4” to 3/8” screw adaptor x 1
PTR-10 Mark II Thank You Card x 1
In The Box
Click to rate this post!
[Total: 0 Average: 0]
  • PTR-10 Mark II Main Unit x 1
  • DC 12V power adaptor x 1
  • AC cord x 1
  • IR remote control x 1
  • DC with lock to D-Tap cable x 1
  • HDMI cable x 1
  • SDI cable x 1
  • Remote cable (2.5mm phone-jack to mini-din 8pin) x 1
  • 1/4” screw (14mm) x 2
  • 1/4” screw (10mm) x 1
  • 1/4” to 3/8” screw adaptor x 1
  • PTR-10 Mark II Thank You Card x 1
