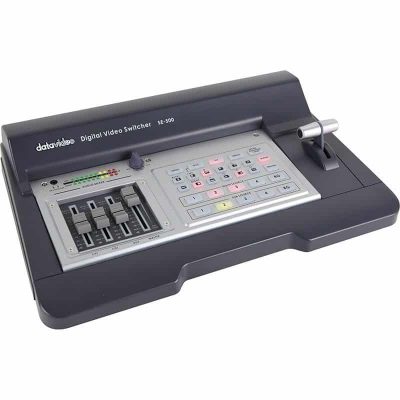

DataVideo SE-500 NTSC 4 - Channel Digital Video Switcher
Click to enlarge
Home » Shop » Video » Switcher and Encoder » Switchers » HDMI Switcher » DataVideo SE-500 NTSC 4 – Channel Digital Video Switcher
DataVideo SE-500 PAL 4 - Channel Digital Video Switcher
DataVideo SE-500 PAL 4 - Channel Digital Video Switcher SGD 1,400.00 excl. Tax
Back to products
Datavideo DAC-45 4K Up/Down/Cross Converter Can convert VGA signal to 4K HDMI or HD-SDI
Datavideo DAC-45 4K Up/Down/Cross Converter Can convert VGA signal to 4K HDMI or HD-SDI SGD 1,300.00 excl. Tax

DataVideo SE-500 NTSC 4 – Channel Digital Video Switcher

SGD 1,400.00 excl. Tax

  • An optional YUV input
  • A T-Bar control for effects of digital video transitions
  • A digital processor that guarantees high-quality images
  • Support for some different video effects including Quad, Wipe, Split, PIP, Dissolve, Fade
  • Color processing for correction of videos
Weight 6 kg
Datavideo
SKU: SE-500 NTSC Category: HDMI Switcher
Share:
  • Description
  • Specifications
  • Delivery Info
  • Reviews (0)
Description
Our Score
Click to rate this post!
[Total: 0 Average: 0]

DataVideo SE-500 NTSC 4 – Channel Digital Video Switcher

Coming with a color correction feature, four video input groups (4 being composite and 4 S-Video type), an audio mixer for four channels, video transition effects, two microphone inputs and a MIDI control interface, an RE-233 remote control interface and other amazing professional features, the DataVideo SE-500 NTSC is an absolute bargain.

The DataVideo SE-500 NTSC defines a video switcher, integrating analog input and digital processing. It is a popular video switcher that comes with a unique feature known as Quad Preview. This is used in displaying indicators for next video effects and tally light signals. The SE-500 is compact in size and includes all the features you would need in a video switcher and available in other models that are more expensive than the SE-500. With this model, the operator can further monitor some important activities including all video transition effects; camera activities while at the same time they can be able to observe as many as four different video input sources.

Main Features

Digital Video

There are talks of digital video all over, and nobody is heard talking about analog equipment. Think about Video 8 cameras, Betacam and S-VHS cameras and their application or relevance in this era of digital systems. The best thing about the SE-500 as a digital video switcher it is that it allows for analog input. You won?t have to throw away your analog systems as you can still use them to produce high-quality videos. The DataVideo SE-500 NTSC is simple to operate and allows for multi-input, producing high-quality output and best of all, it is available at affordable prices.

Professional Features

The?DataVideo SE-500 NTSC is popular for its wide array of professional features that it provides users with. This video switcher model allows for input of 4 different video groups, and these include 4x S-Video and 4X composite. It has a MIDI control interface and supports RS-232 interface for remote control which enhances its ease of use. Other professional features available in the SE-500 is color correction, two microphone inputs, and digital transition effects as well as four audio mixer channels.

Compact

With the DataVideo SE-500 NTSC, the operator may use only one monitor to view as many as four different video input sources. You can use this model to switch videos that may be as far as 200 meters away using DV Cameras. To achieve this, though, you will need different accessories such as the Datavideo DAC-6 (this includes a component converter, Y/C and DV to Composite), a DV Repeater (VP-314) and 1=40, 10 and 20 meters DV cables.

Genlock No Longer Necessary

The DataVideo SE-500 NTSC comes with an inbuilt 4:2:2 frame synchronizers and a Dual Channel Time Base Corrector and these eliminate the need to run external sync when using this switcher. Think about instances where more than a single activity is taking place and the audience needs to be kept informed on what is being covered at different angles; such a scenario makes a perfect fit for the SE-500 video switcher.

Wide Application Range

The great and professional features presented by the DataVideo SE-500 and its ease of use coupled up by its low price makes it a great option for a wide range of applications. Think outdoor activities, small studios, pubs or clubs, schools or any settings where a single camera wouldn?t be enough to cover all the action then SE-500 will be a great addition.

Specifications
Our Score
Click to rate this post!
[Total: 0 Average: 0]
Video Formats Analogue S-Video (Y/C) and Composite PAL (NTSC is available as a different model)
YUV at Sony Betacam Standard
Video Inputs (4 Max) 4 x Composite
4 x S-Video (Y/C)
Video Output Composite and S-Video
Optional YUV output
Quad Preview output with Tally light indicator and next video effects indicator
Audio Inputs 2 x Microphone
1 x Stereo Audio (RCA) Aux
Audio Output Main output and headphone output with volume control
Dual Channel Full Frame
Synchronizer TBC
4:2:2, 13.5MHz
Digital Effects A/B Dissolve
PIP ,Quad , Split , Wipe, Fade
(Digital Effects with T-Bar manual control)
Headphone Monitor Jack Stereo Audio, 1.0Wrms in 16ohms
RS232 Data Control Port for
Remote Control
Yes
MIDI Control Interface Yes
Colour Processing Brightness: /-30%
Contrast: 3dB / -6dB
Colour: 6dB / -10dB
Video Bandwidth Component (YUV): > 4.8MHz
S-Video (Y/C): > 4.8MHz
Composite: > 4.8MHz
Audio: 20Hz – 20kHz, /-3dB
Signal/Noise Ratio (SNR) Video: > 50dB
Audio: > 70B
DG, DP /-3%, 3 degrees
Audio THD > 0.1%
Dimensions 380x55x245mm (WxHxD)
Weight 2.1kg
Power Power Adaptor Input: AC 90-240v auto
Power Adaptor Output: DC 12V 15W
Accessories AC/DC Power Adaptor
BNC cable x 2
S-Video (Y/C) cable x 2
Audio/Video Phono cables x 1 set
Component (YUV) cable
Instruction Manual
