DPA 4488 CORE Directional Headset Microphone

USD 681.92 excl. Tax

Weight

2 kg

color

Beige, Black, Brown

SKU: N/A Category: Headworn

Description
Features
Specifications
Delivery Info
Reviews (0)

Description

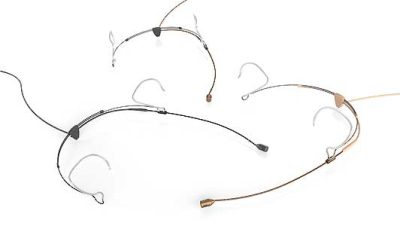

DPA 4488 CORE Directional Headset Microphone

The DPA 4488 CORE Directional Headset Microphone combines DPA’s renowned 5 mm capsules with CORE by DPA technology and the Red Dot award-winning headset.

These are the most advanced headsets – secure, durable and flexible – for segments including: Theatre, Broadcast, House of Worship and Conferencing.

The DPA 4488 CORE Directional Headset Microphone offers an open and natural sound making it ideal for both spoken word and vocal performance applications. It provides excellent off-axis rejection in high-SPL situations. It efficiently suppresses distant sound sources making it perfect for demanding live performance environments where background noise and feedback are concerns.

The bass response is designed for optimal linearity at 2-3 cm (1 inch) from the sound source. This means that the bass roll-off will be relatively prominent at a greater distance – a paramount factor when it comes to rejection of background noise and in the fight to avoid feedback.

Features

One-size-fits-all – head sizes and shapes
Comfortable 3-point grip – above, below, behind the ear
Easily adjustable – frame size, boom length, placement
90° adjustable cable guide – keeps cable out of sight
Non-reflective PVD surface on headset frame, boom, capsule

Specifications

Directional pattern	Cardioid
Principle of operation	Pressure gradient
Cartridge type	Pre-polarized condenser
Frequency response	20 Hz – 20 kHz
Effective frequency range ±2 dB	100 Hz – 20 kHz (4 – 6 dB soft boost at 15 kHz)
Sensitivity, nominal, ±3 dB at 1 kHz	6 mV/Pa; -44 dB re. 1 V/Pa
Equivalent noise level, A-weighted	Typ. 26 dB(A) re. 20 µPa (max. 28 dB(A))
Equivalent noise level, ITU-R BS.468-4	Typ. 38 dB (max. 40 dB)
Distortion, THD < 1% - Legacy	120 dB SPL RMS, 123 dB SPL peak
Distortion, THD < 1% - Core	134 dB SPL RMS, 137 dB SPL peak
Dynamic range – Legacy	Typ. 97 dB
Dynamic range – CORE	Typ. 111 dB
Max. SPL, THD 10%	144 dB SPL peak
Rated output impedance	30 – 40 Ω
Cable drive capability	Up to 300 m (984 ft) with DAD6001-BC XLR Adapter
Power supply (for full performance)	For wireless systems: Min. 5 V – max. 10 V through DPA adapter With DAD6001-BC: P48 (Phantom Power). Will work from 12 V
Current consumption	Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter
Connector	MicroDot, TA4F Mini-XLR, 3-pin LEMO, Mini-Jack
Color	Black, brown or beige
Weight	14 g (0.5 oz) incl. Cable and MicroDot connector
Microphone diameter	5.4 mm (0.21 in)
Microphone length	11 mm (0.5 in)
Cable length	1.2 m (3.9 ft)
Cable diameter	1.6 mm (0.06 in)
Polarity	Positively increasing sound pressure produces positive going voltage on MicroDot pin
Temperature range	-40°C to 45°C (-40°F to 113°F)
Relative humidity (RH)	Up to 90%
