Description

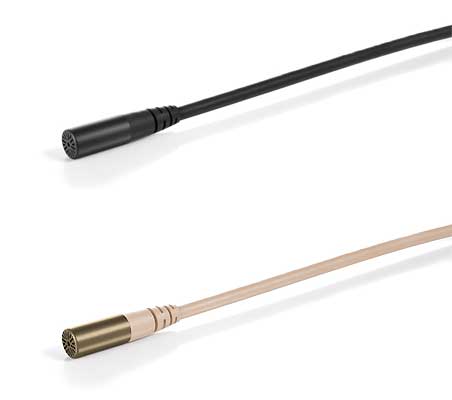

DPA d:screet CORE 6060 Series Subminiature Microphone
6060 CORE Subminiature Microphones are just 3 mm (0.12 in) in size but pack the audio power of DPA’s larger, award-winning DPA mics. What they lack in size, they more than make up for in clarity, consistency and durability – three qualities that really matter. By shrinking CORE by DPA technology, we ensure you don’t have to compromise on sound to focus on aesthetics.

Shrinking CORE into a 3 mm
The performance of the 6060 CORE Subminiature Series is fully comparable to the 5 mm (0.20 in) miniature capsules that are beloved around the globe. These subminiatures have a lower noise floor than any other 3 mm (0.12 in) capsule on the market and they are better able to capture high sound pressure levels without distortion as well. In terms of technical specifications, the 6061 has a noise floor of only 26 dB(A), which is on par with the 5 mm (0.20 in) DPA miniature capsules.

Advanced new mic design
This tiny capsule has a cap that can be removed for cleaning and should be firmly reattached to the mic body with a firm click that can both be felt and heard. The supplied cap corresponds in its nature to the low-boost grid of our 5 mm (0.20 in) versions. Both the mic itself plus the cap are made of stainless steel and treated with a Physical vapor deposition (PVD) coating that makes it extremely durable: able to tolerate high temperatures, resilient against impacts and resistant to abrasion. The entire mic has a pleasant matte look due to the coating making the entire headset look smaller and less obtrusive.

Click to rate this post!

[Total: 0 Average: 0]

Specifications

Directional pattern	Omnidirectional
Principle of operation	Pressure
Cartridge type	Pre-polarized condenser
Frequency response	20 Hz – 20 kHz
Effective frequency range ±2 dB	40 Hz – 20 kHz with 4 dB soft boost at 8 – 20 kHz
Sensitivity, nominal, ±3 dB at 1 kHz	20 mV/Pa; -34 dB re. 1 V/Pa
Equivalent noise level, A-weighted	Typ. 24 dB(A) re. 20 μPa (max. 26 dB(A))
Distortion, THD < 1%	123 dB SPL RMS, 126 dB SPL peak
Dynamic range	Typ. 102 dB
Max. SPL, THD 10%	134 dB SPL peak
Rated output impedance	From MicroDot: 30 – 40 Ω. From DAD6001-BC: 100 Ω
Cable drive capability	Up to 300 m (984 ft) with DAD6001-BC XLR adapter
Power supply (for full performance)	For wireless systems: Min. 5 V – max. 10 V through DPA adapter
null	With DAD6001-BC: P48 (Phantom Power). Will work from 12 V
Current consumption	Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter
Connector	MicroDot, TA4F Mini-XLR, 3-pin LEMO, Mini-Jack
Color	Black, beige, brown or white
Weight	8 g (0.29 oz) incl. Cable and MicroDot connector
Microphone head size (h x w x d)	3.4 / 14.4 mm (0.13 / 0.57 in)
Capsule diameter	3 mm (0.12 in)
Cable length	1.8 m (5.9 ft)
Polarity	Positively increasing sound pressure produces positive going voltage on MicroDot pin
Temperature range	-40°C to 45°C (-40°F to 113°F)
Relative humidity (RH)	Up to 90%

Click to rate this post!

[Total: 0 Average: 0]
