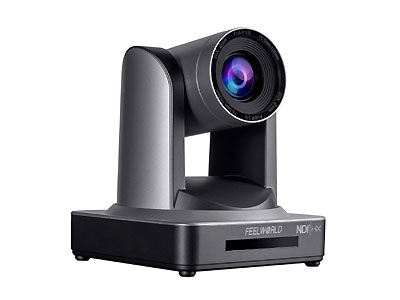

Feelworld NDI20X 3G-SDI HDMI NDI Live Streaming PTZ Camera
SGD 1,438.50 excl. Tax
Product Highlights:
- 20X optical zoom professional full HD camera
- Up to 1080p@60fps, higher quality image
- Simultaneous 3G-SDI, HDMI, NDI/IP Streaming
- Supports H.265/H.264 Encoding
- Advanced 2D/3D noise reduction technology
- Multiple control protocols and network protocols
- Ideal for church live streaming, video conferences
Weight | 5 kg |
---|---|
Choose Product Variant |
Bolt 4K 1500 TX/RX Set ,Bolt 4K 1500 TX/RX Set (Gold-mount) ,Bolt 4K 1500 TX/RX Set (V-mount) |
FEELWORLD NDI20X Simultaneous 3G-SDI HDMI NDI IP Professional Live Streaming PTZ Camera with 20X Zoom Support PoE
All-in-one Live Video Production Solution
FEELWORLD NDI20X is a full HD PTZ camera with 20x optical zoom, simultaneous NDI/IP, 3G-SDI, and HDMI video output interfaces. It supports PoE, which allows you to easily transmit all the information and power for the device with one cable. It is ideal for video conferencing, education, live broadcasting, broadcasting, and churches.
Multiple Video Output:
Stream to Your Favorite Platforms: Simultaneous HDMI, 3G-SDI, and IP/NDI video output and multiple network protocols allow NDIX20 to easily live stream to your favorite platforms, such as YouTube, Facebook, Twitch, etc.
Note: The 3G‐SDI is available for 100 m transmission at 1080p60 format.
NDI|HX Live Video Production Support Protocol
NDI20X comes with NDI interface transmission protocol, with low-latency video and audio transmission, reduces wiring costs and deployment time, and satisfies the needs of studios and on-site multi-camera video production.
PoE Support:
The PTZ camera supports PoE (Power over Ethernet), just one cable can be used for power, video/audio streaming, and control.
1080P@60 HD Image Quality + 20X Optical Zoom
The high-resolution 1080P@60fps, outstanding color reproduction, and 20X zoom deliver premium optics and life-like video to create the experience of sitting together in the same room, even if you are a thousand miles away.
Low Light Correction:
The low-light performance technology can automatically adjust the brightness level. Every moment can be seen, even in dark or backlight conditions. Outstanding performance and video quality make live recording extremely convenient.
H.264 and H.265 Encoding: More Smooth and Clear Video Motion:
IP live streaming supports H.264 and H.265 video compression, which makes motion video more fluent and clear under low bandwidth conditions.
Auto Focus and Smart Frame Capture Everyone:
Take close-ups of characters and details, and there is no need to worry about blurring your image when you’re speaking.
Accurate, Smooth, and Silent PTZ Movement:
- Capture every person in the room with multi-angle
- With its built-in two-way high speed and silent pan/tilt, the lens can rotate 340° horizontally (±170°) and 120° vertically (-30°~+90°).
Low noise and high SNR:
A super-high SNR image is achieved with low-noise CMOS. Advanced 2D/3D noise reduction technology further reduces the noise while ensuring high image clarity.
Up to 255 preset positions:
The secret to more productive meetings is having 10 preset positions on the IR remote controller that can save pan, tilt, and zoom settings, and smoothly transition between them at the touch of a button. Up to 255 preset positions via WEBSEVER.
Multi Ways to Control Your Camera:
Operate Nearby or Far Away You can Pan, tilt, and zoom with the hand-held remote to see everything in your workspace. You can also operate it from a remote location with WBESREVER software or FEELWORLD L2 PLUS video switcher.
Multiple mounting options:
NDI20X can be installed on any wall/ceiling/tripod to capture close-up shots for your every live video production.
Note: Bracket not included
Multiple Application:
NDI20X is widely used for church streaming, video conferences, sports events, online education, etc.
To view more Feelworld Products
- 20X optical zoom professional full HD camera, suitable for larger occasions
- Up to 1080p@60fps, higher quality image
- Simultaneous 3G-SDI, HDMI, NDI/IP Streaming video out, easily for professional video production
- PoE (power over Ethernet) supported
- Double track 3.5mm linear input for audio
- Autofocus, smart frame capture everyone
- Supports H.265/H.264 encoding, which makes motion video fluent and clear even with less than-ideal bandwidth conditions.
- Advanced 2D/3D noise reduction technology further reduces the noise while ensuring high image clarity
- High speed and silent pan/tilt, capture all the actions
- Multiple control protocols and network protocols
- Low-power sleep function
- Ideal for church live streaming, video conferences, sports events, online education, etc.
Camera Parameters:
- Model: NDI20X
- Sensor: 1/2.9 inch high-quality CMOS-sensor
- Effective Pixels: 2.07 megapixels, 16‚9
- Output Resolutions: 720p25/29.97/30/50/59.94/60 | 1080p25/30/29.97/30/50/59.94/60
- View Angle: 3.3°~ 54.7°
- Focus Length: f=5.5~110mm
- AV: F1.6 ~ F3.5
- Optical Zoom: 20X
- Minimum Illumination: 0.5 lux (F1.8, AGC ON)
- DNR: 2D & 3D
- White Balance: Auto /Manual/One Push/3000K/3500K/4000K/4500K/5000K/5500K/6000K/6500K/7000K
- Focus: Auto Manual, or One Push Focus
- Exposure: Auto / Manual
- BLC: On/Off
- WDR: OFF/Dynamic level adjustment
- Video Adjustment: Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve
- SNR: >55dB
Input/Output Interface:
- Video Interface: HDMI, 3G-SDI, NDI
- Image Code Stream: Double stream outputs simultaneously
- Video Compression Format: H.264, H.265
- Audio Interface: Double track 3.5mm linear input
- Audio Compression Format: AAC, MP3, G.711A
- Control Interface: RS232 (IN/OUT), RS485
- Control Protocol: VISCA/Pelco-D/Pelco-P
- HD IP Interface: 100M IP Port (10/100BASE-TX)
- Network Protocol: RTSP, RTMP, ONVIF, GB/T28181, NDI
- Power Interface: HEC3800 outlet (DC12V)
Video Format:
- HDMI/SDI Video Out: 1080P60/50/30/25/59.94/29.97;1080i60/50/59.94;720P60/50/59.94
- USB 2.0 Video Output: 320×240|352×288|640×360|640×480|704×576|704×480|720×576|800×448|800×600|960×540|1024×576|1024×768|1280×720|1920x1080P30/25/20/15/10/5
PTZ Parameters:
- Pan Rotation: -170°~+170°
- Tilt Rotation: -30°~+90°
- Pan Control Speed: 0.1 ~60°/sec
- Tilt Control Speed: 0.1~30°/sec
- Preset Speed: Pan: 60°/sec, Tilt: 30°/sec
- Preset Number: 255 presets (10 presets via remote control)
Other Parameters:
- Input Voltage: 12V/1.5A
- Power Consumption: Maximum: 12W
- Stored Temperature: -40℃~+70℃
- Storage Humidity: 20%~90%
- Working Temperature: -10℃~+50℃
- Working Humidity: 20%~80%
- Dimension (W*H*D): 150mm×150mm×167.5mm
- Unit Weight: 1.4 kg
- Outer Carton QTY: 4 pieces
- Outer Carton Size: 52*29*50cm
- Gross Weight: 9.85 kg
- 1× Video Camera
- 1× Remote Control
- 1× RS232 Control Cable
- 1× RS485 Terminal Block
- 1× Power Adapter
- 1× EU Standard Power Cable
- 1× US Standard Power Cable
- 1× Manual
