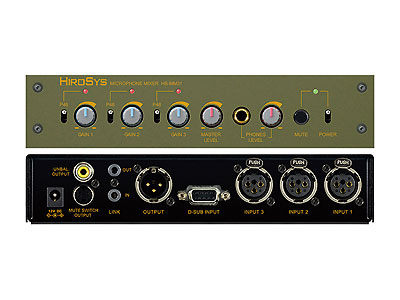

Hirosys HB-MM31 3-Channel Microphone Mixer

Audio Specifications:

• Input Impedance: Mic: 10kΩ, (Balanced) Line: 12Ω
• XLR Output Impedance: Mic. 320Ω, (Balanced) Line 200Ω
• RCA Output Impedance: 1 kΩ (Unbalanced)
• Maximum Input Level: Mic. -22dBu @ Min. Gain, (Balanced) Line: +28dBu @ Min. Gain
• XLR Max. Output Level: Mic. -27dBu (600Ω) @ Max. Gain, Line: +23dBu (600Ω) @ Max. Gain
• RCA Max. Output Level: -13dBm @ -22dBu Input Level (Unbalanced)
• Maximum Gain: 62 dB
• Frequency Response: 20Hz~20kHz @ +0dB, -1.2dB Points
• THD+Noise: 0.03% Max. (From 20Hz~20kHz @ -22dBu)
• Signal-to-Noise Ratio: 56 dB
• Headphone Output Level: 150mW (40Ω Load)
• Input Attenuation: 10 dB
• Mic. / Line Input Pads: 50 dB
• Mic. Phantom Power: +48V DC
• Operating Temp: 0°C~40°C

Connections:

• Microphone Input: 3 × XLRF, D-sub 9-pin
• Master Output: XLRM (Balanced), RCA (Unbalanced)
• Link In / Output: 3.5mm TRS / Stereo
• External Mute Switch: 4 Pin Mini-DIN
• Headphone Output: 6.3mm TRS / Stereo
• Power Requirement: 12V DC, 1A with AC Adapter

Physical Specification:

• Dimensions: W210 × H50 × D230 (mm) (Including Feet, Knobs and Connector)
• Weight: 1.54kg (3.4lb.)
• Included Accessories: AC Adapter, Link Cable, Rack Ears and 6 Screws
• Optional Accessory: Double Rackmount Joining Plate
