Hollyland Streamix M1 Portable 6-Channel SDI/HDMI Live Stream Switcher

SGD 3,767.50 excl. Tax

Weight 6 kg
SKU: Streamix M1 (8901) Category:
Description
Click to rate this post!
[Total: 6 Average: 5]

Hollyland Streamix M1 Portable 6-Channel Live Stream Switcher from Anywhere at Anytime

Introducing Streamix M1, the latest portable multi-function integrated live stream switcher from Hollyland. With 6 video inputs, Streamix M1 allows you to live switch up to 5 video feeds in SDI, HDMI, Network Flow, DDR, and from mobile phone camera (via Streamix APP). Fitted with audio inputs and outputs of XLR and TRS standards, connecting to microphones or mixing consoles to realize rich audio control is simple and handy. In addition, the Streamix M1 also comes with a 3.5mm audio output for real-time audio monitoring.

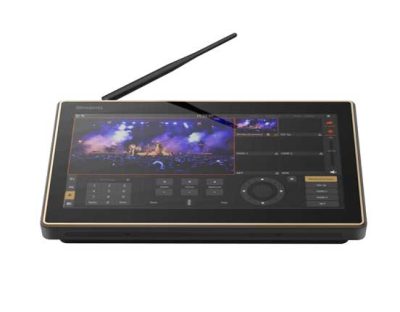

Hollyland Streamix M1

With 256GB of RAM, Streamix M1 supports recording the video stream with a single click. Live streaming your show to multiple platforms, such as Facebook, YouTube, and any RTMP-supported platforms, can be done with a wired or wireless Internet connection. What’s even better, Streamix M1 allows you to adjust the video aspect ratio and switch between portrait mode and landscape mode. If that wasn’t enough, Streamix M1 also features a Multiview function that enables users to arrange multiple videos on one screen intuitively and seamlessly.

RTMP-supported streaming platforms

Streamix M1 supports live streaming to up to 3 platforms, such as Facebook, YouTube, and any RTMP-supported streaming platforms. With just a single click, your work gets streamed to various platforms, multiplying your audiences and business instantly.

Gigabit RJ45 Port for Wired/Wireless Connection

With wired/wireless network connection, Streamix M1 handles all kinds of usage scenarios with total ease. In addition, you can check real-time network connection status on the control interface to maintain a continuous network connection.

Remote Live Streaming Made Fast & Easy

Featuring wide compatibility, Streamix M1 can be used with Hollyland Syscom 421 through a wired connection. Together, this setup realizes wireless transmission of up to 4 videos quickly and simply.

Real-Time PTZ Camera Control & Streaming Available

If you are already a PTZ camera user, then the Streamix M1 is exactly the live stream switcher you will need. Connecting the live stream switcher to the camera via an RJ45 cable, multiple features are realized: video streaming, real-time camera control, remote camera parameters settings, including direction, zoom, focus, aperture, etc.

256GB RAM, Intelligent Power Outage Protection, and More

With 256GB RAM, the live stream switcher allows you to record the ongoing program while inputting local videos to the switcher. Meanwhile, Streamix M1 is endowed with an intelligent power outage protection function that makes sure that your files are safe and sound in a power outage.

Unleash Your Creativity with Multiple Built-In Effects

To meet the needs of the ever-increasing types of live streaming, Streamix M1 offers a variety of program adjustment functions, from aspect ratio adjustment, to switching between portrait mode and landscape mode to picture-in-picture effects with a maximum of 4 videos. What’s more, the program size and layout can be customized according to the specific situation. In addition to this, the live stream switcher also comes with multiple screen switching effects at zero delays, giving the audiences a smooth watching experience.

A Library of Overlays Awaiting You

Streamix M1 offers a library of overlay effects to users to spice up the live stream. You can add pictures, emojis, texts, and other content to the program with its built-in templates or customized templates imported from other devices via the USB connector.

Built-In Analog Mixer to Add A Professional Touch

On the live stream switcher, you can also find a built-in analog mixer. With its professional mixer operation interface, you get to mix multiple audio tracks, intuitively adjust the audio volume via the touchscreen. Creating a fabulous live stream has never been this easy

Instant Remote Connection

Through WiFi or by cable, two remote live stream switchers can be connected by entering a unique director code of the setup. This way, the two switchers are able to share their screens and cross-regional live broadcasting is made available.

Butter smooth Streaming at Any Bandwidth

Multiple video bitrate options are available with the Streamix M1 during video recording or streaming. Besides the default bitrate options (1 MPs, 2 MPs, and 4 MPs), users can set customized bitrates according to the characteristics of specific platforms and bandwidth.

Streamix M1 offers 4 video resolution settings for live streaming, with a maximum of 1080P.

Other Site:

Hollyland Streamix M1 Live Stream Switcher

Read Our Blog:

Popular Professional Audio/Video Switchers & Mixers for Multimedia Productions



Specifications
Click to rate this post!
[Total: 6 Average: 5]
  • Switching Type: Touchscreen

Input:

  • Number of Video Input Sources: 6
  • Video Inputs: 1 x RJ45
    1 x USB 3.0
    2 x BNC (3G-SDI)
    2 x HDMI
  • Input Video Format: HDMI / SDI / RJ45
    1080p
  • Audio Inputs: 2 x Combo XLR-1/4″ TRS

Output:

  • Video Output Channels: 1
  • Video Outputs: 1 x BNC (3G-SDI) (Program)
    1 x HDMI (Program)
  • Audio Outputs: 2 x Combo XLR-1/4″ TRS
    1 x 1/8″ / 3.5 mm TRS (Loop Output)
  • Embedded Audio Output: HDMI
    RJ45
    SDI
  • Multiview Output: 4-Way Multiview
  • Monitor Output: 1 x HDMI

Connectivity

  • Other I/O: 1 x USB Type-A
    1 x DE-15/DB-15 Tally
  • IP Video: 1920 x 1080 Encoding
  • IP Audio: Encoding
  • Transport Protocols: RTMP
  • Simultaneous Streams: 3 Streams
  • Compatible Services: Facebook Live, YouTube Live
  • Internal Storage: 256 GB

Display:

  • Display Size: 11.6″

Hardware:

  • Power I/O: 1 x Proprietary (19 VDC) Input

Environmental:

  • Operating Temperature: 14 to 122°F / -10 to 50°C
  • Storage Temperature: -4 to 158°F / -20 to 70°C
  • Operating Humidity: 10 to 90% (Non-Condensing)
  • Dimensions: 11.6 x 7.6 x 2.1″ / 294 x 193 x 54 mm
  • Weight: 2.76 lb / 1.25 kg
  • Package Weight: 5.37 lb
  • Box Dimensions (LxWxH): 15.6 x 11.7 x 6.1″
In The Box
Click to rate this post!
[Total: 6 Average: 5]
  • Streamix M1 Switcher x 1
  • Power supply and Power Cord x 1
  • WiFi Antenna x 1
  • Warranty Card Certificate x 1
  • User manual x 1
