Description

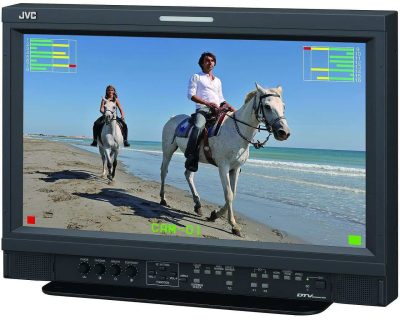

JVC DT-E15L4G 15-inch Multi-format LCD Monitor

The JVC DT-E15L4 is a highly compact HD LCD 15-inch Studio Monitor with LED backlighting, reduced power consumption and improved lifespan.

JVC’s DT-E15L4 HD monitor features a newly-developed TN Panel with LED backlighting that provides outstanding contrast and black level. With power consumption 20-30% less than conventional CCFL monitors, the DT-E15L4 is perfect for use as a studio or camera monitor.

Features:

15.6-inch Non-Glare TN LCD panel with 1366 x 768 (WXGA) pixel array
Mercury-free White LED backlight
IMD (In Monitor Display) function
RS-232C, RS-485 remote
HD-SDI, HDMI, Analog Component and Composite video inputs
Wide viewing angle of 170/160°
LTC, VITC and D-VITC support
16 channel audio level metering

Click to rate this post!

[Total: 1 Average: 5]

Specifications

Display Device
Display Type	21.5″ LCD Display
Aspect Ratio	16:9
Pixel number	1920 (H) x 1080(V)
Panel surface	Non-Glare
Viewing Angle	H:170deg V:160deg
Contrast Ratio	1,000:1
Display color	16.7M colors
Backlight	LED
VESA standard	100mm x 100mm (M4 x4)
Dimension
Width	515 mm
Height	352.1 mm
Depth	181 mm
Weight
Weight	7.7kg/6.2kg (without stand)
Power Requirement
Power Requirement	120, 220-240V 50/60Hz 12~17V
External In / Out
Video IN/OUT	Composite Video IN: BNC x 1 Composite Video OUT: BNC x1 Loop through
Component Analog RGB In	Mini D-Sub 15 pin x 1
HDMI In	HDMI Connector x 1
HD/SD-SDI	IN: BNC x2 OUT: BNC x1 (Switched / reclocked out)
Audio	IN: RCA x 2 (L/R) 3.5mm Stereo mini jack x 1 OUT: RCA x 2 (L/R) Monitor Out
Remote	MAKE/TRIGGER: RJ-45(8-pin) x 1 RS-485 IN : RJ-45 (8-Pin) x 1 RS-485 OUT: RJ-45 (8-Pin) x 1 RS-232C: D-sub (9-pin) x 1
Audio
Speaker Output Power	1W x 2
