JVC DT-E17L4G 17-inch Multi-format LCD Monitor

The JVC DT-E17L4G is a cost-efficient full HD LCD 17-inch Studio Monitor with LED backlighting, reduced power consumption and improved lifespan.

JVC’s new DT-E Series HD monitors to provides a cost-effective alternative to our industry-standard DT-V high-end monitors. They feature a newly-developed TN Panel with LED backlighting that provides improved contrast and black level. With power consumption 20-30% less than conventional CCFL monitors, the DT-E Series monitors are perfect for use as control and studio monitors. The reduced power consumption also makes it possible to add 12VDC support for field use.

The latest interfaces — HDMI and HD-SDI

HD-SDI input and output, as well as HDMI connectors, are included as standard, making these monitors suitable for a variety of professional applications, including post-production and broadcasting.

Full HD resolution glossy high-contrast LCD panel with LED backlighting

The JVC DT-E17L4G monitors feature a 1920 x 1080 pixel full HD resolution glossy LCD panel with LED backlighting. Compared to CCFL backlit monitors, LED backlit LCD monitors are more energy efficient, radiate little heat, and best of all, are free of mercury. The panel is compatible with ITU-709 color gamut and offers high-speed response with low latency of less than one frame (in field mode).

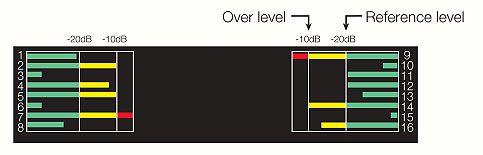

16-channel embedded audio level meter

A convenient 16-channel audio level meter with multiple indications such as peak, and graduation levels, provides at-a-glance recognition of audio signal status.

Carrying handle and DC power supply

The DT-E series monitors are light enough to carry around, at just 7.1 kg / 15.6 lbs. (17″) and 7.7 kg / 16.9 lbs. (21″) respectively. And in addition to a conventional AC adaptor, a DC power input connector (12-17V) is included.

IMD (in-monitor display) function

Based on TSL’s UMD protocol version 4.0, the built-in IMD (in-monitor display) function keeps track of the monitor’s condition, displaying the monitor identifier as text (e.g., input source equipment, input signal format, etc.) along with tally lamps to show the status.

Features

HD-SDI and HDMI compatible
Full HD Resolution with 1920 x 1080 panel
Composite Video In/Out, Component Video In, Analog RGB Video In, HDMI In, HD/SD-SDI In/Out
3-Way stand for versatile installation
Mercury-free LED Backlight
IMD (In Monitor Display) function based on TSL's UMD protocol ver. 4.0
10bit color processing
16ch embedded audio with level indicator
Other features
- 16.7 million display colors
- Area/Center / Safety marker
- LTC & VITC time code support
- Built-In speakers
- AC/DC Power Supply
- Gloss high contrast panel (600:1 contrast ratio)

Specifications

Display Device
Display Type	17" LCD Display
Aspect Ratio	16:9
Pixel number	1920 (H) x 1080(V)
Panel surface	Gloss
Viewing Angle	H:160deg V:140deg
Contrast Ratio	600:1
Display color	16.7M colors
Backlight	LED
VESA standard	100mm x 100mm (M4 x4)
Dimension
Width	430 mm
Height	314.1mm
Depth	181 mm
Power Requirement
AC	120V (0.5A)
DC	12~17V (3 A)
External In / Out
Video IN/OUT	Composite Video IN: BNC x 1 Composite Video OUT: BNC x1 Loop through
Component Analog RGB In	Mini D-Sub 15 pin x 1
HDMI In	HDMI Connector x 1
HD/SD-SDI	IN: BNC x2 OUT: BNC x1 (Switched / reclocked out)
Audio	IN: RCA x 2 (L/R) 3.5mm Stereo mini jack x 1 OUT: RCA x 2 (L/R) Monitor Out
Remote	MAKE/TRIGGER: RJ-45(8-pin) x 1 RS-485 IN : RJ-45 (8-Pin) x 1 RS-485 OUT: RJ-45 (8-Pin) x 1 RS-232C: D-sub (9-pin) x 1
Audio
Speaker Output Power	1W x 2
