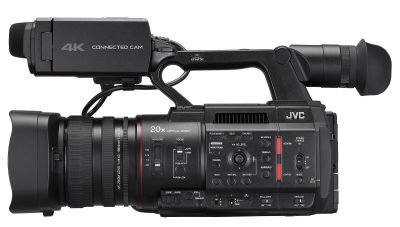

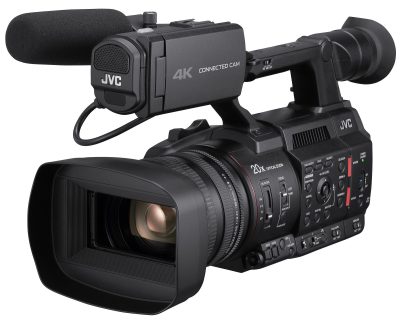

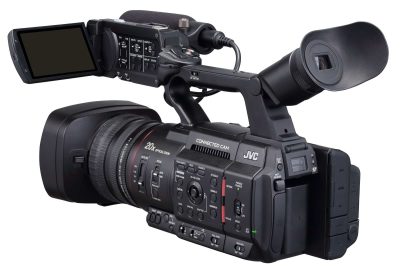

JVC GY-HC500
JVC GY-HC500
JVC GY-HC500
Click to enlarge
HomePro-VideoProfessional Camcorders4K Camcorder JVC GY-HC500E Handheld Connected Cam 1-Inch Camcorder

JVC GY-HC500E Handheld Connected Cam 1-Inch Camcorder

USD 3,595.00 excl. Tax

  • 1-inch (effective) CMOS sensor with high picture quality
  • F11 Sensitivity
  • Newly-developed 3-ring 4K lens with 20x zoom
  • 40x lossless dynamic zoom
  • 4-inch high resolution LCD monitor
Weight 5 kg
Add to wishlist
SKU: GY-HC500E Category: 4K Camcorder

Share this:

  • Click to share on Facebook (Opens in new window)
  • Click to share on Twitter (Opens in new window)
  • Click to share on WhatsApp (Opens in new window)
  • Click to print (Opens in new window)
  • Description
  • Features
  • Specifications
  • Delivery Info
  • Reviews (0)
Description

JVC GY-HC500U Handheld Connected Cam™ 1-Inch Camcorder

The JVC GY-HC500E is a handheld 4K professional camcorder for production that offers uncompromised image quality. Shoot 4K UHD with HDR, J-Log 1, and record to SSD (solid state drive) media in 10-bit Apple ProRes 422 at 4K UHD up to 60p/50p frame rates. You can also record UHD 30p/25p/24p, full HD or proxy files to SDHC/SDXC media.

The GY-HC500 CONNECTED CAM features high performance FHD live streaming with low latency and a full complement of IP remote control and viewing features. It’s truly the most advanced and versatile camcorder in its price range.

4K UHD 60p/50p Apple ProRes 422 10-bit Recording

The JVC GY-HC500E can record in Apple ProRes 422 for attention-grabbing 4K 60p/50p image creation. Apple ProRes 422 HQ offers virtually lossless intra-frame compression, which speeding up post-production. Footage is recorded in native file formats that are understood by most major editing applications without transcoding.

This is helpful for efficient workflow of editing and post process. The 4:2:2 format also provides richer color information and 10-bit recording delivers rich gradations—a definite advantage for grading work after recording.

High-Speed Recording for 1080p Slow Motion Playback

High-speed recording (1920×1080) at up to 120fps (59.94Hz)/100fps (50Hz) is available for smooth slow motion playback (up to 1/5 slow at 24p mode). It helps create artistic effects and lets you watch replays to examine sporting skills.

SSD Enables Extended Time 4K UHD 60p/50p Shooting

Large-capacity, readily-available SSDs (2.5″, M.2 SATA) are compatible, so extendedtime 4K UHD up to 60p/50p video recording is possible. Just plug it into the camera’s extended slot (using the optional SSD adapter KA-MC100G). SSD media delivers excellent sequential read speed to tackle professional workload. Highspeed transfer of huge amounts of recorded footage is possible.

Various Codecs and Recording Formats

High-speed recording (1920×1080) at up to 120fps (59.94Hz)/100fps (50Hz) is available for smooth slow motion playback (up to 1/5 slow at 24p mode). It helps create artistic effects and lets you watch replays to examine sporting skills

1″ CMOS 4K Image Sensor

JVC GY-HC500E features a 1-inch CMOS 4K image for uncompromised cinema and video production. This large sensor delivers a superior dynamic range, high S/N ratio and high sensitivity (F11 at 2000lx), contributing artistic visual expression
including shallow depth of field ’bokeh’ capability.

20x Optical/40x Dynamic Zoom Lens with Manual Functions

JVC GY-HC500E is equipped with a newly developed wide-angle 20x optical zoom lens to offer optimal magnification for shooting. When shooting in HD mode, Dynamic Zoom combines optical zoom and pixel mapping from a 4K image sensor to create seamless and lossless 40x zoom.

Take total control of the scene with triple large rings for zoom, focus, and iris for smooth shooting. Other features include an optical image stabilizer and chromatic aberration correction.

Robust Body and Excellent in Weather Resistance

Its robust body makes the JVC GY-HC500 ready to work in harsh environments and situations. Excellent construction in weather resistance enables image gathering in the field with confidence.

Features
  • 10-bit ProRes 422/422HQ/422LT, at 4K UHD resolution and 59.94p/50p/29.97p/25p/23.98p?recording to M.2 SSD**
  • 4K UHD 29.97p/25p/23.98p 4:2:2 10-bit or 4:2:0 8-bit (150Mbps)?and various HD recording to SDHC/SDXC card*
  • HDR recording, HLG or J-Log1 (10-bit)
  • 1-inch (effective) CMOS sensor with high picture quality
  • F11 Sensitivity
  • Newly-developed 3-ring 4K lens with 20x zoom (f=28mm-560mm 35mm equivalent)
  • 40x lossless dynamic zoom
  • 4-inch high resolution LCD monitor
  • LCOS Quad VGA viewfinder
  • XLR audio connectors
  • High performance 1080 60p/50p live streaming?(4K Rec + HD streaming + 4K HDMI output)
  • Low latency and high-quality streaming up to 20Mbps
  • LAN terminal (Streaming/IFB/Remote) in addition to USB host (v3.0)
  • Return over IP (Return video and IFB)
  • Auto FTP to upload native video clips automatically

* Recording media not included
** SSD media requires optional – KA-MC100G media adapter.

Specifications
GENERAL SPECIFICATIONS Power DC12V (AC adapter), DC7.2V (battery)
Power consumption Approx. 17.5W
Dimensions (W x H x D) 195 mm x 230mm x 445mm (with hood and viewfinder)
Weight 3.1kg (with hood and battery, without wireless LAN antenna unit)
Moisture protection Weather resistant
CAMERA Image sensor 1″ (effective) CMOS, effective number of pixels: approx 9.35 million
Stabilizer Optical image stabilizer
Sensitivity F11 at 2000lx 89.9% reflectance
Lens F2.8 (wide) to F4.5 (tele), f=9.43mm to 188.6mm (f=28mm to 560mm (35mm equivalent))
Filter diameter 82mm
Shutter speed 1/6 to 1/10000
ND filter Off, 1/4, 1/16, 1/64
Viewfinder 0.4″ LCOS Quad VGA (1280 x 960), 1280 x 720 at 16:9
LCD monitor 3.97″ LCD /WVGA (800 x 480), 800 x 450 at 16:9
VIDEO/AUDIO RECORDING Recording media SDHC/SDXC memory card x 2: 4K (150Mbps): UHS-1 U3, 4K (70Mbps)/HD (50Mbps): Class 10, HD (35Mbps): Class 6,
SD: Class 4, High-Speed: UHS-1 U3
SSD (M.2) with optional media case by JVC
Video codec Apple ProRes 422, MPEG-4 AVC/H.264 (HD/SD), MPEG-2 (HD)*
File format MOV, MP4
4K UHD 60p/50p 3840 x 2160, Apple ProRes 422 HQ/Apple ProRes 422/Apple ProRes 422 LT, 10-bit
4K UHD 30p/25p/24p (H.264) 3840 x 2160, 4:2:2 10-bit / 4:2:0 8-bit 150Mbps/70Mbps
HD (H.264) 1920 x 1080/1280 x 720, 4:2:2 10-bit / 4:2:0 8-bit mode, etc., 50Mbps ? 8Mbps
SD (H.264) 720 x 480 (U model)/720 x 576 (E/EU model), 8Mbps
Proxy (H.264) 960 x 540/480 x 270, 3 ? 1.2Mbps
Audio recording LPCM 2ch, 48kHz/16-bit (MOV), ?-Law 2ch (Proxy), AAC 2ch (MP4)
LIVE VIDEO STREAMING Protocol RTMP, MPEG2-TS/UDP, MPEG2-TS/TCP, MPEG2-TS/RTP, RTSP/RTP
Resolution and bit rate 1920 x 1080 (59.94p/50p) 20 ? 8Mbps, (29.97p/25p) 20 ? 3Mbps, 1920 x 1080 (59.94i/50i) 20 ? 3Mbps,
1280 x 720 (59.94p/50p) 20 ? 3Mbps, 1280 x 720 (29.97p/25p) 8 ? 1.5Mbps,
640 x 360 (59.94p/50p) 3/1.5Mbps, 640 x 360 (29.97p/25p) 3 ? 0.3Mbps
INTERFACES Video output 3G-SDI output (BNC x 1)
HDMI output x 1
AV output (?3.5mm mini jack x 1)
Audio input XLRx 2 (MIC, +48V/LINE), ?3.5mm mini jack x 1
Audio output AV output (?3.5mm mini jack x 1)
Headphone ?3.5mm mini jack x 1
Remote ?2.5mm mini jack x 1
Time code input/output RCA
USB HOST x 1 (network connection)
Ethernet RJ-45 x 1
Built-in slot Optional SSD media case and for future expansion
PROVIDED ACCESSORIES Battery (BN-VC296) x 1, AC adapter, power cable, lens hood, wireless LAN antenna x 2*
Delivery Info

How to shop TAX free in Singapore

7% Goods Service Tax (GST) will be imposed over the total invoice value if purchased locally in Singapore. However if you are a tourist visiting Singapore, this GST amount can be refunded at the Changi International Airport Departure Hall GST Refund Centre before departure with goods within 60 days from the date of purchase. Please note that only Tourists who have met the Tourist Refund Scheme’s conditions and eligibility criteria can claim for the GST refund. Visit the following link for GST Guide for Visitors on Tourist Refund Scheme. https://www.iras.gov.sg/IRASHome/GST/Consumers/Tourist-Refund-Scheme


All items that are available for purchase online are subjected to availability. For item that are available, a confirmation email will be sent to your registered email to show that your order had been processed and is ready for collection / to be delivered. In the event whereby the item ordered is unavailable, a notification email will be sent and refund will be initiated immediately.

Self-collect: Item will be ready for collection at our store once the confirmation email is received. Orders that are made on the Weekends or Public Holiday may take about 2-4 working days to process.

Delivery (Local, Singapore): Small items: Delivery will take approximately 3-5 working days (excluding weekends and public holidays) to be delivered upon confirmation of order. Orders will be delivered by Singpost or local couriers.

Large / Bulky items: Delivery will take approximately 7-10 working days (excluding weekends and public holidays) to be delivered upon confirmation of order. Orders will be delivered by Expandore.

Delivery (Overseas); Shipment will be arranged with our courier partners to be delivered to your shipping address.

If you have other enquirie’s for placing of order and delivery, you can refer to our FAQ here (https://www.expandore.sg/faq/) Or Contact us here (https://www.expandore.sg/contact-us/)

Reviews (0)

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.
