Name: JVC GY-HM170E 4K Compact Handheld Camcorder with Integrated 12X zoom lens
SKU: GY-HM170E
Price: 1441.00 USD
Availability: InStock

Description
Features
Specifications
Delivery Info
Reviews (0)

Description

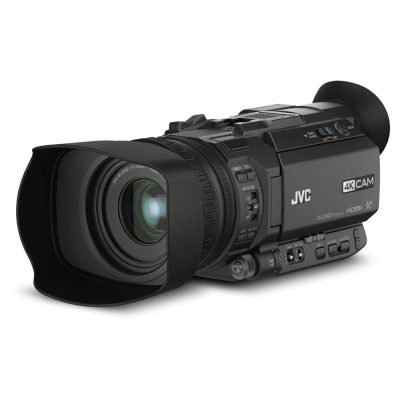

JVC GY-HM170E 4K Compact Handheld Camcorder

The JVC GY-HM170E is a fully functional high performance 4K Ultra HD camcorder that’s equally capable of shooting 4:2:2 Full HD at 50Mbps. Its integrated 12x optical zoom lens and 4K CMOS sensor, deliver razor sharp 4K Ultra HD recordings directly to SDHC/SDXC memory cards. It can even record on 2 cards simultaneously for instant backup or extended recording time.

Output live 4K UHD camera signals through the built-in HDMI connector. JVC GY-HM170E is shipped with a handle that provides professional audio connections and control. Remove the handle, and its tiny size allows you to shoot in venues that may be unfriendly to larger cameras.

Integrated 12x Ultra HD Lens, 1/2.3-inch CMOS Sensor

JVC GY-HM170E Ultra high quality imagery begins with a precision 12x F1.2-3.5 optical zoom lens (35mm equivalent: 29.5-354mm). JVC’s 4K CMOS sensor with 12.4M pixels delivers high sensitivity and excellent performance over a wide range of lighting conditions. Details are crisp and accurate throughout the entire image plane.

When shooting in the HD mode, Dynamic Zoom combines optical zoom and pixel mapping to create seamless and lossless 24x zoom. This allows the camera to have a long zoom range while retaining its small form factor. Shooters will also appreciate the convenient ND filter wheel: 0, 1/4th and 1/16th positions.

Dynamic Zoom for Lossless 24x Zoom

4K Ultra HD Recording at 150Mbps and Live Output

JVC GY-HM170E Working with 4K has never been easier! Insert an SDHC or SDXC (UHS-I Speed class3) memory card and record hours of 4K Ultra HD (3840 x 2160) material. Recordings are made using the Quicktime (.MOV) file format and are compatible with many popular editing systems.

Connect a 4K Ultra HD monitor with a single HDMI cable, and view the camera’s live 4K signal. You can also play back recorded files directly from the camera. The GY-HM170 also downconverts UHD signals to standard HD for output through the built-in HDMI connector.

4:2:2 and Full HD Recording at 50Mbps

The JVC GY-HM170E records 4:2:2 HD signals up to 60p at 50Mbps making it an ideal camera for general HD production work. 50Mbps files are stored in the Quicktime (.MOV) format for easy editing. Conventional AVCHD (4:2:0) recording is also possible, providing wide editing compatibility in an array of standard HD and SD formats.

120 fps Recording for Smooth Slow Motion

With high-speed recording at up to 120fps, the smooth slow motion feature can make incredible artistic effects for nature lovers, or help a sports coach or fan analzye an important play. (1920 x 1080 resolution only.)

Dual SDHC/SDXC Card Slots

Dual SDHC/SDXC card slots make the JVC GY-HM170E a truly versatile camcorder, offering such benefits as simultaneous recording and relay recording. In relay recording mode, you can shoot continuously and seamlessly over multiple cards. When one card is full, the camcorder switches seamlessly and automatically to the other card. And because cards are hot swappable, there is in effect no limit to the continuous shooting time in any mode, even with lower capacity cards.

Web Friendly (Proxy) file formats

JVC GY-HM170E Lower resolution H.264 files (480x270p and 960x540p) may be recorded simultaneously with full HD files. These files are significantly smaller than HD files, and thus are very suitable for immediate posting to the web. A file recorded in the 960 x 540 mode is approximately 1/10th the size of a full HD file recorded at 35 Mbps, and therefore takes a fraction of the time to post.

The smaller files may be quickly imported to an iPad for easy editing using iMovie or Pinnacle Studio. Transporting video to the web or back to the studio has never been faster.

Features

Single 1/2.3-inch CMOS image sensor with 12.4 million pixels
High quality integrated 12x F1.2-3.5 zoom lens (35mm equivalent: 29.5-354mm)
Dynamic Zoom in HD mode combines optical zoom and pixel mapping to create seamless and lossless 24x zoom.
4K Ultra HD recording (150 Mbps, 24/30p) to SDXC(UHS-I Speed class3) card
4:2:2 Full HD recording at 50Mbps (24-60p)
120 fps recording for smooth slow motion (coming December 2015)
Live 4K UHD output via HDMI connector
2 position ND filter (1/4, 1/16)
Built-in stereo microphone
Audio handle with 2 XLR connectors (as of 10/20/2015)
Dual SDHC/SDXC slots enable dual, backup and continuous recording
3.5-inch color LCD display (920K pixel) with smart focus assist function
0.24-inch color viewfinder (1.56M pixel) with smart focus assist function
Wired remote control supported
9 user button assignable functions
Includes BN-VF823 7.2V Battery, AC Adapter

Specifications

GENERAL SPECIFICATIONS
Power	DC 12V (AC adapter), DC 7.2V (Battery)
Power Consumption	Approx. 8.1W (with VF in 4K REC mode, default setting)
Weight	Approx. 1.11kg (including battery)
Dimensions	153 mm(W) x 112 mm(H) x 299 mm(D)
Operation temperature	0℃ to 40℃　(32°F to 104°F)
Storage temperature	-20℃ to 50℃ ( 14°F to 122°F)
Operating humidity	30% to 80%
Storage humidity	under 85%
CAMERA
Image Sensor	1/2.3-inch Back Side Illuminated CMOS Total 12.4M pixels
Synchronizing	Internal synchronization
Stabilizer	Optical image stabilizer
Shutter speed	1/4～ 1/10000
Lens	F1.2 (wide) to F3.5 (tele) f=4.67mm to 56.04mm 35mm equivalent: 29.5mm to 354mm
Filter diameter	62mm
Gain	0, 3, 6, 9, 12, 15, 18,21,24 dB, Lolux(30,36 dB), AGC
ND filter	none , 1/4, 1/16
LCD display	3.5-inch 920 k pixels, 16:9
Viewfinder	0.24-inch 1.56 M pixel, 16:9
VIDEO/AUDIO RECORDING
Recording media	2x SDHC/SDXC memory card (4K:UHS-1 U3 HD:50Mbps Class10, MOV HDClass 6 AVCHD Class4)
Video recording	Video codec: MPEG-4 AVC/H.264 (4K/HD) ,AVCHD(HD/SD) File format : MOV(H.264), MTS(AVCHD)
4K(H.264)	NTSC setting: 3840 x 2160/29.97p, 23.98p (70, 150 Mbps) PAL setting: 3840 x 2160/25p (70, 150Mbps
HD(H.264)	NTSC setting: YUV422 mode:1920 x1080/59.94p.29.97p,23.98p(50Mbps), XHQ mode: 1920×1080/59.94p,29.97p,23.98p(50Mbps) UHQ mode: 1920×1080/59.94i,29.97p, 23.98p(35Mbps) 1280×720/59.94p(35Mbps) PAL setting: XHQ mode:1920 x 1080/50p(50Mbps) XHQ mode:1920×1080/50p,50i,25p(50Mbps),1920×1080/50i,25p(35Mbps), 1280×720/50p(35Mbps)
AVCHD	NTSC setting: Progressive mode(Max 28Mbps):1920 x 1080/59.94p, HQ mode(24Mbps):1920 x 1080/59.94i, SP mode(17Mbps):1920 x1080/59.94i LP mode(9Mbps):1440 x 1080/59.94i, EP mode(5Mbps):1440 x1080/59.94i PAL setting: Progressive mode(Max 28Mbps):1920 x 1080/50p, HQ mode(24Mbps):1920 x 1080/50i, SP mode(17Mbps):1920 x1080/50i LP mode(9Mbps):1440 x 1080/50i, EP mode(5Mbps):1440 x1080/50i
SD(AVCHD)	NTSC setting: 720 x 480/59.94i SD(H.264) NTSC setting: 720 x 480/59.94i
Proxy(H.264)	NTSC setting: HQ mode(3Mbps):960 x 540/29.97p, 23.98p, LP mode(1.2Mbps):480 x 270/29.97p, 23.98p PAL setting: HQ mode(3Mbps):960 x 540/25p, LP mode(1.2Mbps):480 x 270/25p
Audio recording	LPCM 2ch, 48kHz/16-bit(4k/HD/SD MOV)), AC3 2ch(AVCHD), μlow 2ch(Proxy)
INTERFACE
Video output	AV output (φ3.5mm mini jack x1) HDMI output x1
Audio input	φ3.5mm mini jack x1
Audio output	AV output (φ3.5mm mini jack x1)
Headphone	φ3.5mm mini jack x1
Remote	φ2.5mm mini jack x1
USB	DEVICEx1(Mass storage)
INCLUDED ACCESSORIES
Battery(BN-VF823) x1, AC Adapter x1, XLR Audio Handle
