JVC GY-HM180U 4K Ultra HD Camcorder with Integrated 12x Lens

Description
Features
Specifications
Delivery Info
Reviews (0)

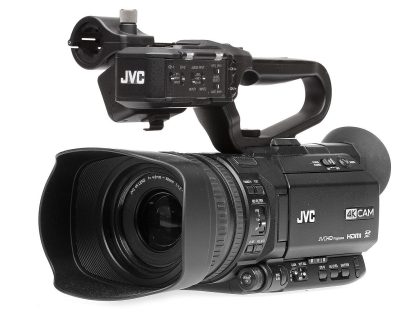

JVC GY-HM180U 4K Ultra HD Camcorder

The new JVC GY-HM180U sets a new benchmark for professional compact cameras with improved recording features over its predecessor. With full professional controls and an integrated 12x zoom lens it delivers stunning 4K Ultra HD video recordings directly to economical SDHC/SDXC memory cards. And, should you need to go-live, it you can output 4K through its HDMI connector, or HD through the newly added 3G-SDI output.

Integrated 12x Ultra HD Lens, 1/2.3-inch CMOS Sensor

Ultra high quality imagery begins with a precision 12x F1.2-3.5 optical zoom lens (35mm equivalent: 29.6–355mm). JVC GY-HM180U 4K CMOS sensor with 12.4M pixels delivers high sensitivity and excellent performance over a wide range of lighting conditions. Details are crisp and accurate throughout the entire image plane.

Dynamic Zoom for Lossless 24x Zoom

When shooting in the HD mode, Dynamic Zoom combines optical zoom and pixel mapping to create seamless and lossless 24x zoom. This allows the camera to have a long zoom range while retaining its small form factor. Shooters will also appreciate the convenient ND filter wheel: 0, 1/4th and 1/16th positions.

4K Ultra HD Recording at 150Mbps and Live Output

4K has never been so simple! Insert an affordable SDHC or SDXC (UHS-I Speed class 3) memory card into one of the two card slots and record hours of 4K Ultra HD (3840 x 2160) material. Connect a 4KUltra HD monitor with a single HDMI cable, and view the camera’s live 4K signal. You can also play back recorded files directly from the camera.

4:2:2 and Full HD Recording at 50Mbps

The JVC GY-HM180U records 4:2:2 signals up to 60p at 50Mbps making it an ideal camera for production work. Files are stored in the Quicktime (.MOV) format for easy editing. Conventional AVCHD (4:2:0) recording is also possible, providing wide editing compatibility in an array of standard HD and SD formats.

120 fps Recording for Smooth Slow Motion

With high-speed recording at up to 120fps, the smooth slow motion feature can make incredible artistic effects for nature lovers, or help a sports coach or fan analzye an important play. (1920 x 1080 resolution only.)

Dual SDHC/SDXC Card Slots

Dual SDHC/SDXC card slots make the GY-HM180U a truly versatile camcorder, offering such benefits as simultaneous recording and relay recording. In relay recording mode, you can shoot continuously and seamlessly over multiple cards. When one card is full, the camcorder switches seamlessly and automatically to the other card. And because cards are hot swappable, there is in effect no limit to the continuous shooting time in any mode, even with lower capacity cards.

Features

Single 1/2.3-inch CMOS image sensor with 12.4 million pixels
High quality integrated 12x F1.2-3.5 zoom lens (35mm equivalent: 29.5-354mm)
Dynamic Zoom in HD mode combines optical zoom and pixel mapping to create seamless and lossless 24x zoom.
4K Ultra HD recording (150 Mbps, 24/30p) to SDXC(UHS-I Speed class3) card
4:2:2 Full HD recording at 50Mbps (24-60p)
120 fps recording for smooth slow motion (coming December 2015)
Live 4K UHD output via HDMI connector
3G-SDI output for HD signals
2 position ND filter (1/4, 1/16)
Built-in stereo microphone
Audio handle with 2 XLR connectors (as of 10/20/2015)
Dual SDHC/SDXC slots enable dual, backup and continuous recording
3.5-inch color LCD display (920K pixel) with smart focus assist function
0.24-inch color viewfinder (1.56M pixel) with smart focus assist function
Wired remote control supported
9 user button assignable functions
Includes BN-VF823 7.2V Battery, AC Adapter

Specifications

GENERAL
Power	DC 12V (AC adaptor), DC 7.4V (battery)
Power consumption	Approx. 8.0W (with VF in 4K REC mode, default setting)
Weight	Approx. 1.1kg (including battery)
Dimensions	149 (W) x 191 (H) x 307 (D) mm
Operation temperature	0°C to 40°C
Storage temperature	-20°C to 50°C
Operating humidity	30% to 80%
Storage humidity	Under 85%
CAMERA
Image sensor	1/2.3-inch back-side illuminated CMOS, total 12.4M pixels
Synchronizing	Internal synchronization
Stabilizer	Optical image stabilizer
Shutter speed	1/6 — 1/10000
Lens	35mm equivalent: 29.6mm to 355mm
Filter diameter	62mm
Gain	0, 3, 6, 9, 12, 15, 18, 21, 24 dB, Lolux (30, 36 dB), AGC
ND filter	None, 1/4, 1/16
LCD display	3.5-inch 920 k pixels, 16:9
Viewfinder	0.24-inch 1.56 M pixel, 16:9
VIDEO/AUDIO RECORDING
Recording media	2x SDHC/SDXC memory card (4K (150Mbps): UHS-1 U3 4K (70Mbps), HD: 50Mbps Class 10, HD: 35Mbps Class 6, AVCHD/SD Class 4), High-Speed: UHS-1 U3
Video recording	Video codec: MPEG-4 AVC/H.264 (4K/HD/SD/Proxy), AVCHD (HD/SD) File format: MOV (H.264), MTS (AVCHD)
Audio recording	LPCM 2ch, 48kHz/16-bit (4k/HD/SD MOV), AC3 2ch (AVCHD), μ-law 2ch (Proxy)
INTERFACES
Video output	AV output (3.5mm mini jack x 1), SDI output (BNC x 1), HDMI output x 1
Audio input	XLR x2 (MIC, +48V/LINE), 3.5mm mini jack x 1
Audio output	AV output (3.5mm mini jack x 1)
Headphone	3.5mm mini jack x 1
Remote	2.5mm mini jack x 1
USB	DEVICE x 1 (mass storage)
PROVIDED ACCESSORIES	Handle unit, AC adapter x 1
