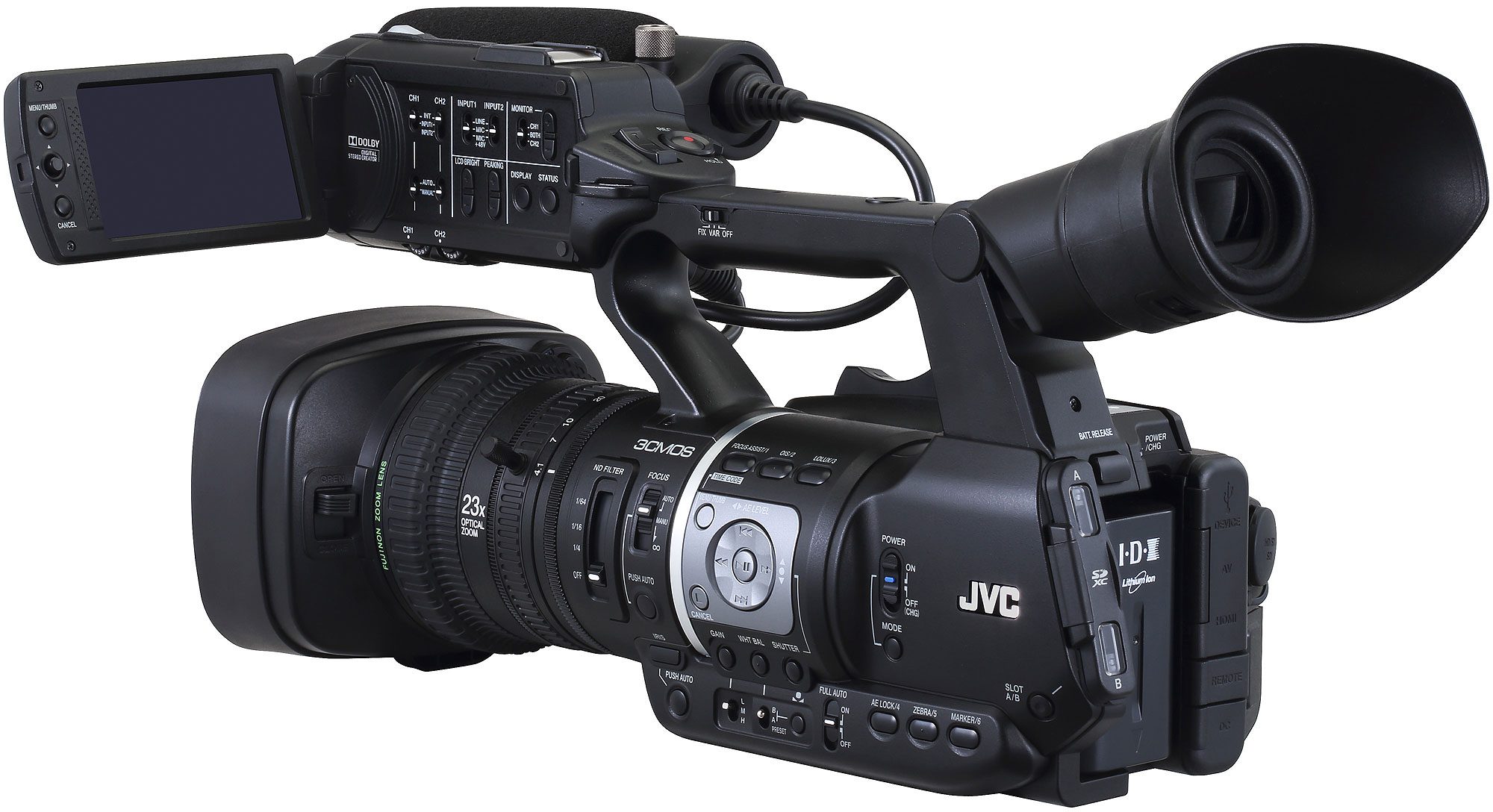

JVC GY-HM620 HD/SD Memory Card Camcorder

The Camcorder Still Evolving – Enhanced Operability to Make the Most of Any Moment

The JVC GY-HM620 is an advanced handheld ProHD camera that delivers unsurpassed imagery and other features for news, sports, and independent production. The new 620 has upgraded CMOS devices for greater sensitivity and a brighter LCD display for outdoor daylight viewing. Versatile and extremely easy to use, there’s no better camera for fast-paced HD field production.

23x Fujinon Auto Focus Zoom Lens with Manual Functions

The JVC GY-HM620 is equipped with a Fujinon wide angle 23x zoom lens that delivers superior low-light performance with brightness at the tele end. The lens offers F1.6-3.0, a focal range of 29mm-667mm (35mm equivalent) and includes servo zoom, manual focus, and iris rings, along with a four-position (clear, 1/4, 1/16 and 1/64) ND filter. Other features include an optical image stabilizer, chromatic aberration correction.

Affordable Recording & Storage

The JVC GY-HM620 is designed to create hours of pristine recordings on affordable non-proprietary SDHC media in a variety of image formats. Its dual codec design also allows you to make two copies of your program simultaneously. Dual SDHC/SDXC card slots offer recording and relay recording with reliable and cost-effective media. In relay recording mode, you can shoot continuously and seamlessly over multiple cards.

Professional Features & Controls

Features

Newly designed 1/3-inch 12-bit CMOS sensors (1920 x 1080 x 3)
F12 Sensitivity
23x Fujinon Auto focus zoom lens with manual functions?F1.6-3.0, 23x, f=4.1-94.3mm (35mm conversion:29 to 667mm)
Optical image stabilizer
3 position ND filter (1/4, 1/16, 1/64)
0.45-inch 1.22M pixel color viewfinder
Upgraded 3.5-inch 920K pixel LCD display with focus assist
SDXC/SDHC memory card recording (2 slots for dual-backup, continuous recording)
Large file size support with SDXC card
50Mbps H.264 Extreme High Quality mode (XHQ)
Multiple encoding formats:
- HD MPEG2 (35/25/19Mbps)
- AVCHD 1920×1080 60i
- 1080/60p recording capability
- SD H.264
Wide media format compatibility:
- .MOV (Final Cut Pro)
- .MP4 (XDCAM EX?)
- AVCHD
Professional switch layout and comprehensive video settings
Pre Rec (retro) mode (15 sec.)
Interval (time lapse) recording
Built-in stereo microphone
2-channel balanced audio inputs (mic/line switchable) w/phantom power supply
HD/SD-SDI, HDMI Outputs
Wired remote control connector
High performance 2D DNR

Specifications

GENERAL SPECIFICATIONS
Power	DC 12V (AC adaptor), DC 7.2V (Battery)
Power consumption	Approx. 12W (with VF and LCD monitor)
Dimensions	178(W) x 198(H) x 416(D)mm (7″ x 7-13/16″ x 16-3/8″)
Mass	Appro.2.4kg (5.3lbs):GY-HM620, 2.45kg(5.4lbs):GY-HM660 (Including battery)
Operating temperature	0 to 40 (32 to 104)
Storage temperature	-20 to 50 (14 to 122)
Operating humidity	35% to 80%
Storage humidity	Under 85%
CAMERA
Image sensor	1/3″ 2.2M pixels progressive scan 3CMOS
Synchronizing system	Internal synchronization
Stabilizer	Optical image stabilizer
Lens	Fujinon F1.6-3.0, 23x, f=4.1-94.3mm (35mm conversion:29 to 667mm)
Filter diameter	72mm
Shutter speed	1/4 to 1/10000
Gain	-6, -3, 0, 3, 6, 9, 12, 15, 18 dB, Lolux, ALC
ND filter	1/4, 1/16, 1/64
LCD display	3.5? 920K pixels, 16:9
Viewfinder	0.45? 1.22M pixels, 16:9
VIDEO/AUDIO RECORDING
Recording media	2x SDHC/SDXC memory card Class 6/10
Video recording	Video codec: MPEG2 Long GOP(HD), AVCHD, H.264(SD) File format: MOV(HD/SD:H.264), MP4(XDCAM EX), MTS(AVCHD), MXF(GY-HM660 only)
Recording mode	MPEG-2 Long GOP NTSC setting: HQ mode:1920 x 1080/59.94i, 29.97p, 23.98p, 1440 x 1080/59.94i, 1280 x 720/59.94p, 29.97p, 23.98p SP mode: 1440 x 1080/59.94i PAL setting: HQ mode:1920 x 1080/50i, 25p, 1440 x 1080/50i SP mode: 1440 x 1080/50i AVCHD NTSC setting: HQ mode:1920 x 1080/59.94i, SP mode:1920 x1080/59.94i PAL setting: HQ mode:1920 x 1080/50i, SP mode:1920 x1080/50i HD(H.264) NTSC setting: XHQ mode: 1920 x 1080/59.94p, 59.94i, 29.97p, 23.98p (50Mbps) UHQ mode: 1920 x 1080/59.94i, 29.97p, 23.98p (35Mbps) PAL setting: UHQ mode: 1920 x 1080/50p, 50i, 25p (50Mbps), 1920 x 1080/50i, 25p (35Mbps) SD(H.264) NTSC setting: 720 x 480/59.94i(GY-HM620U/HM660U only) PAL setting: 720 x 576/50i(GY-HM620E/HM660E only) Proxy(H.264) NTSC setting: LP/LV mode:480 x 270/29.97p, 23.98p PAL setting: LP/LV mode:480 x 270/25p
Audio recording	LPCM 2ch, 48kHz/16-bit(MPEG-2 Long GOP/H.264), AC3(AVCHD)
INTERFACE
Video output	AV output (f3.5mm mini jack x1) SDI output (BNC x1) HDMI output x1
Audio input	XLR x2 (MIC,+48V/LINE), f3.5mm mini jack x1
Audio output	AV output (f3.5mm mini jack x1)
Headphone	f3.5mm mini jack x1
Time code link input/output	RCA x1
Remote	f2.5mm mini jack x1
PROVIDED ACCESSORIES
Battery pack x1, AC adapter x1
