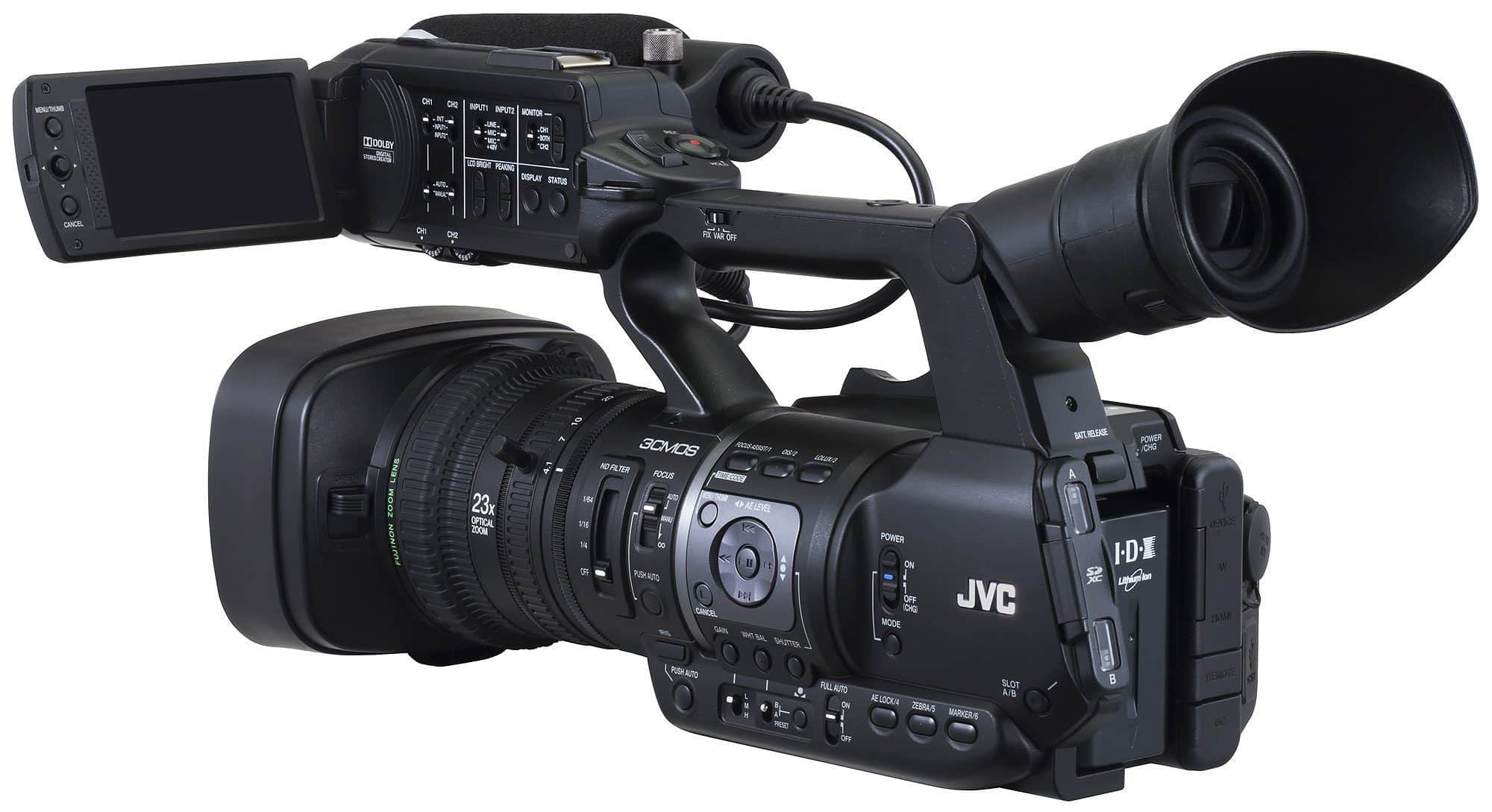

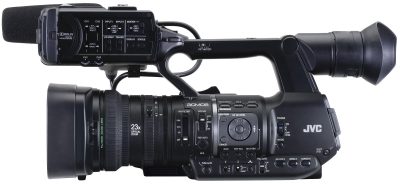

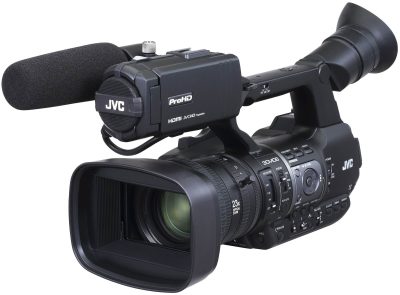

JVC GY-HM660U Handheld Mobile News Camera

JVC’s latest and most advanced handheld mobile news camera, JVC GY-HM660U, is small and light enough to be used anywhere while surpassing the performance of many traditional ENG style units. With the latest streaming engine offering selectable Zixi or SMPTE 2022 forward error correction (FEC), it offers reliable, high quality streaming without the use of a backpack or external encoder.

It’s the world’s first camcorder with a built-in IFB audio channel. With its long list of professional features including a (23x) wide angle lens and superb low light performance, the GY-HM660 is perfect for fast paced ENG.

New High Performance Full HD 1/3-inch CMOS Sensors

At the heart of the GY-HM660 are three, newly designed 1/3-inch CMOS sensors, each capable of capturing full HD 1920 x 1080 resolution images. Offering an excellent sensitivity of F12 (60Hz) /F13 (50Hz) and a remarkable signal-to-noise ratio, the devices provide superior precision and color reproduction.

23x Fujinon Auto Focus Zoom Lens with Manual Functions

The JVC GY-HM660U is equipped with a Fujinon wide angle 23x zoom lens that delivers superior low-light performance with brightness at the tele end. The lens offers F1.6-3.0, a focal range of 29mm-667mm (35mm equivalent) and includes servo zoom, manual focus, and iris rings, along with a four-position (clear, 1/4, 1/16 and 1/64) ND filter. Other features include an optical image stabilizer, chromatic aberration correction.

Wi-Fi and Broadband Connectivity, and FTP and Advanced Streaming

The JVC GY-HM660U USB 2.0 host connector supports an optional wired or Wi-Fi network adapter, or a broadband 3G/4G USB Stick. With connection to a LAN, WAN or internet, various wireless communications functions are available. A built-in web interface, allows remote viewing of camera images and wireless remote control when using a smartphone, tablet or PC.

Secure File Transfer Protocol (FTP) is also built-in. The GY-HM660 is also capable of live streaming w/advanced Zixi error correction and adaptive bitrate control, SMPTE 2022-1 Forward Error Correction, and RTMP protocol lets you stream content directly to content delivery networks such as USTREAM and YouTube.

Features

Newly designed 1/3-inch 12-bit CMOS sensors (1920 x 1080 x 3)
F12 Sensitivity —Improved
23x Fujinon Auto focus zoom lens with manual functions
F1.6-3.0, 23x, f=4.1-94.3mm (35mm conversion:29 to 667mm)
Optical image stabilizer
3 position ND filter (1/4, 1/16, 1/64)
0.45-inch 1.22M pixel color viewfinder
New, brighter 3.5-inch 920K pixel LCD display with focus assist —Upgraded
SDXC/SDHC memory card recording(2 slots for dual-backup, continuous recording)
Large file size support with SDXC card
50Mbps H.264 Extreme High Quality mode (XHQ)
Dual Codec: Recording simultaneously HD + SD or HD + 480 x 270 (for Web delivery)
Live streaming w/advanced Zixi error correction and adaptive bitrate control
SMPTE 2022 Forward Error Correction —New Feature!
Streaming withstands up to 50% packet loss in new high reliability mode—New Feature!
RTMP protocol lets you stream directly to YouTube
High bitrate streaming (up to 12 Mbps)
Background FTP clip transfers while recording
Clip trimmer (basic editor)
Multiple encoding formats:
- HD MPEG2 (35/25/19Mbps)
- AVCHD 1920×1080 60i
- 1080/60p recording capability
- SD H.264
- 480×270 H.264 (web)
- 960×540 H.264 mode
Wide media format compatibility:
- .MXF with rich Metadata (optimized for asset management)
- .MOV (Final Cut Pro)
- .MP4 (XDCAM EX™)
- AVCHD with additional lower bitrate AVCHD modes
Professional switch layout and comprehensive video settings
Pre Rec (retro) mode (15 sec.)
Interval (time lapse) recording
Built-in stereo microphone
Interruptable Foldback (IFB) audio channel* —New Feature!
2-channel balanced audio inputs (mic/line switchable) w/phantom power supply
HD/SD-SDI, HDMI Outputs
Wired remote control connector (LANC/Control-L)
Record UTC and position from built-in GPS
Enhanced web interface for remote viewing of camera images & wireless remote control from a smartphone, tablet or PC
Compatible with ProHD Broadcaster and Cloud server
Extensive metadata recording capability. Even allows insertion of metadata from remote web client!
FTP file upload via WiFi or Broadband
Secure FTP (SFTP or FTPS)
High performance 2D DNR

Specifications

GENERAL SPECIFICATIONS
Power		DC12V (AC adapter), DC7.4V (Battery)
Power consumption		Approx. 12 W (with VF in REC mode, default setting)
Dimensions		177.5 mm (W) x 197 mm (H) x 415.5 mm (D)
Weight		approx. 2.5 kg (including battery)
Operation temperature		0°C to 40°C
Storage temperature		-20°C to 50°C
Operating humidity		30% to 80%
Storage humidity		under 85%
CAMERA
Image sensor		1/3" CMOS 2.5M pixels
Synchronizing		Internal synchronization
Stabilizer		Optical image stabilizer
Lens		F1.6 (wide) to F3.0 (Tele) f=4.1mm to 94.3mm (f=29 mm to 667mm (35mm equivalent))
Filter diameter		72mm
Shutter speed		1/6 ~ 1/10000, EEI
Gain		(-6, -3: Extended mode only), 0, 3, 6, 9, 12, 15, 18,21,24 dB, Lolux (30,36 dB), AGC
ND filter		none, 1/4, 1/16, 1/64
LCD display		3.5-inch 920 k pixels, 16:9
Viewfinder		0.45-inch 1.22 M pixel, 16:9
VIDEO/AUDIO RECORDING
Recording media		2x SDHC/SDXC memory card (HD: Class 6/10 AVCHD/SD/Web: Class4)
Video recording	Video codec	MPEG-4 AVC/H.264 (HD/SD), MPEG-2 Long GOP VBR (HD) MPEG-2 Long GOP CBR (HD), AVCHD (HD/SD)
	File format	MOV, MP4, MTS (AVCHD), MXF
		NTSC setting: HQ mode:1920 x 1080/59.94i, 29.97p, 23.98p, 1440 x 1080/59.94i
		1280 x 720/59.94p, 29.97p, 23.98p (Max 35Mbps)
	HD (MPEG-2 Long GOP VBR)	PAL setting: HQ mode: 1920 x 1080/50i, 25p, 1440×1080/50i 1280 x 720/50i, 25p (Max 35Mbps)
	HD (MPEG-2 Long GOP CBR)	NTSC setting: SP mode: 1440×1080/59.94i, 1280×720/59.94p (18.3Mbps) PAL setting: SP mode: 1440×1080/50i, 1280×720/50p (18.3Mbps)
	HD (H.264)	NTSC setting: XHQ mode: 1920×1080/59.94p, 59.94i, 29.97p, 23.98p (Max 50Mbps) 1920×1080/59.94i, 29.97p, 23.98p (Max 35Mbps) PAL setting: XHQ mode: 1920 x 1080/50p, 50i, 25p (Max 50Mbps) 1920 x 1080/50i, 25p (Max 35Mbps)
	AVCHD	NTSC setting: Progressive mode (Max 28Mbps): 1920 x 1080/59.94p HQ mode (Max 24Mbps): 1920 x 1080/59.94i, SP mode (Max 18Mbps): 1920 x1080/59.94i LP mode (9Mbps): 1440 x 1080/59.94i, EP mode (5Mbps): 1440 x1080/59.94i PAL setting: Progressive mode (Max 28Mbps): 1920 x 1080/50p HQ mode (Max 24Mbps): 1920 x 1080/50i, SP mode (Max 18Mbps): 1920 x1080/50i LP mode (9Mbps): 1440 x 1080/50i, EP mode (5Mbps): 1440 x1080/50i
	SD (H.264)	NTSC setting: 720 x 480/59.94i (GY-HM660U) PAL setting: 720 x 576/50i (GY-HM660E/GY-HM660EC)
	Proxy (H.264)	NTSC setting: HQ mode (3Mbps): 960 x 540/29.97p, 23.98p, LP mode (1.2Mbps) 480 x 270/29.97p, 23.98p PAL setting: HQ mode (3Mbps): 960 x 540/25p, LP mode (1.2Mbps): 480 x 270/25p
	Audio recording	LPCM 2ch, 48kHz/16-bit (MOV/MP4), Dolby Digital, 2ch (AVCHD), μLaw 2ch (Proxy)
INTERFACE
Video output		AV output (ø3.5mm mini jack x1)
		SDI output (BNC x1)
		HDMI output x1
Audio input		XLR x2 (MIC,+48V/LINE), ø3.5mm mini jack x1
Audio output		AV output (ø3.5mm mini jack x1)
Headphone		ø3.5mm mini jack x1
Remote		ø2.5mm mini jack x1
Time code link input/output		RCA x1
USB		HOST x1 (Network Connection), DEVICE x1 (Mass storage)
PROVIDED ACCESSORIES
Battery (SSL-JVC50) x1, AC Adapter x1
