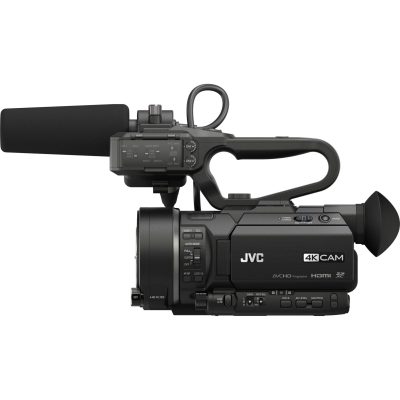

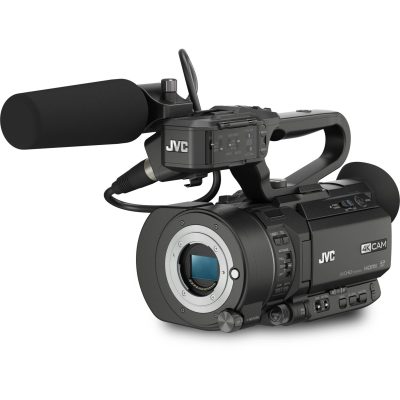

JVC GY-LS300 4KCAM Handheld Super 35 Camcorder
JVC GY-LS300 4KCAM Handheld Super 35 Camcorder
Click to enlarge
HomePro-VideoProfessional Camcorders4K Camcorder JVC GY-LS300 4KCAM Handheld Super 35 Camcorder (Body)

JVC GY-LS300 4KCAM Handheld Super 35 Camcorder (Body)

USD 3,327.00 excl. Tax

  • Newly developed 4K Super 35 CMOS image sensor
  • JVC Log to capture 800% dynamic range
  • Color matrix / Black paint adjustment
  • 120fps HD recording for smooth slow motion
Weight 4.5 kg
Add to wishlist
SKU: GY-LS300CHE Category: 4K Camcorder
  • Description
  • Features
  • Specifications
  • Delivery Info
  • Reviews (0)
Description

JVC GY-LS300 4KCAM Handheld Super 35 Camcorder (Body)

JVC GY-LS300 4KCAM Handheld Super 35 professional camcorder that offers filmmakers the flexibility to use high-end cinema lenses or affordable glass to capture 2K/4K footage.

Compact, convenient, and ultra high definition, JVC GY-LS300 4KCAM is equipped with a 4K Super 35 CMOS sensor and uniquely accommodates a wide range of cinema and photographic lenses and adapters for dazzling cinematic effects. Create hours of pristine recordings on SDHC/SDXC media in a variety of image formats including 4K Ultra HD, Full HD with 4:2:2 sampling, SD and web friendly proxy formats.

Its dual codec design allows you to make 2 copies of your program simultaneously. You can even stream live HD over the internet to content delivery networks such as USTREAM while recording full HD.

Conventional DSLR cameras simply can’t match the high reliability, long recording time and ergonomics provided by JVC GY-LS300 4KCAM. No other removable lens video camera offers this much flexibility in such a compact, easy-to-handle form
factor.

Super 35mm CMOS 4K Image Sensor


The JVC GY-LS300 4KCAM features a JVCKENWOOD 4K CMOS Super 35mm image sensor uniquely combined with an industry standard Micro Four Thirds (MFT) lens mount. Super 35mm Cinema lenses may be used and will retain their native angle of view.*

Micro Four Thirds Lens Mount & Variable Scan Mapping


When the camera is used with MFT, Super 16 and other size lenses, JVC’s proprietary Variable Scan Mapping feature will maintain the lens’s native angle of view. This gives filmmakers the flexibility of using widely available MFT lenses as well as high end cinema lenses. The unique combination of the MFT mount, the larger S35 image sensor and Variable Scan Mapping give the camera nearly limitless lens options.

4K Ultra HD Recording at 150Mbps and Live Output

JVC GY-LS300 4KCAM Working with 4K has never been easier! Insert an SDHC or SDXC (UHS-I Speed class 3) memory card and record hours of 4K Ultra HD (3840 x 2160) material. Recordings are made using the Quicktime (.MOV) file format and are compatible with many popular editing systems. Connect a 4K Ultra HD monitor with a single HDMI cable, and view the camera’s live 4K signal. You can also play back recorded files
directly from the camera.

4:2:2 Full HD Recording at 50Mbps

The ability to record 4:2:2 60p at 50 Mbps makes the GY-LS300 ideal for general HD production work. 50Mbps files are stored in the Quicktime (.MOV) format for easy editing. Conventional AVCHD (4:2:0) recording is also possible, providing wide editing compatibility in an array of standard HD and SD formats.

Live Streaming & FTP

The JVC GY-LS300 4KCAM built-in HD streaming engine with Wi-Fi and 4G LTE connectivity allows live HD transmission directly from the camera to your viewers while recording HD to one of the SDHC card slots. Streaming has never been easier now that you can deliver live HD to content delivery networks such as USTREAM and YouTube.

Features
  • Newly developed 4K Super 35 CMOS image sensor
  • JVC Log to capture 800% dynamic range
  • Color matrix / Black paint adjustment
  • 120fps HD recording for smooth slow motion**
  • Spot meter
  • Micro Four Thirds System Lens Mount
  • Variable Scan Mapping (VSM) maintains native angle of view for a variety of lenses including Super 35, MFT and Super 16.
    Adapters available for PL and EF mount lenses.
  • Prime Zoom feature links VSM to zoom rocker enabling lossless zoom with prime lens
  • Cinema 4K (4096 x 2160) 24p recording at 150 Mbps
  • Cinema 2K (2048 x 1080) 24p recording at 50 Mbps
  • 4K Ultra HD recording (150 Mbps, 24p/25p/30p) to SDHC/SDXC(UHS-I Speed class3) card
  • 4K Ultra HD recording (70 Mbps, 24/25p/30p) to SDXC/SDHC(Class 10) card
  • 4:2:2 Full HD recording at 50Mbps (24p-60p)
  • 3 position ND filter (1/4, 1/16 and 1/64)
  • HD-SDI (3G) and HDMI outputs (4K output via HDMI only)
  • HD-SDI and HDMI outputs can feed and trigger external recorder
  • 2-channel XLR audio inputs with phantom power
  • Shotgun microphone included
  • Dual SDHC/SDXC slots enable Dual, Backup and Continuous recording
  • Advanced JVC streaming engine
  • IP Network Remote Control, Remote Viewing, Metadata editing, FTP clips*
  • 3.5-inch color LCD display (920K pixel) with smart focus assist function
  • 0.24-inch color viewfinder (1.56M pixel) with smart focus assist function
  • Histogram Display
  • Wired remote control supported
  • 10 user button assignable functions
  • Includes handle unit, SSL-JVC50 7.4V battery, AC Adapter and shotgun microphone

*Requires appropriate network connection and adapter
**Requires Version 3.0 upgrade available April 2016

Specifications
GENERAL SPECIFICATIONS
Power
DC 12V (AC adaptor), DC 7.4V (Battery)
Power Consumption
Approx. 9.8W (HD) (with VF in REC mode, default setting)
Weight
Approx. 3.6lbs (including battery)
Dimensions
135(W) x 191(H) x 359(D)mm
Operation temperature
0? to 40?? (32°F to 104°F)
Storage temperature
-20? to 50? ( 14°F to 122°F)
Operating humidity
30% to 80%
Storage humidity
under 85%
CAMERA
Image Sensor
Super 35 13.5 M pixels progressive scan CMOS
Synchronizing
Internal synchronization
Lens mount
Micro Four thirds system mount
Shutter speed
1/6 ? 1/10000
Gain
0, 3, 6, 9, 12, 15, 18,21,24 dB, Lolux(30,36 dB), AGC
ND filter
none , 1/4, 1/16, 1/64
LCD display
3.5-inch 920 k pixels, 16:9
Viewfinder
0.24-inch 1.56 M pixel, 16:9
VIDEO/AUDIO RECORDING
Recording media
2x SDHC/SDXC memory card (4K:UHS-1 U3 HD:50Mbps Class10, HD:35Mbps Class 6, AVCHD/SD Class 4)
Video recording
Video codec: MPEG-4 AVC/H.264 (4K/HD/SD/Proxy) ,AVCHD(HD/SD)
File format : MOV(H.264), MTS(AVCHD)
4K(H.264)
NTSC setting: 3840 x 2160/29.97p, 23.98p (70,150 Mbps)
PAL setting: 3840 x 2160/25p (70,150 Mbps)
Cinema 4K: 4096 x 2160/24p, 23.98p (70,150 Mbps)
HD(H.264)
NTSC setting:
YUV422 mode:1920 x1080/59.94p, 59.94i,29.97p, 23.98p (50Mbps),
Cinema 2K: 2048 x1080/24p ,23.98p (50Mbps)
XHQ mode: 1920×1080/59.94p, 59.94i, 29.97p, 23.98p(50Mbps)
UHQ mode: 1920×1080/59.94i,29.97p, 23.98p(35Mbps) 1280×720/59.94p(35Mbps)
PAL setting: YUV422 mode:1920 x 1080/50p, 50i, 25p (50Mbps)
XHQ mode:1920×1080/50p,50i,25p(50Mbps),1920×1080/50i,25p(35Mbps), 1280×720/50p(35Mbps)
AVCHD
NTSC setting: Progressive mode(Max 28Mbps):1920 x 1080/59.94p,
HQ mode(24Mbps):1920 x 1080/59.94i, SP mode(17Mbps):1920 x1080/59.94i
LP mode(9Mbps):1440 x 1080/59.94i (Web mode), EP mode(5Mbps):1440 x1080/59.94i (Web mode)
PAL setting: Progressive mode(Max 28Mbps):1920 x 1080/50p,
HQ mode(24Mbps):1920 x 1080/50i, SP mode(17Mbps):1920 x1080/50i
LP mode(9Mbps):1440 x 1080/50i (Web mode), EP mode(5Mbps):1440 x1080/50i (Web mode)
SD(MOV/AVCHD)
NTSC setting: 720 x 480/59.94i (8 Mbps)
Proxy(H.264)
NTSC setting: HQ mode(3Mbps):960 x 540/29.97p, 23.98p, LP mode(1.2Mbps):480 x 270/29.97p, 23.98p
PAL setting: HQ mode(3Mbps):960 x 540/25p, LP mode(1.2Mbps):480 x 270/25p
Audio recording
LPCM 2ch, 48kHz/16-bit(4k/HD/SD MOV)), AC3 2ch(AVCHD), μlow 2ch(Proxy)
LIVE VIDEO STREAMING
Protocol
RTMP, MPEG2-TS/UDP, MPEG2-TS/TCP, RTSP/RTP, ZIXI
Bitrate
0.2 – 12 Mbps
Resolution
1920×1080, 1280×720, 720×480, 480×270
INTERFACE
Video output
AV output (φ3.5mm mini jack x1)
SDI output (BNC x1)
HDMI output x1
Audio input
XLR x2 (MIC,+48V/LINE), φ3.5mm mini jack x1
Audio output
AV output (φ3.5mm mini jack x1)
Headphone
φ3.5mm mini jack x1
Remote
φ2.5mm mini jack x1
USB
HOST x1(Network Connection) , DEVICEx1(Mass storage)
Supported devices: Verizon, AT&T 4G LTE modems, Wi-Fi and LAN adapters
Network Function
Live Video Streaming, FTP, Remote Control
INCLUDED ACCESSORIES
Handle unit, Battery(SSL-JVC50) x1, AC Adapter x1, Shotgun microphone x1
