Micro Converter BiDirectional SDI/HDMI 3G
Click to enlarge
HomePro-VideoVideo AccessoriesConverter Blackmagic Micro Converter BiDirectional SDI/HDMI 3G

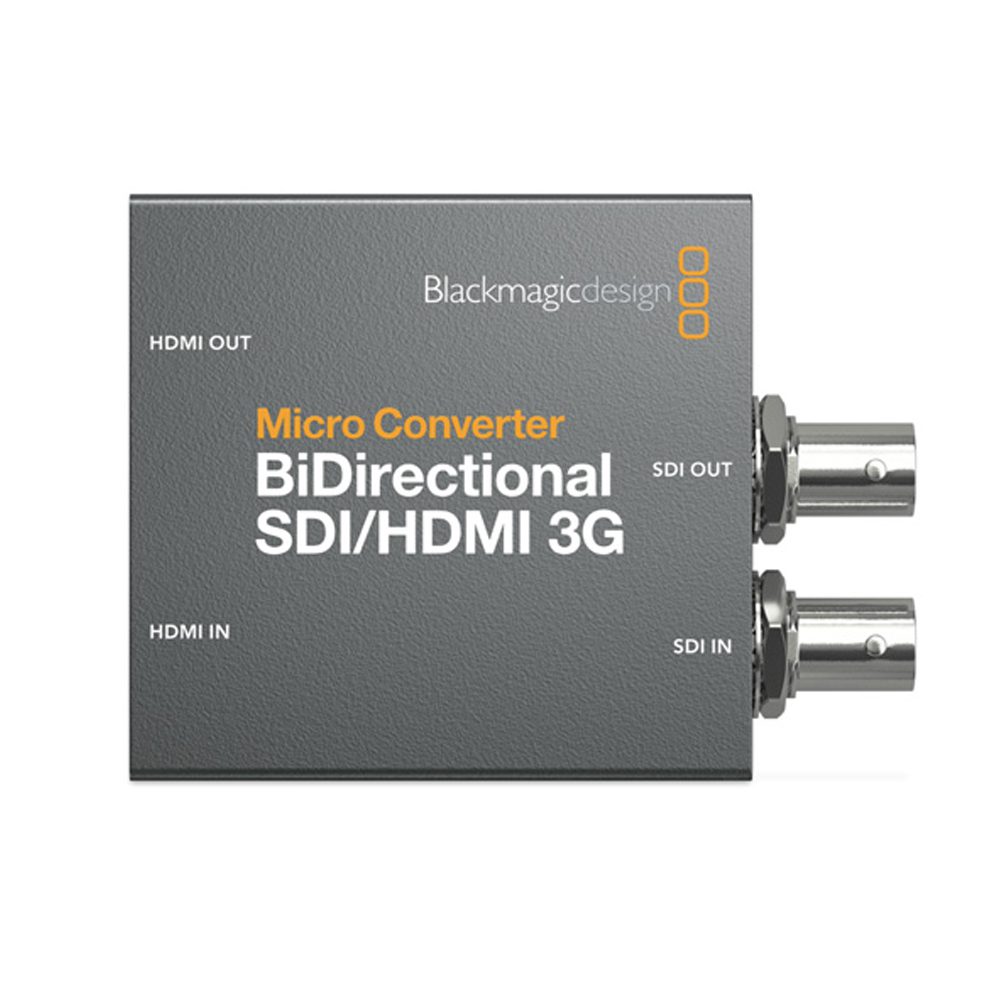

Blackmagic Micro Converter BiDirectional SDI/HDMI 3G

Weight N/A
Choose Product Variant

Micro Converter BiDirectional SDI/HDMI 3G, Micro Converter BiDirectional SDI/HDMI 3G wPSU

Clear
Add to wishlist
SKU: N/A Category: Converter

Share this:

  • Click to share on Facebook (Opens in new window)
  • Click to share on Twitter (Opens in new window)
  • Click to share on WhatsApp (Opens in new window)
  • Click to print (Opens in new window)
  • Description
  • Features
  • Specifications
  • Delivery Info
  • Reviews (0)
Description

Blackmagic Micro Converter BiDirectional SDI/HDMI 3G

Blackmagic Micro Converter BiDirectional SDI/HDMI 3G are incredibly tiny broadcast video converters that let customers connect between consumer HDMI and professional SDI equipment. The rugged and miniaturized design makes them small enough to be used anywhere. Customers get professional 3G‑SDI connections for working with all SD and HD formats up to 1080p60.

Blackmagic Micro Converter BiDirectional SDI/HDMI 3G use USB for power, so they can be powered directly from televisions or laptop computers. Customers can even purchase them without power supplies if they are not needed. Only Blackmagic Micro Converters feature custom designed electronics that conform to current global broadcast specifications, and can be updated to new standards in the future.

Because they are extremely high quality, customers can trust them for all kinds of broadcast, live production and on set use. Use them for turning any computer display, television or video projector into high quality color calibrated broadcast monitoring.

They’re also perfect for converting the HDMI outputs of computers and consumer video cameras to high end SDI equipment. Imagine using a slide show running on a computer for high end broadcast quality titles in live production. Customers could even use them for extending long HDMI distances using SDI.

Unlike other small SDI converters, Blackmagic Micro Converters feature the highest quality broadcast technology, miniaturized into an incredibly strong metal enclosure. Each converter has industrial standard 3G‑SDI and HDMI connections with strong high quality connectors. Blackmagic Micro Converter BiDirectional SDI/HDMI 3G include a USB connection for power, as well as changing settings via the converter utility on Mac and Windows.

Because the USB powers the converter, customers can even power it from televisions or laptop computers. There are even LEDs for power and video status. Customers can also buy Blackmagic Micro Converters with an AC power supply including 4 adapters for international use.

Unlike cheap converters, Blackmagic Micro Converters include the highest quality signal processing and deep bit depth video pipeline. Micro Converters have been engineered with precision electronics so customers get very low SDI jitter, allowing customers to extend SDI cables over long distances. That’s vital for live production where equipment such as cameras can be a long distance from switchers.

Blackmagic Micro Converter BiDirectional SDI/HDMI 3G work with both 8 and 10‑bit video formats, in RGB or YUV, and in all SD and HD formats up to 1080p60. They even support 1080p24, 1080p47.95 and 1080p48 film rates. Plus customers get fully embedded audio and timecode support.

Customers can also change settings and update the converter software with the free converter utility that can be downloaded from the Blackmagic Design web site. This software connects to the USB connection on the Micro Converters and runs on both Mac and Windows computers. Customers can use the utility to change the converter name, which can be useful for identifying which converter is used for which task.

When using the bidirectional converter, customers can even set the camera number, so the converter knows when it’s being controlled from a live production switcher. Customers can also select between level A and level B on the 3G-SDI video output.

Micro Converter BiDirectional SDI/HDMI 3G model even includes a 3D LUT for color accurate monitoring. Customers can apply custom looks, color and gamma changes in real time for on set monitoring. LUTs can also be applied to the 3G‑SDI loop output, allowing customers to use the converter as a 3D LUT processor. Customers can also use 3D LUTs to get a color calibrated grading monitor using a low cost computer monitor or TV.

Customers can even use the DaVinci Resolve primary color corrector to create amazing looks and then save them as custom 3D LUTs. Because DaVinci Resolve can be downloaded free, it costs nothing to start creating a world of custom 3D LUTs for monitoring. Imagine reproducing old film stocks.

Features
  • Extremely small design for portable operation.
  • Supports upgrading software via USB connection.
  • Includes 3D LUT for monitoring on SDI to HDMI model.
  • Includes camera control features for Blackmagic ATEM switchers.
  • Supports 3G-SDI and HDMI timecode standards.
  • Features 3G-SDI technology with built in SDI re‑clocking.
  • Supports all video standards in NTSC, PAL, 720 HD and 1080 HD.
  • Models can be purchased with or without power supply.
Specifications
Connections
SDI Video Inputs 1 x SD, HD or 3G-SDI.
SDI Video Outputs Automatically matches the HDMI video input.
HDMI Video Inputs HDMI Type A in.
HDMI Outputs HDMI Type A out.
Multi Rate Support Auto detection of SD or HD.
Updates, Configurations and Power USB Type‑C.
Reclocking Yes
Standards
SDI Video Standards 525i59.94 NTSC, 625i50 PAL
HD Video Standards 720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI
2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M
SDI Video Rates SDI video connections are automatically switchable between standard definition and high definition, and user selectable for level A or B via setup utility.
SDI Color Precision 4:2:2
SDI Color Space YUV
SDI Auto Switching Automatically detects SD, HD and 3G-SDI
HDMI Video Standards 525i29.97 NTSC, 625i25 PAL
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60
HDMI Color Precision 4:2:2
HDMI Color Space YUV
Power Requirements
Power Consumption 2.5 W
Operational Voltage Range 4.4 to 5.25V DC
Environmental Specifications
Operating temperature 0° to 40° C (32° to 104° F)
Storage temperature -20° to 60° C (-4° to 140° F)
Relative Humidity 0% to 90% non-condensing
Delivery Info

How to shop TAX free in Singapore

7% Goods Service Tax (GST) will be imposed over the total invoice value if purchased locally in Singapore. However if you are a tourist visiting Singapore, this GST amount can be refunded at the Changi International Airport Departure Hall GST Refund Centre before departure with goods within 60 days from the date of purchase. Please note that only Tourists who have met the Tourist Refund Scheme’s conditions and eligibility criteria can claim for the GST refund. Visit the following link for GST Guide for Visitors on Tourist Refund Scheme. https://www.iras.gov.sg/IRASHome/GST/Consumers/Tourist-Refund-Scheme


All items that are available for purchase online are subjected to availability. For item that are available, a confirmation email will be sent to your registered email to show that your order had been processed and is ready for collection / to be delivered. In the event whereby the item ordered is unavailable, a notification email will be sent and refund will be initiated immediately.

Self-collect: Item will be ready for collection at our store once the confirmation email is received. Orders that are made on the Weekends or Public Holiday may take about 2-4 working days to process.

Delivery (Local, Singapore): Small items: Delivery will take approximately 3-5 working days (excluding weekends and public holidays) to be delivered upon confirmation of order. Orders will be delivered by Singpost or local couriers.

Large / Bulky items: Delivery will take approximately 7-10 working days (excluding weekends and public holidays) to be delivered upon confirmation of order. Orders will be delivered by Expandore.

Delivery (Overseas); Shipment will be arranged with our courier partners to be delivered to your shipping address.

If you have other enquirie’s for placing of order and delivery, you can refer to our FAQ here (https://www.expandore.sg/faq/) Or Contact us here (https://www.expandore.sg/contact-us/)
