Description

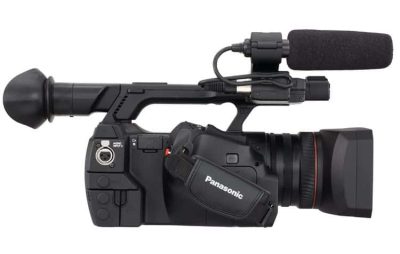

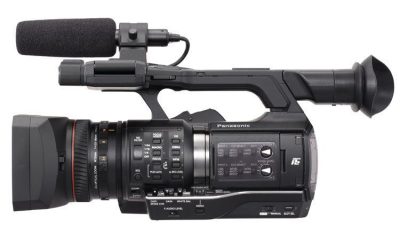

Panasonic AJ-PX270 microP2 Handheld AVC-ULTRA HD Camcorder

The Panasonic AJ-PX270 is the first P2 HD handheld camcorder that features AVC-ULTRA recording, delivering the high quality and incredible efficiency of low-bit-rate recording, the creative controls of a high-end shoulder production camera and the flexibility of 3G/4G/LTE wireless connectivity ? all in a compact, 5-lb. package.

It’s the ultimate news acquisition tool, perfect for a wide range of sports, corporate, education and event applications. The Panasonic AJ-PX270 allows you to shoot anything, anywhere ? from the street, to the studio, to the set ? with incredible speed and control.

AVC-ULTRA Codec Family Provides a Wide Range of Recording Bit Rates

With its innovative AVC-ULTRA codec; the Panasonic AJ-PX270 features both low-bit rate and normal recordings. For high quality recording; the camera records in 100Mbps AVC-Intra100; as well as 200 Mbps AVC-ULTRA Class 200 (optional).

For applications where file size is critical; e.g.; for wireless feeds; the Panasonic AJ-PX270 records in low-bit rate AVC-LongG for extended recording and AVC-LongG25 enables extended 1920 x 1080 10-bit 4:2:2 broadcast-quality recording (four times longer than AVC-Intra100 for the same memory space).

New 22x Zoom Lens with Three Manual Rings

A newly designed; compact; 22X zoom lens offers a wide 28 mm to tele 616 mm (35mm equivalent) zoom range. Its three manual operation lens rings zoom; focus and iris — provide a comfortable manual control similar to interchangeable lenses; but without the need for actual lens changes. The zoom ring’s solid feel and smooth action allows delicate ultra-slow zooming.

In addition; the camera’s multi-step zoom control provides fast response and smooth zoom action; providing the creative freedom every camera operator wants. And the zoom control on the handle enables variable speed zoom; allowing fine zoom control even for low angle shots.

Network Function with Wireless Connection

Networking functions are included as standard; and options are available to allow for proxy video to be automatically uploaded to the cloud and for compatibility with a planned cloud workflow; allowing immediate editing from a remote location.

The Panasonic AJ-PX270 features a Wireless LAN function via an optional Wireless LAN dongle and supports the existing Panasonic live uplink solutions. Dongle support for wireless workflow over a mobile 3G/4G/LTE network is also scheduled for the near future. Thanks to these wireless features; users of the Panasonic AJ-PX270 can easily uplink low-bit rate proxy data and full quality broadcast content.

The handheld camera’s network function makes the production work-flow more efficient and accelerates the broadcasting work-flow from shooting to on-air.

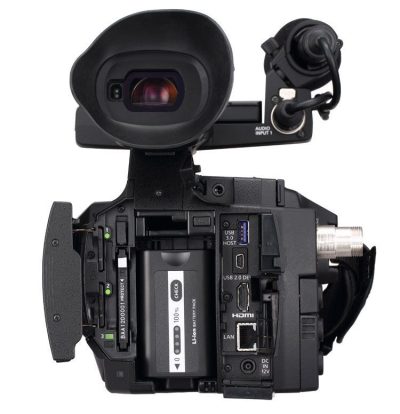

Two microP2 Card Slots

Two microP2 card slots enable the ultimate cost-effective operation. The microP2 card; with the same reliability as the P2 card; can be used without an adapter

Click to rate this post!

[Total: 0 Average: 0]

Specifications

General
Power	DC 7.2 V (when the battery is used) DC 12 V (when the AC adaptor is used)
Power consumption	19.5 W (when the LCD monitor is used)
Operating Temperature	0 °C to 40 °C (32 °F to 104 °F)
Operating Humidity	10 % to 80 % (no condensation)
Weight	Approx. 2.2 kg (4.9 lbs.) (body only, excluding lens hood, battery, and accessories) Approx. 2.6 kg (5.7 lbs.) (including lens hood, supplied battery, and microphone holder)
Dimensions	176 mm(H) x 171 mm(W) x 329 mm (D) (excluding protrusion) (6-15/16 inches × 6-23/32 inches × 12-15/16 inches)
Camera Unit
Pickup Device	1/3-type 2.2 million pixels, MOS solid state image sensor × 3
Lens	Optical image stabilizer lens, optical 22x motorized zoom F1.6 to F3.2 (f=3.9 mm to 86 mm) 35 mm conversion: 28 mm to 616 mm (16:9)
Filter Diameter	72 mm
Optical System	Prism system
ND Filter	OFF, 1/4, 1/16, 1/64
Shortest Shooting Distance	1.1 m from the front lens Approx. 0.06 m from front lens (When Macro=On, at wide-end)
Gain Setting	L/M/H selector switch−3 dB to 18 dB (in 1 dB steps) (Negative value of gain is only in [HIGH SENS.] mode.) (When assigning [S.GAIN] to the USER button: Switching between 24 dB, 30 dB, and 36 dB)
Color Temperature Setting	ATW, ATW LOCK, Ach, Bch, preset 3200 K/preset 5600 K/VAR (2000 K to 15000 K)
Shutter Speed	When [SYSTEM MODE] = 59.94 Hz • 60i/60p mode: 1/60 (shutter off) sec., 1/100 sec., 1/120 sec., 1/250 sec., 1/500 sec., 1/1000 sec., 1/2000 sec. • 30p mode: 1/30 sec., 1/50 (shutter off) sec., 1/60 sec., 1/120 sec., 1/250 sec., 1/500 sec., 1/1000 sec., 1/2000 sec. • 24p mode: 1/24 sec., 1/50 (shutter off) sec., 1/60 sec., 1/120 sec., 1/250 sec., 1/500 sec., 1/1000 sec., 1/2000 sec. When [SYSTEM MODE] = 50 Hz • 50i/50p mode: 1/50 (shutter off) sec., 1/60 sec., 1/120 sec., 1/250 sec., 1/500 sec., 1/1000 sec., 1/2000 sec. • 25p mode: 1/25 sec., 1/50 (shutter off) sec., 1/60 sec., 1/120 sec., 1/250 sec., 1/500 sec., 1/1000 sec., 1/2000 sec
Slow Shutter Speed	Setting is possible when [VFR]=[OFF] When [SYSTEM MODE] = 59.94 Hz • 60i/60p mode: 1/1 sec., 1/2 sec., 1/4 sec., 1/6 sec., 1/15 sec., 1/30 sec. • 30p mode: 1/1 sec., 1/2 sec., 1/4 sec., 1/6sec., 1/15 sec. • 24p mode: 1/1 sec., 1/2 sec., 1/4 sec., 1/6 sec., 1/12 sec. When [SYSTEM MODE] = 50 Hz • 50i/50p mode: 1/1 sec., 1/2 sec., 1/4 sec., 1/6 sec., 1/12 sec., 1/25 sec. • 25p mode: 1/1 sec., 1/2 sec., 1/4 sec., 1/6 sec., 1/12 sec.
Digital Zoom	x2/x5/x10
Video input/output
SDI OUT	BNC × 1, HD (3G/1.5G), SD: 0.8 V [p-p], 75 Ω
VIDEO OUT	BNC × 1, Also used as the GENLOCK IN, IN/OUT switch selection Composite: 1.0 V [p-p], 75 Ω
HDMI OUT	HDMI × 1 (HDMI type A terminal, not compatible with VIERA Link)
Audio input
Built-in Microphone	Supports stereo microphone
AUDIO INPUT 1/AUDIO INPUT 2	XLR × 2, 3 pin.Input high impedance, LINE/MIC switch selection LINE: 4 dBu/0 dBu (selectable menu) MIC: −40 dBu/−50 dBu/−60 dBu (selectable menu), +48 V on/off (switch selection)
Audio output
AUDIO OUT	3.5 mm diameter stereo mini jack × 1, Output level: 600 Ω, 316 mV
Headphones	3.5 mm diameter stereo mini jack × 1 100 Ω, −16 dBV (32 Ω load, at maximum output level)
Speaker	20 mm diameter, round × 1
Monitor
LCD Monitor	3.5 type QHD color monitor (Approx. 1560000 dots)
Viewfinder	0.5 type OLED (organic EL display) (Approx. 2360000 dots, video display area: Approx. 1770000 dots)

Click to rate this post!

[Total: 0 Average: 0]

In The Box

Battery (VW-VBD58)
Shoulder strap
Battery charger
AC adaptor
Microphone holder
Screw for microphone holder (12 mm)
Power code x 2, Eye cup
Lens hood
Grip belt
