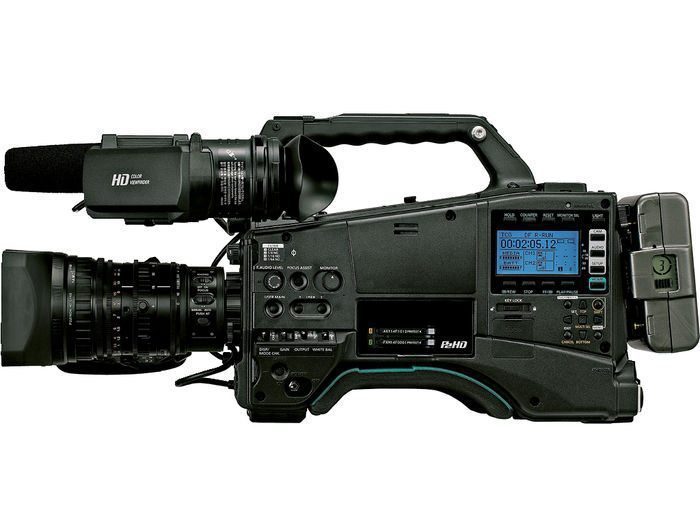

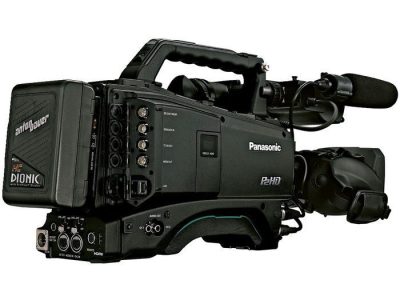

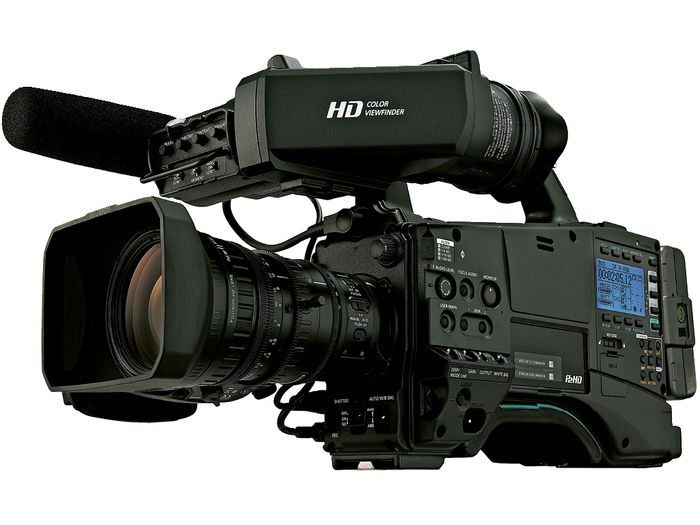

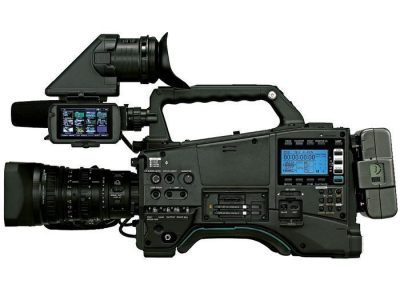

Panasonic AJ-PX800 P2 HD 2/3″ 3MOS AVC-ULTRA Shoulder Camcorder (Body Only)

Panasonic AJ-PX800 a new 2/3-inch; three-chip shoulder-mount camcorder with AVC-ULTRA recording. Weighing a little over 6 pounds; the Panasonic AJ-PX800 is the industry’s lightest camcorder in its class. Delivering the trifecta of low weight; low power consumption and affordability; the Panasonic AJ-PX800 is ideal for virtually all broadcasting needs as well as sports or live events.

Built-in network functions support wired LAN; wireless LAN and 4G/LTE connections; enabling on-site preview; streaming and uploading data to a server quickly and easily at low cost with a PC/Mac; tablet or smartphone; or users can connect to the camera via WiFi to control; add or edit metadata; view proxies; or watch live streaming for logging or monitoring.

Panasonic’s multi-codec AVC-ULTRA offers master-quality and/or low-bit-rate 10-bit; 4:2:2 recording in full raster HD to meet a variety of user needs from mastering to transmission. Addressing the need for high-speed file exchange; its high-resolution AVC-Proxy encodes in parallel with higher bandwidth production formats; enabling fast; efficient offline editing; at bit rates from 6 megabits down to 800 kilobits per second.

The Panasonic AJ-PX800 records in AVC-LongG to provide on-air content direct from the shooting location and for workflows using content transferred over the internet. The camera offers three AVC-LongG bit rates: AVC-LongG50/25 providing10 bit/4:2:2 quality at bit rates of approximately 50/25 Mbps; and the more economical AVC-LongG12; which is optimized for field wireless workflows.

The Panasonic AJ-PX800’s compact body provides superb mobility; along with low power consumption of 22W. The 2.2 megapixel 2/3 type 3MOS (RGB) image sensors offer full-pixel HD (1920 x1080) resolution; F12 (59.94 Hz) or F13 (50 Hz) sensitivity and low noise with an S/N of 62 dB (with DNR ON). It also achieves rich gradation and vibrant color reproduction. The shoulder-type design allows the use of a variety of interchangeable B4 mount 2/3-inch lenses.

The Panasonic AJ-PX800 can record in AVC-Intra100/50 (1080/60i; 50i; 30p; 25p; 24p and 720/60p;50p; 30p; 25p; 24p); DVCPRO HD; DVCPRO50; DVCPRO and DV; and is 50 Hz and 59.94 Hz switchable for worldwide use. The camcorder will be equipped with Chromatic Aberration Compensation (CAC) to maximize lens performance; Dynamic Range Stretch (DRS) function to help compensate for wide variations in lighting; a highly accurate flash band detection and compensation algorithm that minimizes this effect; and a 12 + 3 skin tone Axis Matrix Control.

The Panasonic AJ-PX800 delivers seven-mode gamma selection and extensive digital image settings; there are two P2 card slots (microP2 cards can be used with an adaptor) and an SD card slot for proxy/metadata recording.?Professional interfaces include MON out (can be set to output HD-SDI); HDMI out; HD/SD-SDI in/out; genlock in for multi-camera operation; timecode in/out; USB 2.0 (Host and Device) and a two-channel UniSlot compatible wireless receiver.

Innovative features include a smart user interface that permits accessibility to the camera’s extensive functions from an LCD display on the side of the camera; an (optional) 16:9; 3.45-inch; 920;000-dot resolution LCD color viewfinder; which doubles as a LCD monitor when open; a simplified waveform and vectorscope; a 10-pin remote terminal enabling remote camera operation; and an optional camera studio system.

Audio capabilities include two XLR audio inputs; and recording up to four channels of 48kHz; 24-bit audio in AVC-Intra formats (16-bit in AVC-LongG; DVCPRO HD; DVCPRO and DV).?Standard features include Scan Reverse for use with a cinema lens adaptor; Digital Zoom function for 2x; 3x and 4x magnification; Presentable Shutter Speed from 1/12 to 1/2000 sec plus fully variable Synchro Scan; and a four-position (CLEAR; 1/4 ND; 1/16 ND; 1/64 ND) optical neutral density filter wheel.

Specifications

Our Score

Click to rate this post!

[Total: 0 Average: 0]

Power	DC 12 V (11.0 V to 17.0 V)
Power Consumption	22 W (when the optional board AG-YA600G is installed)
Operating Temperature	0°C to 40°C (32°F to 104°F)
Operating Humidity	10% to 85% (relative humidity)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Weight	Approx. 2.8 kg (6.2 lbs.) (body only, excluding the battery and accessories)
Dimensions	144 mm (W) x 267 mm (H) x 350 mm (D), (5-21/32″ x 10-1/2″ x 13-25/32″), Body only, excluding protrusion
Included Accessories	Shoulder strap, mount cap
Camera Unit
Pickup Device	2/3 type 2.2 million pixels, MOS x 3
Lens Mount	2/3 type bayonet
CC Filter	A: 3200 K, B: 4300 K, C: 5600 K, D: 6300 K
ND Filter	1: CLEAR, 2: 1/4ND, 3: 1/16ND, 4: 1/64ND
Gain Setting	NORMAL mode: -3 dB, 0 dB, 3 dB, 6 dB, 9 dB, 12 dB, 15 dB, 18 dB, 21 dB, 24 dB, 27 dB, 30 dB
HIGH SENS mode	-6 dB, -3 dB, 0 dB, 3 dB, 6 dB, 9 dB, 12 dB, 15 dB, 18 dB, 21 dB, 24 dB, 27 dB, 30 dB
Super Gain (S.GAIN)	Selectable from 30 dB, 36 dB, 42 dB
Shutter Speed	60i/60p mode: 1/60 (OFF) sec., 1/100 sec., 1/120 sec., 1/250 sec., 1/500 sec., 1/1000 sec., 1/2000 sec. 30p mode: 1/30 (OFF) sec., 1/50 sec., 1/60 sec., 1/120 sec., 1/250 sec., 1/500 sec., 1/1000 sec. 24p mode: 1/24 (OFF) sec., 1/50 sec., 1/60 sec., 1/120 sec., 1/250 sec., 1/500 sec., 1/1000 sec. 50i/50p mode: 1/50 (OFF) sec., 1/60 sec., 1/120 sec., 1/250 sec., 1/500 sec., 1/1000 sec., 1/2000 sec. 25p mode: 1/25 (OFF) sec., 1/50 sec., 1/60 sec., 1/120 sec., 1/250 sec., 1/500 sec., 1/1000 sec.
Synchro Scan Shutter	60i/60p mode: 1/60.0 sec. to 1/250.0 sec. 30p mode: 1/30.0 sec. to 1/250.0 sec. 24p mode: 1/24.0 sec. to 1/250.0 sec. 50i/50p mode: 1/50.0 sec. to 1/250.0 sec. 25p mode: 1/25.0 sec. to 1/250.0 sec.
Slow Shutter Speed	60i/60p mode: 1/15 sec., 1/30 sec. 30p mode: 1/15 sec. 24p mode: 1/12 sec. 50i/50p mode: 1/12.5, 1/12.5 sec. 25p mode: 1/12.5 sec.
Shutter Open Angle	3.0 deg to 360.0 deg (in 0.5 deg steps, angle display)
Sensitivity	NORMAL mode: F9 (2000 lx, 3200 K, 89.9% reflection, 1080/59.94i) F10 (2000 lx, 3200 K, 89.9% reflection, 1080/50i) HIGH SENS mode: F12 (2000 lx, 3200 K, 89.9% reflection, 1080/59.94i) F13 (2000 lx, 3200 K, 89.9% reflection, 1080/50i)
Minimum Subject Illumination	Approx. 0.22 lx (HIGH SENS MODE, F1.4, +42 dB (S.GAIN))
Image S/N	62 dB (standard)
Horizontal Resolution	1000 TV or higher (center)
Memory Card Recorder
Recording Media	P2 card (for microP2 card: adaptor is required)
System Format	1080/59.94i, 1080/23.98psF, 720/59.94p, 480/59.94i, 1080/50i, 720/50p, 576/50i
Recording Format	AVC-Intra100/ AVC-Intra50/ AVC-LongG50/ AVC-LongG25/ AVC-LongG12/DVCPRO HD/ DVCPRO50/ DVCPRO/ DV formats switchable
Recording Video Signal	1080/59.94i, 1080/29.97pN, 1080/23.98pN, 720/59.94p, 720/29.97pN, 720/23.98pN, 480/59.94i, 480/29.97p, 1080/50i, 1080/25pN, 720/50p, 720/25pN, 576/50i, 576/25p
Digital Audio
Recording Audio Signal	AVC-Intra100/AVC-Intra50: 48 kHz/16 bit, 4CH and 48 kHz/24 bit, 4CH switch AVC-LongG50/AVC-LongG25: 48 kHz/24 bit, 4CH AVC-LongG12/DVCPRO HD/DVCPRO50/DVCPRO/DV: 48 kHz/16 bit, 4CH
Headroom	18 dB/20 dB (switchable with menu)
Proxy
Video Compression Format	H.264/AVC Baseline Profile, H.264/AVC High Profile
Audio Compression Format	AAC-LC, Linear PCM
Video Input/Output
SDI Out/In Video (option)	BNCx1 1.5 G HD SDI: 0.8 V [p-p], 75 Ω SD SDI: 0.8 V [p-p], 75 Ω
MON OUT	BNCx1 (Can be switched to HD SDI/SD SDI/analog composite on SmartUI.) 1.5 G HD SDI: 0.8 V [p-p], 75 Ω SD SDI: 0.8 V [p-p], 75 Ω Composite: 1.0 V [p-p], 75 Ω
HDMI OUT	HDMIx1 (HDMI type A terminal, not compatible with VIERA Link)
Audio Input/Output
SDI Out/In Audio (option)	XLR (3 pin) x 2 LINE/MIC (switch selection) LINE: 0 dBu MIC: -50 dBu/-60 dBu (menu selection), +48 V ON/OFF (switch selection) MIC IN: XLR x 1, 5 pin
MIC IN	XLR (3 pin) x1, +48 V supported (selectable menu) -40 dBu/-50 dBu/-60 dBu (selectable menu)
Wireless In	25 pin, D-SUB, -40 dBu, 2CH supported
Audio Out	Pin jack x 2 (CH1, CH2), Output level: 600 Ω, 316 mV
PHONES OUT	3.5 mm diameter stereo mini jack x1
Speaker	20 mm diameter, round x 1
Other Input/Output
GENLOCK IN	BNCx1, 1.0 V [p-p], 75 Ω
TC IN/OUT	BNCx1, IN/OUT switch selection IN: 0.5 V [p-p] to 8 V [p-p], 10 kΩ OUT: 2.0 +/-0.5 V [p-p], Low impedance
DC In	XLRx1, 4 pin, DC 12 V (DC 11.0 V to 17.0 V)
DC Out	4 pin, DC 12 V (DC 11.0 V to 17.0 V), maximum output current 1.5 A
Remote	10 pin
Lens	12 pin
VF	20 pin
LAN	100BASE-TX/10BASE-T
USB 2.0 (Host)	Type A connector, 4 pin
USB 2.0 (Device)	Type B connector, 4 pin
USB 2.0 (sub host)	Type A connector, 4 pin (exclusively for wireless module AJ-WM30)
