Panasonic AJ-P2AD1G Memory Card Adapter
USD 232.50 excl. Tax
Panasonic AU-XPD3 Memory Card Drive
USD 1,900.00 excl. Tax
Panasonic AK-HC5000 4K Camera Professional & HD Studio Camera System
USD 21,845.00 – USD 23,301.33 excl. Tax excl. Tax
Designed HD Broadcast Studio Camera to provide recently developed 2/3-type MOS sensors that produce high quality and an excellent S/N ratio.
| Weight | N/A |
|---|---|
| Choose from Variants |
AK-HC5000GJ ,AK-HC5000GSJ |
Description
Click to rate this post!
[Total: 2 Average: 5]

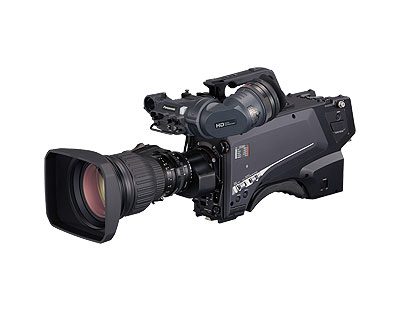

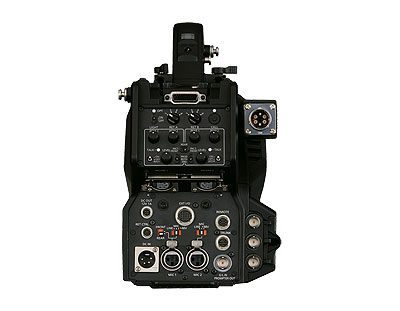

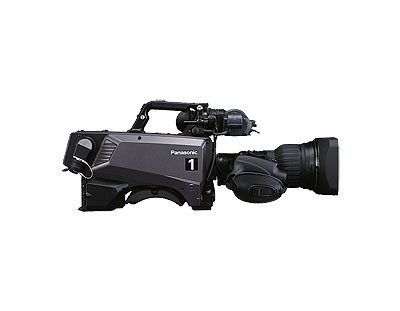

Panasonic AK-HC5000 4K Studio Broadcast Camera
Superior to provide for HD video production with the fast shooting speed
Panasonic AK-HC5000 4K Camera allows for superior 1080p video & 4x high-speed shooting for vivid imaging for capturing exciting moments in sports and events.
The Panasonic AK-HC5000 4K Studio Camera produces high-quality images and is easy to use. When used with the AK-UCU500 Camera Control Unit, it is capable of 1080/60p, 240p image output and high-image-quality uncompressed long-distance transmission as well as a Hybrid Log Gamma (HLG) output option simultaneous with standard gamma for live HDR (High Dynamic Range) production
.
The AK-HRP1000/AK-HRP1005 Remote Operation Panel, which is with a color LCD to provide visibility of the display for smooth control, is also available to use alongside this product. When powered by the camera control unit, the camera and camera control unit can be connected for a 2,000-meter long-distance transmission of video signals
The remote operation panel and the camera can be connected using a dedicated cable. The AK-HVF100 9-inch LCD color viewfinder has also been newly developed and equipped with a large display and diverse functions such as focus assist. Overall, this system offers superior cost performance with respect to both operability and ease of use.
Features:
- Sensitivity F12 (2000 lx) and an excellent S/N ratio of 60 dB (without NR)
- Supports standard dynamic range (SDR) and High dynamic range (HDR) acquisition simultaneously via hybrid log gamma (HLG) output options
- Supported Format (from Camera) HD: 1080/59.94p, 50p, 59.94i, 50i, 29.97psF, 25psF, 23.98p over 59.94i as well as 720/59.94p
- Equipped with a CAC (Chromatic Aberration Compensation) function capable of correcting even slight chromatic aberration at the lens periphery
- The DRS (Dynamic Range Stretch) function suppresses blocked shadows and blown highlights
- The V-REC and F-REC provide powerful support in digital cinema production
- Black gamma function for independent color settings in dark areas
- 12-axis color correction, detail, skin tone detail (plus two axes), and easy matrix adjustment
- An SD Memory Card can be used to set up data and firmware versions
- IP streaming (compatible with Newtek Autolink for Panasonic PTZ) and IP control are supported
- Advanced trunk functions such as 3x CCU to camera, plus 1x HD-SDI from Camera to CCU as well as a 1000Base-T LAN-Trunk.
Specifications
Click to rate this post!
[Total: 2 Average: 5]
| General | ||
|---|---|---|
|
Power Supply |
DC 12 V (when using an external power supply) AC 240 V, 50 Hz/60 Hz (when AK-UCU500P/AK-UCU500PS/AK-UCU500E/AK-UCU500ES is connected) |
|
| Power Consumption | 119 W (maximum, when connecting to an external 12 V and including supply to an externally connected devices) 360 W (maximum, when AK-UCU500P/AK-UCU500PS/AK-UCU500E/AK-UCU500ES is conncected and including supply to an externally connected devices) |
|
| Operating Temperature | -10 ℃ to 45 ℃ (14 °F to 113 °F) (Preheating required under a temperature 0 ℃ (32 °F) or below) |
|
| Storage Temperature | -20 ℃ to 60 ℃ (-4 °F to 140 °F) | |
| Operating Humidity | 85 % or less (relative humidity) | |
| Weight | Approx. 4.4 kg (9.70 lbs.) (body only, excluding the accessories) | |
| Dimensions (W x H x D) | Body only 151 mm x 267 mm x 371.5 mm (5-31/32 inches x 10-17/32 inches x 14-21/32 inches) (excluding protrusions) |
|
| Camera Unit | ||
| Pickup Device | 2/3-type, 2.2 million pixels, MOS x 3 | |
| Optical Filter | CC | 3200 K, 4300 K, 6300 K, Cross, Diffusion |
| ND | CAP, Clear, 1/4, 1/16, 1/64 | |
| Lens Mount | 2/3-type bayonet | |
| Sensitivity | Two shooting modes. 2000 lx, 3200 K, when white reflectivity is 89.9 % | |
| [HIGH SENS] | F11 (59.94 Hz) / F12 (50 Hz) | |
| [NORMAL] | F8 (59.94 Hz) / F9 (50 Hz) | |
| Horizontal Resolution | 1000 TV lines or above (center) | |
| S/N | 60 dB or above | |
| Horizontal Modulation | 50 % or above (27.5 MHz) | |
| Gain Switching | [HIGH SENS] | -6, -3, 0, 3, 6, 9, 12, 15, 18, 21, 24, 27, 30, 33, 36 |
| [NORMAL] | -3, 0, 3, 6, 9, 12, 15, 18, 21, 24, 27, 30, 33, 36 | |
| Shutter Speed | [59.94i] / [59.94p] mode | 1/100, 1/120, 1/125, 1/250,1/500, 1/1000, 1/1500, 1/2000 |
| [29.97p] mode | 1/60, 1/100, 1/120, 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000 | |
| [23.98p] mode | 1/48, 1/60, 1/100, 1/120, 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000 | |
| [50i] / [50p] mode | 1/60, 1/100, 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000 | |
| [25p] mode | 1/50, 1/60, 1/100, 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000 | |
| Video Input/Output | ||
| BNC x 1 | HD (3G/1.5G): 0.8 V [p-p], 75 Ω | |
| BNC x 1 | HD (3G/1.5G): 0.8 V [p-p], 75 Ω | |
| BNC x 1 | Functions as |
|
| BNC x 1 | Functions as and as |
|
| Audio Input/Output | ||
| XLR x 1, 3-pin | For |
|
| XLR x 1, 3-pin | ||
| XLR x 1, 3-pin | Switchable with |
|
| Intercom | ||
| XLR x 1, 5-pin | ||
| XLR x 1, 5-pin | ||
| Stereo mini jack x 1, 3-pin | ||
| Other Input/Output | ||
| Optical composite connector x 1 | ||
| 12-pin x 1 | ||
| 20-pin x 1 | ||
| 29-pin x 1 | ||
| XLR x 1, 4-pin, DC 12 V | ||
| 4-pin x 1 | ||
| 6-pin x 1 | ||
| 20-pin x 1, DC 12 V, 0.5 A | ||
| 10-pin x 1 | ||
| 12-pin x 1 | ||
| 2-pin x 1 | ||
| RJ-45 x 1 | ||
| Type A connector, DC 5 V, 0.5 A | ||
| Build-up Terminal | 20-pin x 1 | |
