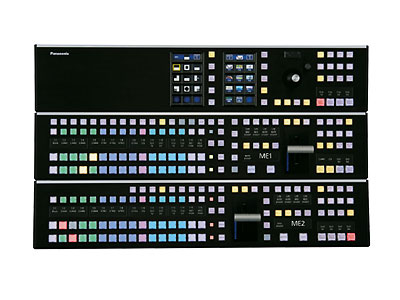

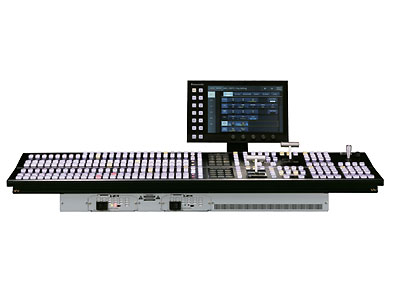

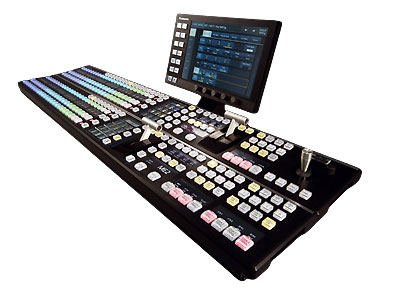

Panasonic AV-HS6000 2ME Live Switcher

General:

• Power Supply: AC 100 V to 240 V, 50 Hz/60 Hz (AV-HS60U2 supports redundant power supply)
• Power Consumption: 110 W
• Ambient Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
• Ambient Operating Humidity: 10 % to 90 % (no condensation)
• Storage Temperature: 0 °C to 40 °C (32 °F to 104 °F)
• Storage Humidity: 10 % to 90 % (no condensation)
• Weight: Approx. 13.5 kg (29.7 lbs.) (excluding accessories)
• Dimensions (W x H x D): 482 mm x 399 mm x 418 mm (18-31/32 inches x 5-3/16 inches x 16-15/32 inches) (excluding protrusions)

Video Terminal:

SDI IN 1 to SDI IN 32 Terminals: During Standard mode Standard 32 lines

• Connector: BNC x 32
• SDI IN 27, SDI IN 28, SDI IN 21, SDI IN 32、SDI IN 32 terminals are equipped with up-converters,
• SDI IN 25 to SDI IN 32 terminals are equipped with color correctors.

HD-SDI SEMPTE 292M (BTQ-004) standard compliant

• 0.8 V [p-p] ± 10 % (75 Ω)
• Automatic equalizer 100 m (328 ft) (when 1.5 Gbps/5C-FB cable is used)

SD-SDI SEMPTE 259M standard compliant

• 0.8 V [p-p] ± 10 % (75 Ω)
• Automatic equalizer 200 m (656 ft) (when 5C-2V cable is used)

During 3G mode
16 lines

• Connector: BNC x 16 (only the odd numbered terminals can be used)
• The even numbered terminals SDI IN 2, SDI IN 4.. SDI IN 32 cannot be used.
• SDI IN 25, SDI IN 27.. SDI IN 29, and SDI IN 31 terminals are equipped with color correctors

During 4K mode
4K signal x 8 lines

• Connector: BNC x 32 (3G-SDI x 4 SQD/2SI)
• Can use the 4K signal in SQD format and 2SI format

3G-SDI: 3G serial digital, SMPTE424M standard compliant

• 0.8 V [p-p] ± 10 % (75 Ω)
• Automatic equalizer 100 m (328 ft) (when 3 Gbps/5C-FB cable is used)
• 3G-SDI Level B
  3G-SDI Level A (FS ON)

DVI-D IN 1 to DVI-D IN 2 Terminals: 2 lines
Digital RGB: XGA (1024 x 768), WXGA (1280ｘ768), SXGA (1280ｘ1024),
WSXGA+(1680 x 1050), UXGA (1600 x 1200), WUXGA (1920 x 1200)
Vertical frequency: 60 Hz
Video format inputs: 1080/59.94p, 1080/50p, 1080/59.94i, 1080/50i, 720/59.94p, 720/50p

• Connectors: DVI-D x 2
• The terminals do not support HDCP.
• The DVI-I connector cable cannot be used.
• For the DVI-D connector cable, use a cable with a length of up to 5 m. (16.4 ft)
• DVI-D IN1/DVI-D IN2 terminals cannot be used during 3G mode and 4K mode

SDI-D OUT 1 to SDI OUT 16 Terminals: During Standard mode
16 lines (2 distributed outputs per line)

• Connectors: BNC x 32
• ME1PGM, ME1PVW, ME1CLN, ME1KEYPVW, ME2PGM, ME2PVW, ME2CLM, ME2KEYPVW, DSKPGM1, DSKPGM2, DSKPVW1, DSKPVW2, DSK1CLN, DSK2CLN, DSK3CLN, DSK4CLN, SEL KEYPVW, MV1 to MV4, and AUX1 to AUX16 can be assigned.

HD-SDI: SMPTE292M (BTQ S-004) standard compliant

• Output level: 0.8 V [p-p] ± 10 %

SD-SDI: SMPTE259M standard compliant

• Output level: 0.8 V [p-p] ± 10 %

During 3G mode:
3G-SDI output: 8 lines (2 distribute outputs per line)
HD-SDI output: 2 lines (2 diestbute outputs per line)

• Connector
  3G-SDI: BNC x 16 (odd numbered terminals only)
  HD-SDI: BNC x 4 (SDI OUT 14 and SDI OUT16 terminals only)
• 3G-SDI signal is output from the even numbered terminals.
  No signal is output from the SDI OUT 2, SDI OUT 4… SDI OUT 12 terminals.
• The HD-SDI signal converted to the 1080i format is output from the SDI OUT 14 and SDI OUT16 terminals. This signal is converted to the 1080i format by decimating the 1080p signal from the SDI OUT 13 and SDI OUT 15 terminals.
• SDI OUT 13 and SDI OUT 15 terminals are equipped with color correctors. The same color corrector setting is also applied to SDI OUT 14 and SDI OUT 16 terminals.
• ME1PGM, ME1PVW, ME1CLN, ME1KEYPVW, ME2PGM, ME2PVW, ME2CLM, DSKPGM1, DSKPGM2, DSKPVW1, DSKPVW2, DSK1CLN, DSK2CLN, SEL KEYPVW, MV1 to MV4, and AUX1 to AUX8 can be assigned.

During 4K mode
4K signal output: 3 lines (2 distribute outputs per line)
2K signal output: 2 lines (2 distribute outputs per line)

• Connector
  3G-SDI (for 4K signal): BNC x 24 (terminal number 1 to 12)
  3G-SDI (for 2K signal): BNC x 4 (terminal number 13 and 15)
  HD-SDI (for 2K signal): BNC x 4 (terminal number 14 and 16)
• The 4K signal is output in SQD format.
• The HD-SDI signal converted to the 1080i format is output from the SDI OUT 14 and SDI OUT16 terminals. This signal is converted to the 1080k format by decimating the 1080i signal output from the SDI OUT 13 and SDI OUT 15 terminals.
• ME1PGM, ME1PVW, ME1CLN, ME1KEYPVW, ME2PGM, ME2PVW, ME2CLM, DSKPGM1, DSKPGM2, DSKPVW1, DSKPVW2, DSK1CLN, DSK2CLN, SEL KEYPVW, MV1 to MV2, and AUX1 to AUX8 can be assigned.

3G-SDI 3G serial digital, SMPTE424M standard compliant

• Output level: 0.8 V [p-p] ± 10 %
• 3G-SDI Level B Mapping

Signal Formats:

• SD: 480/59.94i, 576/50i
• HD: 1080/59.94i, 1080/50i, 720/59.94p, 720/50p, 1080/24PsF, 1080/23.98PsF, 1080/25PsF, 1080/29.97PsF,
• 3G: 1080/59.94p, 1080/50p
• 4K: 2160/59.94p, 2160/50p (SQD)
• Signal Processing – Y:PB:PR 4:2:2 10 bit
• R:G:B- 4:4:4 8 bit
• ME Number: 2 ME

Synchronous Terminal:

REF Terminal: Connectors: BNC
Same field frequencies as those of the system formats supported
In Genlock mode: Black burst or Tri-level Sync input signals (with loop-through)

• If the loop-through output is not used, provide a 75 Ω termination
• In the 1080/24PsF and1080/23.98PsF formats, only Genlock mode supported
• In the 1080/23.98PsF format, black burst signals with10 Field ID (SMPTE318M standard compliant) or Try-level with 10 Sync signals supported
• In the 1080/24PsF format, Tri-level Sync signals supported

In internal sync mode: Black burst output signal x 2

LTC IN Terminal: This is the LTC (linear time code) input terminal.

• Connector: BNC
• Impedance: 1 kΩ
• Level: 1 to 2 V [p-p]

Video Delay Time: During Standard mode
1 line (H): When the frame synchronizer is set to “Off” and the up-converter is set to “Off”
2 field (V): When the frame synchronizer is set to “On” and the up-converter is set to “On”

• When the signals have passed through PinP, DVE, MultiView, down-converter, or DVI-IN, a maximum delay of 1 frame is applied in each case.

During 3G mode
2 line (H): When the frame synchronizer is set to “Off”
2 frame (V): When the frame synchronizer is set to “On”

• Maximum of 2 frame delay is added to each when passed through PinP, DVE, or MultiVIew.

Control Terminal:

• LAN Terminal: Compatible with 100Base-TX and AUTO-MDIX (For IP control)
• Connection cable: LAN cable (CAT5e), max. 100 m (328 ft), STP (Shielded Twisted Pair) cable recommended
  Connector: RJ-45
• PANEL Terminal: Compatible with 100BASE-TX and AUTO-MDIX (For Control Panel AV-HS60C2/AV-HS60C4 connection)

Connection cable (supplied with AV-HS60C2/AV-HS60C4): LAN cable (CAT5e), straight cable, STP (Shielded Twisted Pair), 10 m (32.8 ft)
Connector: RJ-45

COM1 (M)/COM2 (M)/ COM3 (M) Terminals: RS-422 Control Terminal For master connection for controlling external devices

• Connector: D-sub 9-pin (female) x 3, inch screw

COM4 (M/S) Terminal: RS-422 Control Terminal For master/slave connection for controlling external devices

• Connector: D-sub 9-pin (female), inch screw
• Switchable between master connection and slave connection via menu

GPI IN Terminal: GPI IN: 18 inputs, general-purpose, photocoupler sensing ALARM OUT: 1 output, open collector output (negative logic)

• Connector: D-sub 25-pin (female), inch screw

GPI OUT 1/ GPI OUT 2 Terminal: GPI OUT: 48 outputs, selected from general purpose, tally Open collector output

• Connector: D-sub 25-pin (female) x 2, inch screw
