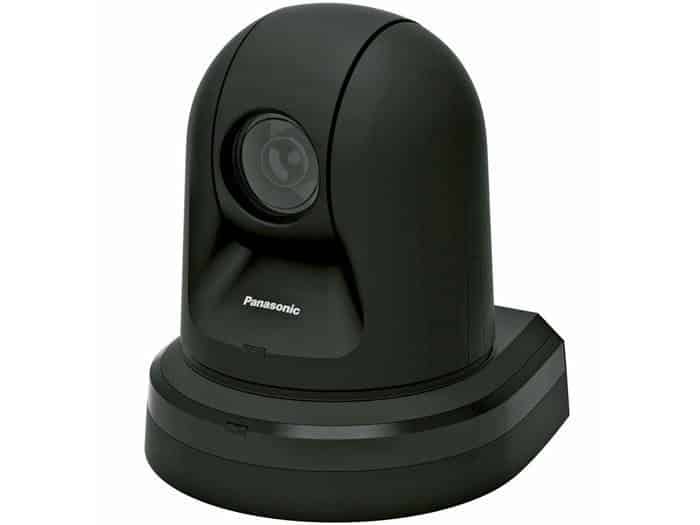

Panasonic AW-HE40SK SDI Full-HD MOS Compact Camera
The Panasonic AW-HE40SK of integrated full HD cameras performs in a wide variety of onsite shooting applications that require high-quality video, such as conferences, lecture capture and other events, thanks to its high-performance zoom, wide angle of view and outstanding color reproducibility. In addition to IP video transmission, support for PoE.
*1 enables power to be supplied via a LAN cable
*2. The result is installation flexibility. It also supports HD-IP video output, output of video and audio via USB, and SD card recording.
Newly Developed 1/2.3-type MOS Sensor
Panasonic AW-HE40SK Equipped with a newly developed 1/2.3-type MOS sensor and DSP (Digital Signal Processor) for high sensitivity and high resolution.
High Performance Optical 30x Zoom Lens/ Super Resolution 40x Zoom
In addition Panasonic AW-HE40SK 30x optical zoom, the AW-HE40 series can zoom up to 40x while maintaining high resolution thanks to Super Resolution technology. It also features a 16x digital zoom*3 and a 1.4x digital extender, which enables the Panasonic AW-HE40SK to shoot in large
conference halls and classrooms.
Night Mode (supports automatic switching)
Switching to Night Mode makes shooting possible even in low light conditions in which shooting is normally difficult, such as when observing wildlife*4. The Panasonic AW-HE40SK can also be set to switch to the mode automatically depending on surrounding light levels.
Equipped with High Dynamic Range (HDR) Mode
In addition to conventional Dynamic Range Stretch (DRS) and Digital Noise Reduction (DNR), the Panasonic AW-HE40SK is newly equipped with High Dynamic Range (HDR) mode. When shooting and synthesizing two images with differing exposure times, the Panasonic AW-HE40SK can create video with high visibility that corrects for halation and black defects even under backlit conditions.
Outputs Still Image During Preset Movements; Supports One-Camera Operations
The new Freeze During Preset function enableds to freeze the video during preset playback. The immediately preceding still image is output during preset movements so that the swiveling movement is not displayed, making operations possible with one camera.
Video/Audio Output with USB
USB Video Class and USB Audio Class are supported. This enables video and audio output via USB so the cameras can be used as high-image-quality Web cameras for Web conferencing, distance learning, and other applications utilizing communication software.
microSD Card Recording Function
MicroSD card recording is upported. Camera video and audio can be recorded in MP4 format on microSD card (sold separately) inserted into the unit. In addition, using an IP network, it is possible to externally control recording start/stop and download the recorded files.
