Panasonic AU-VMPL1G Lens Mount
SGD 1,448.67 excl. Tax
Panasonic AW-CA20T6G Interface Cable
SGD 295.25 excl. Tax
Panasonic AW-UE50 4K PTZ cameras supports 3G SDI, HDMI, and IP output.
SGD 4,777.50 excl. Tax
- 4K 25/30p and 24x Optical Zoom.
- New Direct Drive System for improved responsiveness and quietness.
- Supports NDI|HX version 2 and SRT protocol.
- Excellent system flexibility to achieve smart wiring and smooth operation.
| Weight | N/A |
|---|---|
| Choose from Variants |
Black ,White |
Description
Click to rate this post!
[Total: 10 Average: 4.7]

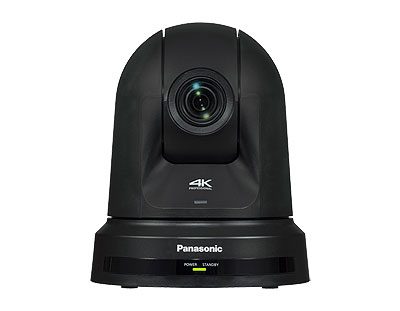

Panasonic AW-UE50 4K Integrated Ultra Quiet PTZ Camera(Black/White) -Offical model : AW-UE50KEJ
The Panasonic AW-UE50 is a 4K 25/30p PTZ camera with 24x optical zoom that supports NDI|HX version 2 and SRT protocol. It is designed for a variety of applications ranging from online classes to online seminars and offers high security and easy installation and operation for capturing stable images. The camera’s excellent system flexibility simplifies wiring and operation, and it can be linked with online conference software or online applications for easy online video streaming. The AW-UE50 is a standard model perfect for people who want to utilize online video streaming more frequently or enhance the quality of online video streaming.
The AW-UE50 features a newly-designed and compact body with a weight of only 1.8kg, which makes it easy to handle and install in any kind of setting, especially when positioning the camera on trusses or ceilings. It offers PoE+ support for camera power, control, and video transmission over a single cable, simplifying installation and reducing clutter.
The camera features a direct drive system based on Panasonic’s own technology for quiet and smooth vertical and horizontal direction, with a reduced operating sound of NC25 or lower. This opens up more opportunities for PTZ operation, including faster, precise movement and higher accuracy in preset positioning, making it Panasonic’s fastest, quietest, and most accurate PTZ yet.
The AW-UE50 supports 3G SDI, HDMI, and IP, making it an ideal option for use within existing HD or 4K workflows. It features a new 1/2.5-type 4K MOS sensor that produces stunning UHD video with true 4K resolution of 1,500 TV lines in UHD. The camera also introduces a new wide-angle lens with a 74.1° field of view and a 24x optical zoom, enabling a wide area to be shot from a limited installation space, in addition to maintaining high image quality at high zoom ratios. The camera also has optical image stabilization (OIS) to ensure smooth pan-tilt movement when in busier environments or moving or being placed onto a robotic system.
The AW-UE50 includes a new powerful chipset platform, making the PTZ incredibly responsive and capable of increased video processing tasks for higher image quality and lower latency. It supports up to 4K 25p/30p video at 3840 x 2160 to provide professional and high-quality shooting of moving images, as well as a wide variety of output interfaces such as 3G-SDI, HDMI, and IP.
The camera supports a wide variety of IP transmission protocols, including SRT, NDI|HX version 2, and RTMP/RTMPS. SRT is supported out of the box to maintain stability while transmitting high-quality video, even in unstable network environments. NDI|HX version 2 is available via an optional paid-for upgrade and enables video transmission at low bitrates over a single LAN cable. RTMP/RTMPS provides direct streaming to live broadcasting services such as YouTube Live and Facebook Live from the camera directly.
The AW-UE50 also features a brand new web interface for professional operators working within darker environments to easily navigate the advanced GUI for operators. Panasonic offers an entire ecosystem of solutions to enable the new PTZ camera to be smoothly introduced into existing camera systems, including use with its remote camera controllers, PTZ Control Center centralized control software, and its automatic tracking software for presentations and lectures, enabled by face recognition and human body detection.
In conclusion, the Panasonic AW-UE50 is a versatile and powerful PTZ camera that offers excellent image quality, flexible connectivity options, and ease of use. Its compact design, direct drive system, and single-cable solution make it ideal for a wide scope of applications
Provides hybrid online/offline environment
Standard models suitable for use in online classes and briefing sessions
The AW-UE50 supports a compact design to blend in with the surroundings and operates very quietly to permit flexible use in any video shooting location or conditions. The Panasonic AW-UE50 4K PTZ offers high security and it is easy to install and operate for capturing stable images, so even people unfamiliar with video shooting or camera operation can utilize it. The excellent flexibility of the product simplifies wiring and operation.
4K resolution, wide angle, and high-magnification zoom
The high-quality images captured by the 4K, and the wide-angle camera clearly show the ambiance of classrooms and halls as well as the facial expressions of teachers and speakers on the podiums, thus conveying the ambiance and atmosphere through the streaming videos. Furthermore, the zoom function clearly captures the important points on a slide or blackboard for easy-to-understand classroom lessons or business presentations. The AW-UE50 can be used for a wide range of applications regardless of the size of the room or hall.
Auto Tracking Software for reliable following and capturing of the speaker
The AW-UE50 supports the AW-SF100/AW-SF200 Auto Tracking Software, so the camera can follow and capture the presenter/teacher moving around on the podium while talking. Since the software performs the camerawork to follow the speaker without the supervisor’s detailed camera operation, realistic scenes can be recorded at all times.
Quiet enough to allow use in any place and for any applications
Since the AW-UE50 operates very quietly, it can be used in a meeting held in a noiseless conference hall or in a class held in a spacious lecture room without worrying about the operating sound of the camera unit. The new direct-drive motor is quiet during panning (horizontal movement) and tilting (vertical movement) so the camera’s operation does not interfere with important meetings and lectures.
Image stabilizer for stable video shooting
Even when the camera unit is mounted in an unstable place, the image stabilizer always assures clear images. The Optical Image Stabilizer (OIS) makes fine adjustments to the lens by smoothly moving the camera unit, thus minimizing image shakes and capturing stable, high-quality images.
Easy to install and operate
The AW-UE50 can be connected to any video device via a network, so a single LAN cable can transmit the video, audio, and control signals as well as the power supply. This not only minimizes the risk of wiring trouble but also contributes to the reduction of the time and effort for setting up and removing the equipment. Furthermore, it can reduce labor expenses in video shooting because a single Panasonic remote camera controller can control up to 200 camera units. The AW-UE50 can be operated from a joystick-equipped remote camera controller, infrared remote controller, or PC, so even people unfamiliar with the equipment operation can easily operate the AW-UE50.
Use as a USB camera
The AW-UE50 supports UVC so it can be used with an existing USB-based system. A single LAN cable can be used to connect multiple camera units to a PC, allowing wire-saving installation and configuration of a simple and compact system.
To learn more about Related Products
Indhu UC added on 14 Feb 2023
Specifications
Click to rate this post!
[Total: 10 Average: 4.7]
Specifications
| LENS | Motorized Optical 24x zoom, |
| F1.8 to F4.0[f=4.12 mm (5/32 inches) to 98.9 mm(3‑29/32 inches); | |
| 35 mm (1‑3/8 inches) equivalent: 25.0 mm | |
| (31/32 inches) to 600.0 mm (23‑5/8 inches)] | |
| General | |
| MINIMUM ILLUMINATION | 3 lx (F1.8, 59.94p, 50IRE, 42 dB, without accumulation) |
| Zoom | • Optical zoom: 24x• i.Zoom UHD 28x, FHD 36x |
| • Digital extender zoom: 1.4 x , 2 x | |
| Horizontal Resolution | UHD: 1,500 Typ (Center area)FHD: 1,000 Typ (Center area) |
| Input/Output Connector | |
| Gain Selection | Auto, 0 dB to 36 dB3 (Super Gain function equipped : 37 dB to 42 dB) |
| WHITE BALANCE | • ATW : 3200 K, 5600 K (ATW Speed 3-stage variables.)• AWB : AWB-A / AWB-B• VAR (selectable between 2000 K and 15000 K by designating a value) |
| Storage Temperature | -20 °C to 50 °C (-4 °F to 122 °F) |
| VIDEO OUTPUT | |
| Current consumption | 1.8 A (Supplied AC adaptor), 0.6 A (PoE+ power supply) |
| Power Requirements | 12 V DC (10.8 V to 13.2 V) (Supplied AC adapter) |
| Optical Filter | – |
| Output Format | – |
| S/N | – |
| Color separation optical system | 1MOS |
| Focus | Switching between auto and manual |
| Focus Distance | Entire zooming range: 1200 mm (3.9 ft)Wide end: 100 mm (0.33 ft) |
| Gamma | HD / Normal / Cinema1 / Cinema2 / Still Like |
| Scene File | – |
| Synchronization System | – |
| Input Connector | DC 12 V IN |
| Pan/Tilt Operation Speed | Speed range: 0.08°/s to 60°/s (Normal mode) |
| • 3 speed modes installedNormal:60°/s, Fast1:90°/s, Fast2:180°/s | |
| Quietness | NC25 or less |
| Electronic Shutter Speed | – |
| Tilting Range | -30°to 90°8 |
| Imaging Sensors | 1/2.5-type 4K MOS x1 |
| Frame Mix | Auto, 0 dB, 6 dB, 12 dB, 18 dB, 24 dB4 |
| Chroma Amount Variability | OFF, -99 ％ to 99 % |
| Supported protocol | – |
| Ambient Operating Humidity | 20 ％ to 90 ％ (no condensation) |
| Finish | AW-UE50W: WhiteAW-UE50K: Black |
| Other Functions | – |
| Image Resolution | 1920×1080, 1280×720, 640×360, 320×180 |
| Note | 1:Discontinued Model2:Will be supported in the future3:Can be set in 1 dB step increments.4:Cannot be set when the format is 2160/29.97p, 2160/23.98p, 2160/24p, 2160/25p, 1080/29.97p, 1080/23.98p (59.94i), 1080/29.97PsF, 1080/23.98PsF, 1080/25p, 1080/25PsF.5:STP (Shielded Twisted Pair) is recommended.6:To ensure safety, the unit must be secured using the mount bracket supplied.7:Note that the operating noise may be loud in high speed. If the operating noise is disturbing, use the Normal mode.8:The main unit may appear in the video depending on the pan/tilt position.9:Supported OS indicated are for browsers current as of September 2021. See “Service and Support / PASS” for the latest information on browser support.10:NDIis a new protocol developed by NewTek, Inc. that supports IP video production workflow.11:NDI is a registered trademark of NewTek, Inc. in the United States.12:In this instance, NDI is used to indicate low latency with high bandwidth NDI, NDI|HX is used to indicate high efficiency low bandwidth NDI|HX. In the NDI|HX mode, 4K video signals cannot be output. AW-UE50/AW-UE40 supports NDI|HX version 2 and Full HD output.13:For details, please contact a sales representative of Panasonic. To use NDI|HX, the driver must be installed and activated.14:Non-synchronous with SDI-OUT |
| Panning range | ±175° |
| Camera Unit | – |
| Mass | Approx. 1.8 kg (3.97 lbs) (excluding ceiling mounting bracket)Approx. 2.05 kg (4.51 lbs) (including ceiling mounting bracket) |
| INPUT | – |
| OUTPUT | – |
| INPUT/OUTPUT | – |
| Installation Method | Stand-alone (Desktop) or suspended (Hanging) |
| Camera/pan-tilt head control | – |
| Controller Supported | AW-RP150GJ, AW-RP60GJ, AW-RM50AG, AK-HRP1000, AK-HRP1005, AK-HRP1015, AK-HRP250 |
| Ambient Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Dimensions (W x H x D) (mm) | 160.0 mm x 192.1 mm x 166.0 mm (Excluding protrusions, cable cover, ceiling mounting bracket) |
| Dimensions (W x H x D) (inch) | 6.299 inches x 7.563 inches x 6.535 inches (Excluding protrusions, cable cover, ceiling mounting bracket) |
| Conversion Lens | Not supported |
| Angle of View Range | Horizontal angle of view: 74.1° (wide) to 3.3° (tele)Vertical angle of view: 46.0° (wide) to 1.9° (tele)Diagonal angle of view: 81.8° (wide) to 3.8° (tele) |
| Syncro Scan | – |
| IP Streaming | – |
| Image Streaming Mode | JPEG (MJPEG), H.264, H.265, NDI|HX version 210,11,12,13 (H.264) |
| Image Transmission setting (JPEG) | Frame rate: Maximum 30fpsImage quality (Fine / Normal) |
| Image Transmission Setting (H.264) | Transmission Type: Unicast port (AUTO), Unicast port (MANUAL), Multicast port |
| Transmission Priority: Constant bit rate, Frame rate, Best effort | |
| Frame Rate: [60 Hz] 5fps / 15fps / 30fps / 60fps, [50 Hz] 5fps / 12.5fps / 25fps / 50fps | |
| Max Bit Rate: 512kbps / 768kbps / 1024kbps / 1536kbps / 2048kbps / 3072kbps / 4096kbps / 6144kbps / 8192kbps / 10240kbps /12288kbps / 14336kbps / 16384kbps / 20480kbps / 24576kbps | |
| Image Transmission Setting (H.265) | Transmission Type: Unicast port (AUTO), Unicast port (MANUAL), Multicast port |
| Transmission Priority: Constant bit rate, Frame rate, Best effort | |
| Frame Rate: [60 Hz] 30fps / 60fps, [50 Hz] 25fps / 50fps | |
| Max Bit Rate: 512kbps / 768kbps / 1024kbps / 1536kbps / 2048kbps / 3072kbps / 4096kbps / 6144kbps / 8192kbps / 10240kbps /12288kbps / 14336kbps / 16384kbps / 20480kbps / 24576kbps | |
| Audio Compression Type | AAC-LC, 48 kHz / 16 bit / 2ch |
| Tally LED display color | red / green |
| PoE+ | IEEE802.3at compliant : DC42 to 57 V (Camera Input)(Software authentication (LLDP) is supported) |
| Pan Tilt Head Unit | – |
| NDI Support | NDI|HX version 2: Upgradable |
| Mic/line input | AAC compatibility (compatible with IP only) |
| Φ3.5 mm stereo mini jack | |
| • During MIC input | |
| Input level: -40 dBV (0 dB=1 V/Pa, 1 kHz) | |
| Supply voltage: 2.5 V±0.5 V (plug-in power compatible) | |
| “• Input impedance: Approx. 2 kΩ (when plug-in power is turned ON) | |
| Approx. 20 kΩ (when plug-in power is turned OFF)” | |
| • During LINE input | |
| Input level: -10 dBV | |
| Input impedance: Approx. 3 kΩ | |
| • Input volume variable range: -36 dB to 12 dB (3 dB step) | |
| • Embedded audio output level: -12 dBFS | |
| • Sampling frequency: 48 kHz | |
| IP connecting cable | • If you have a PoE+ ethernet hub |
| LAN cable5 (category 5e or above, straight cable) Max 100 m (328 ft) | |
| • If you don’t have a PoE+ ethernet hub | |
| LAN cable5 (category 5e or above, straight cable) Max 100 m (328 ft) | |
| AW protocol connecting cable | • LAN cable5 (category 5e or above, straight cable) Max 1000 m (3280 ft) |
| Electronic Shutter Speed | 59.94p/59.94i | 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 |
| Electronic Shutter Speed | 29.97p | 1/30, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 |
| Electronic Shutter Speed | 50p/50i | 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 |
| Electronic Shutter Speed | 25p | 1/25, 1/50, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 |
| Input/Output Connector | LAN | LAN terminal for IP control (RJ-45) |
| Input/Output Connector | RS-422 | CONTROL IN RS422A (RJ-45) |
| Windows | Windows 10 |
| Windows Internet Explorer 11 (32 bit / 64 bit) | |
| Microsoft Edge | |
| Google Chrome | |
| Mac | Mac OS v11.0.1 / Safari 14.01 |
| Mac OS v11.0.1 / Google Chrome | |
| Mac OS v10.15 / Google Chrome | |
| Mac OS v10.14 / Google Chrome | |
| Android | Android OS |
| Google Chrome | |
| Video Output | HDMI | HDMI 1.4 connector, 4:2:2/10bit |
| • HDCP is not supported. | |
| • Viera Link is not supported. | |
| Electronic Shutter Speed | 23.98p/24p | 1/24, 1/48, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 |
| Synchro Scan | 59.94p/59.94i | 60.0 Hz to 7200 Hz |
| Synchro Scan | 29.97p | 30.0 Hz to 7200 Hz |
| Synchro Scan | 23.98p/24p | 24.0 Hz to 7200 Hz |
| Synchro Scan | 50p/50i | 50.0 Hz to 7200 Hz |
| Synchro Scan | 25p | 25.0 Hz to 7200 Hz |
| Output Format | SDI | HD | 1080/59.94p, 50p, 1080/59.94i, 50i, 1080/29.97p (Native), 25p (Native), |
| 23.98p (over59.94i), 1080/29.97psF, 25psF, 23.98psF, 1080/24p (Just), | |
| 23.98p (Native), 720/59.94p, 50p | |
| Output Format | HDMI | 4K | 2160/29.97p (Native), 2160/25p (Native), 2160/24p (Just), 2160/23.98p (Native) |
| Output Format | HDMI | HD | 1080/59.94p, 50p, 1080/59.94i, 50i, 1080/29.97p (Native), 25p (Native), |
| 23.98p (over59.94i), 1080/24p (Just), 23.98p (Native), 720/59.94p, 50p | |
| Video Output | 3G-SDI OUT | SMPTE292M, 424M/ 75 Ω (BNCx1) |
| • Level-A/Level-B supported | |
| iPhone / iPad | iOS |
| Safari | |
| iPadOS | |
| Image Stabilization | OIS 2-axis |
| MENU switching: Select between Off/O.I.S. | |
| Supported protocol | IPv4 | TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, DHCP, DNS, DDNS, NTP, IGMP, ICMP, ARP, RTMP, RTMPS, SRT |
| Supported protocol | IPv6 | TCP/IP, UDP/IP, HTTP, HTTPS, DNS, NTP, DHCPv6, RTP, MLD, ICMP, ARP, RTMP, SRT |
| Supported operating systems and web browsers | 9 |
| Image Resolution NDI|HX version 2 | 1920×1080, 1280×720 |
| Audio Compression Type | NDI|HX version 2 | AAC-LC, 48 kHz, 16 bit, 2 ch |
| F-Number Display | Displayed on the AW-RP150GJ and AW-RP60GJ sides |
| Menu Display on IP Video | Supported 14 |
| Power LED | ON/OFF control |
| Tripod Screw Penetration Measures | Possible |
| Pan/Tilt Mechanical Method | New Direct Drive System |
| Privacy Mode | The lens surface faces backward when standing by (ON/OFF) |
| Default is OFF | |
| Image Transmission Setting (NDI|HX version 2) | Transmission Type: Streaming method: TCP/UDP, Unicast/Multicast |
