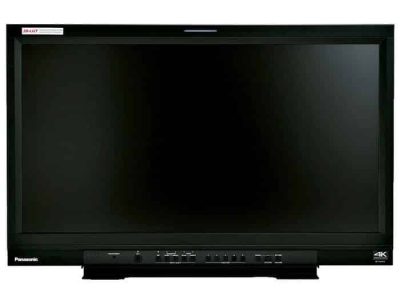

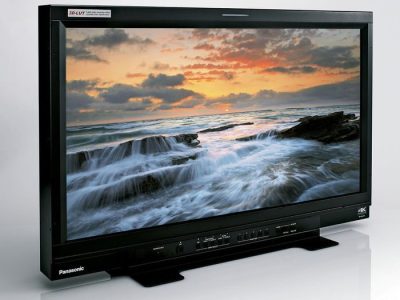

Panasonic BT-4LH310 Professional 4K (4096 x 2160) Monitor

Panasonic introduces the BT-4LH310 787.4 mm (31 inches) 4K LCD monitor, to provide powerful support for 4K and 2K/HD image production for broadcasting and cinema applications. The Panasonic BT-4LH310 boasts stunning display resolution in both 4K (4096 x 2160) and QFHD (3840 x 2160). Its reference-level image quality and excellent color reproduction meet the DCI (P3) color gamut standards.

Its new LUT (Look Up Table) upload function (To be supported soon) also allows high-precision color management in a digital cinema workflow. In addition, this LCD monitor comes with a variety of display functions to assist video production, such as Zoom, Focus-in-Red and Y Map, as well as other handy functions that streamline production activities, including Frame Grab and Error Indication. The rugged aluminum frame and AC/DC power capability ensure high mobility.

High Image Quality to Meet 4K Image Production Needs

4096 x 2160 Resolution

Panasonic BT-4LH310 Supports both 4096 x 2160 resolution (17:9 aspect ratio) and 3840 x 2160 QFHD resolution (four times the resolution of Full-HD). The LCD panel can be used for 4K image production for broadcasting and movies

DCI (P3) Color Gamut

Surpasses the EBU TV color gamut, and covers 96% (u’, v’ conversion) of the DCI (P3) color gamut for digital cinema use. The LCD monitor displays colors accurately. It has a 100% color gamut coverage for BT709, EBU and SMPTE-C.

New LUT Upload Function*

Capable of LUT (look-up table) uploading. Brings high-precision color management to the digital cinema workflow. When shooting, images can be checked on the LCD monitor with the same color setting as that used for editing.

* A PC and LUT upload application software are required (to be supported soon).

IPS Panel with High Contrast, 10 bit and Wide Viewing Angle

1450:1 High Contrast: Delivers sharp, clear 4K images.
10 bit Panel: 10 bit processing produces 1,070,000,000 display colors for extremely smooth gradation.
178° Wide Viewing Angle: Wide 178° viewing angle in both horizontal and vertical directions. The high-quality image display shows practically no color shift even when viewed at an angle of 45°.

3D-LUT and 6-Pole Color Correction

Eliminates color phase shifts (drift) in the LCD panel caused by luminance level differences. By providing a look-up table for each luminance level and applying 12 bit image processing to each RGB color, it balances the six coordinate poles of the three primary colors (RGB) and their complementary colors (CMY). This helps to reproduce the intermediate shades of extremely fine colors.

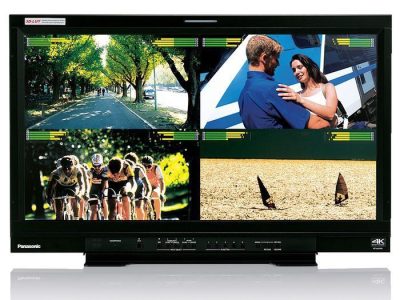

Audio Level Meter

The audio level meter can be overlaid on the displayed image. Upto eight channels can be simultaneously displayed. A peak hold function is included. For 3G-SDI input, channels 1-8, or channels 9-16 can be selected.

Time Code/Closed Caption (2K/HD) Display

The time code display shows the UB value on one line and VTC/UB or LTC/UB simultaneously on two lines. The closed caption function supports EIA/CEA-708 in compliance with HD SDI CC standards.

Specifications

General:
Power Supply:	AC: 100 V – 240 V, 50 Hz/60 Hz
DC:	28 V (23.4 V – 30.0 V)
Power Consumption:	Power Consumption: AC: 1.71 A – 0.67 A, DC: 4.59 A
Operating Temperature:	5 °C to 35 °C (41 °F to 95 °F) (up to 2,000 m above sea level)
Operating Humidity:	20% to 80% (non-condensing)
Storage Temperature:	20 °C to 60 °C (4 °F to 140 °F)
Weight:	Approx. 20.0 kg (44.1 lbs) (including stand) Approx. 18.5 kg (40.8 lbs) (unit only, not including stand)
Dimensions:	W x H x D: 29-13/16 inches × 19-1/2 inches × 10-3/16 inches (including stand) W x H x D:29-13/16 inches × 18-5/8 inches × 5-3/16 inches (unit only, not including stand)
Display Panel:
Dimensions (Display Panel):	31.1 inches (789 mm) (effective display area)
Aspect Ratio:	17 x 9
Pixel Number:	4096 × 2160
Display Colors:	Approx. 1,070,000,000
Viewing Angle:	178° of horizontal, 178° of vertical (contrast > 10:1)
CONNECTORS:
SDI Inputs:	BNC x 4, SMPTE ST424/425-1/274/296 compliant, embedded audio supported 3G-SDI: SMPTE ST299 compliant, 48 kHz,synchronous supported, audio16 channel supported HD SDI: SMPTE ST299 compliant, 48 kHz, synchronous supported, audio 8 channel supported
HD SDI:	HD SDI: SMPTE ST299 compliant, 48 kHz,embedded audio supported, VIERA Link not supported
HDMI Inputs:	HDMI Inputs: HDMI (Type A) x 2, HDCP supported,
DisplayPort Inputs:	DisplayPort x 2, HDCP supported, embedded audio supported
SDI Output:	BNC x 4, with active through-out
GPI:	D-SUB, 9 pin x 1
RS-232C:	D-SUB, 9 pin x 1
RS-485:	RJ-45 x 2 (Input and Output)
Headphones:	Stereo mini jack (M3) x 1, 32 , level adjustable
