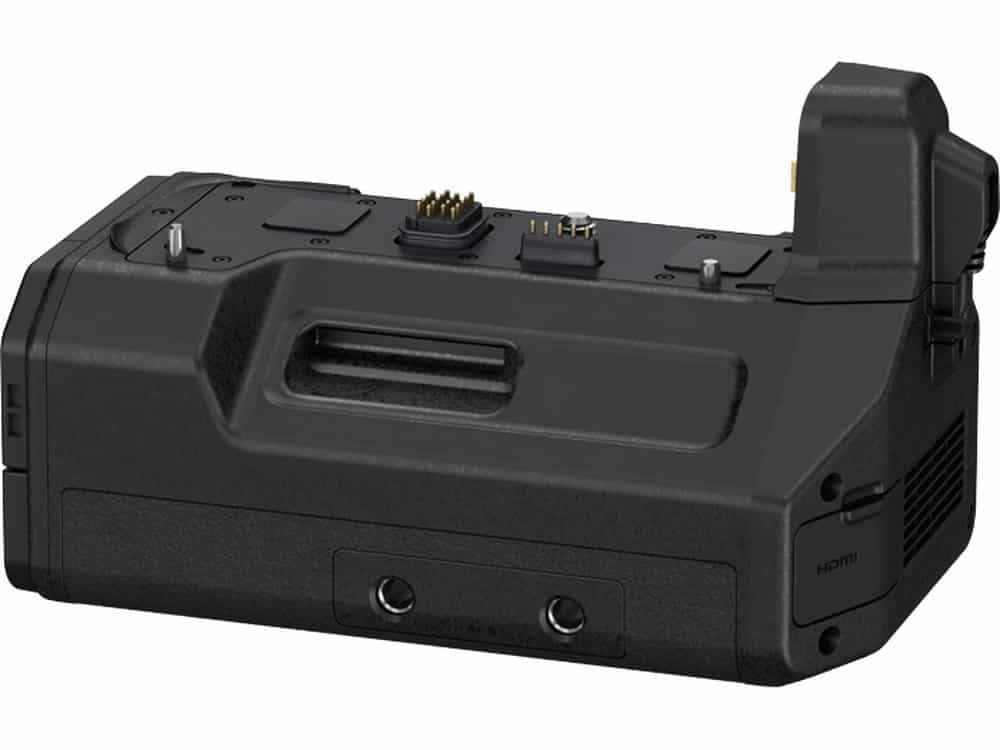

Panasonic DMW-YAGH Professional 4K audio video interface unit for LUMIX GH4
Click to enlarge
HomePro-VideoVideo AccessoriesAccessories Panasonic DMW-YAGH Professional 4K audio video interface unit for LUMIX GH4

Panasonic DMW-YAGH Professional 4K audio video interface unit for LUMIX GH4

  • Professional 4K audio video interface unit for LUMIX GH4
  • XLR monaural 2ch terminals (Line / Mic. / Condenser Mic. Input)
  • Audio level display monitor
  • 3G-SDI video output terminal plus time code
Add to wishlist
SKU: DMWYAGH Category: Accessories
  • Description
  • Specifications
  • Delivery Info
  • Reviews (0)
Description

Panasonic DMW-YAGH Professional 4K audio video interface unit

The Interface Unit is offered exclusively for professional / industrial workflow enabling more powerful video transmission. It complies with Full HD (4:2:2 / 10 bit) four parallel or 4K (4:2:2 / 10 bit) output, both with timecode*. The 2ch XLR input terminals are also equipped for line or condenser microphone. Microphone Volume can be controlled L / R separately. It complies with 12V DC IN.

* When using 4:2:2 / 10-bit output, simultaneous video recording on SDXC/SDHC Memory Card in the DMC-GH4 camera is not possible.

Interface Unit with SDI Outputs and XLR Inputs for an external 4K recorder and multi-camera recording use.

The LUMIX YAGH interface unit mounts to the bottom of the Panasonic LUMIX GH4 and provides an added level of system connectivity the GH4 supporting the audio and video needs of professionals.

Front facing screw holes provide expandability for rail systems and added stability for PL mounts. 2 XLR input terminals for audio support and 3G-SDI video output.

Specifications
Power
Power source
12 V DC, 1.5A (including a digital camera)
Operating Environment
Operating temperature
0? to 40? (32°F to 104°F)
Operating humidity
10% to 80? (no condensation)
Dimensions / Weight
Weight
Approx. 750 g / 24.46 oz (main unit only)
Dimensions (W x H x D)
160 x 64 x 91 mm / 6.30 x 2.52 x 3.58 in (excluding protrusions and HDMI terminal)
Video (Digital Video)
Resolution
Cinema4K
4096 x 2160 [24p]
QFHD
3840 x 2160 [29.97p] / 3840 x 2160 [25p] / 3840 x 2160 [24p] / 3840 x 2160 [23.98p]
FHD
1920 x 1080 [59.94p] (3G-SDI Level-A/B) / 1920 x 1080 [50p] (3G-SDI Level-A/B) / 1920 x 1080 [59.94i] / 1920 x 1080 [50i] / 1920 x 1080 [29.97PsF] / 1920 x 1080 [25PsF] / 1920 x 1080 [24PsF] / 1920 x 1080 [23.98PsF]
HD
1280 x 720 [59.94p] / 1280 x 720 [50p]
Color sampling
Y:Cb:Cr=4:2:2
Bit depth
8 bits / 10 bits
Audio (Digital Audio)
Sampling frequencies
48 kHz (synchronized with video)
Audio quantization
16 bit
Headroom
12 dB
Input / Output
TC IN
BNC x 1, 1.0-4.0 V [p-p], 10 kΩ
AUDIO IN [CH1, CH2]
XLR (3-pin) x 2, High impedance, / LINE / MIC / 48 V (switchable) / LINE: 0 dBu / MIC: -50 dBu / 48 V: Phantom 48 V compatible, -50 dBu
SDI OUT [1, 2, 3, 4]
BNC x 4, 0.8 V [p-p], 75 kΩ / Embedded audio: 2 channel, embedded timecode
HDMI OUT
HDMI type A (VIERA link not supported), 2 channels (linear PCM)
