RODELink Filmmaker Kit Digital Wireless System

Rode RODELink Filmmaker Kit represents the next generation of digital wireless systems. Using a Series II 2.4GHz digital transmission with 128-bit encryption, it is able to constantly monitor and hop between frequencies to maintain the strongest possible signal level at a range of up to 100 metres* (over 100 yards).

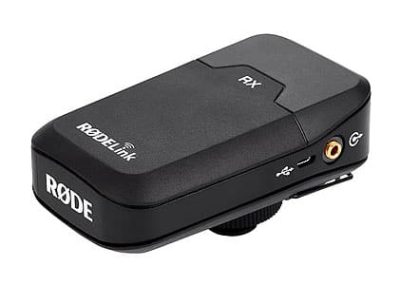

The RODELink Filmmaker Kit provides everything you need to start shooting video wirelessly, including a receiver, transmitter and broadcast-grade lavalier microphone. The receiver (RX-CAM) features an OLED display with information on level, battery status (receiver and transmitter), mute and channel selection. The unit can be mounted on a standard camera shoe mount, 3/8″ thread or belt-clip, and for added versatility the shoe mount can be located in one of two positions.

The lightweight transmitter (TX-BELT) can be fitted to a belt or clothing and features a locking thread to ensure the microphone connection is as secure as possible. RØDE has included an omnidirectional lavalier microphone in the kit to provide the highest possible audio reproduction quality.

* range estimations based on optimal environment

Features

Series II, 2.4GHz digital transmission
128-bit encryption
Up to 100 metres range*
OLED display (on receiver)
One button pairing
Three level gain control
AA battery or USB powered
Includes broadcast lavalier microphone
Two year extended warranty

Specifications

Filmmaker Kit
Transmission type	2.4GHz Fixed Frequency Agile System
System dynamic range	112dB
Range (distance)	Up To 100m
Frequency range	35Hz – 22kHz
Maximum output level	1v Rms (2.8v P-p)
Max input signal level	1v Rms (2.8v P-p)
Max latency	4ms
Receiver (RX – CAM)
Power source	2 X AA Battery Or MicroUSB
Antenna	Internal
Output connection	3.5mm TRS Locking Jack Socket – Dual Mono
Output impedance	300Ω
Dimensions	111mm X 65mm X 52mm
Weight	190gm
Transmitter (TX – BELT)
Power source	2 X AA Battery Or MicroUSB
Antenna	Internal
Input connection	3.5mm TRS Locking Jack Socket
Input impedance	10kΩ
Dimensions	111mm X 65mm X 40mm
Weight	190gm
Lavalier
Acoustic Principle	Permanently Polarized
Active Electronics	JFET impedance converter
Capsule	0.10"
Address Type	End
Frequency Range	60Hz – 18kHz
Output Impedance	3000Ω
Maximum SPL	110dBSPL
Maximum Output Level	189.0mV
Sensitivity	-33.5dB re 1 Volt/Pascal (21.00mV @ 94 dB SPL) +/- 2 dB @ 1kHz
Equivalent Noise Level (A-weighted)	25dB-A
Weight	1.00gm
Dimensions	12.00mmH x 4.50mmW x 4.50mmD

In the Box

Lavalier Lapel Microphone
RX-CAM Camera-Mounted Wireless Receiver
TX-BELT Beltpack Wireless Transmitter
Captive TRS cable
