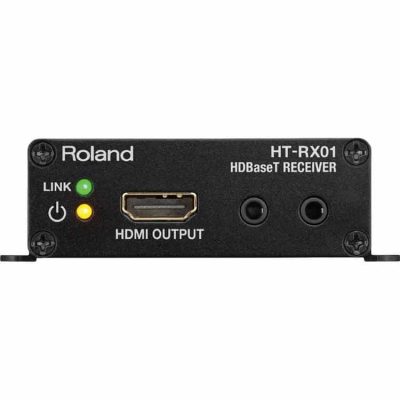

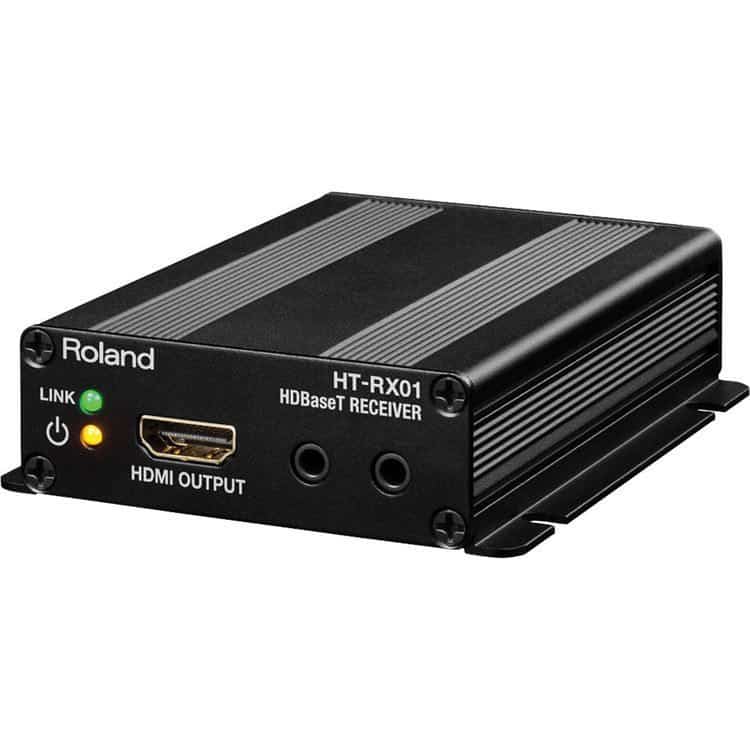

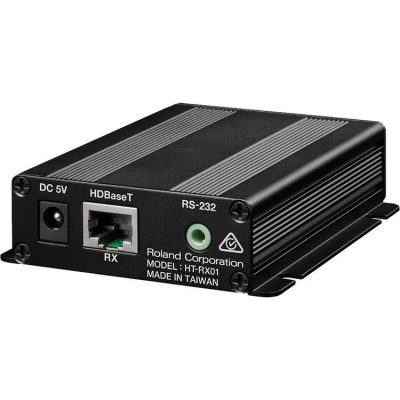

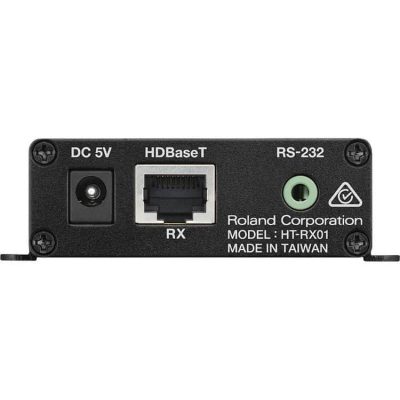

Roland HT-RX01 HDBaseT Compatible Receiver
The Roland HT-RX01 can be used as a receiver for the HDBaseT output from XS series multi-format matrix switchers. Using the RS-232C signal transmission function of the XS series lets you transmit RS-232C signals input to the XS series device along with video and audio signals. This can achieve audio/video transmission in school auditoriums, company conference halls, and other large spaces.

Long-distance HDMI transmission
Connecting an Ethernet cable to the HT-TX01 or HT-RX01 enables transmission of HDMI signals over a distances of up to 100 meters. This makes it possible to connect video cameras, Blu-ray decks, switchers, and other source equipment to LCD monitors, projectors, and other display devices. In addition to HDMI signals, RS-232C signals can also be transmitted, making it possible to send control signals along with video and audio reducing system wiring.

Features
• Converts HDBaseT signals to HDMI output
• Maximum 1080/60p and WUXGA support for HDMI
• HDCP compliant
• Capable of RS-232C transmission

Other Roland Product
V-60HD Multi-Format HD Video Switcher
VC-1-HS HDMI to SDI Video Converter
VR-4HD All-In-One HD AV Mixer
V-800HD MK II Multi-format Video Switcher
XS-1HD Multi-format Matrix Switcher
HT-RX01 HDBaseT Compatible Receiver
XS-82H 8-in x 2-out Multi-Format AV Matrix Switcher
HT-TX01 HDBaseT Compatible Transmitter
XS-83H 8-in x 3-out Multi-Format AV Matrix Switcher
V-1HD HD Video Switcher
XS-84H 8-in x 4-out Multi-Format AV Matrix Switcher
V-1SDI 3G-SDI Video Switcher
V-1200HD Multi-Format Video Switcher
V-40HD Multi-Format Live Video Switcher
V-1200HDR Control Surface for V-1200HD
V-4EX 4-Channel Digital Video Mixer
VC-1-DL Bi-directional SDI/HDMI Converter
VC-1-SC Up/Down/Cross Scan Converter
VC-1-SH SDI to HDMI Video Converter with HDCP Support
VR-50HD Multi-Format AV Mixer

Specifications

Input Formats	480/59.94i, 576/50i, 480/59.94p, 576/50p, 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p, 640 x 480, 800 x 600, 1024 x 768, 1280 x 768, 1280 x 1024, 1366 x 768, 1400 x 1050, 1600 x 1200, 1920 x 1200 RGB formats : Conforms to VESA DMT Version 1.0 Revision 11. The maximum refresh rates of RGB is 75 Hz. (excluding 1600 x 1200 and 1920 x 1200. The refresh rate of these 2 is 60Hz) *1920 x 1200/60Hz : Reduced blanking
Audio Formats	The maximum is PCM 8ch, Dolby Digital, True HD DTS-HD Master Audio
Input Connectors	RJ45 x 1
Output Connectors	HDMI x 1 : Type A 19 pins
Other Connectors	RS-232 x 1 : 9 pins D-sub type *when using additional RS-232 cable
Transmission distance	The maximum is 100m (328 ft) To make connections, use a Cat 5e (Category 5e) or later shielded LAN cable. The available distance depends on the quality of the LAN cable.
Operating temperature range	0 to 40 degree C 32 to 104 degrees F
Operating temperature humidity	10 to 85 % (no condensation)
Storage temperature range	20 to 60 degree C 4 to 140 degrees F
Storage temperature humidity	10 to 85 % (no condensation)
Current Draw	2 A
Power Supply	AC Adaptor
Dimensions	81 (W) x 93 (D) x 24 (H) mm 3-3/16 (W) x 3-11/16 (D) x 1 (H) inches
Weight excl. AC adaptor	300 g 11 oz

In the Box

AC adaptor
AC plugs (3 types)
RS-232 conversion cable (2 m (6 ft 6 inches))
Ferrite core x 3
Owner's Manual
