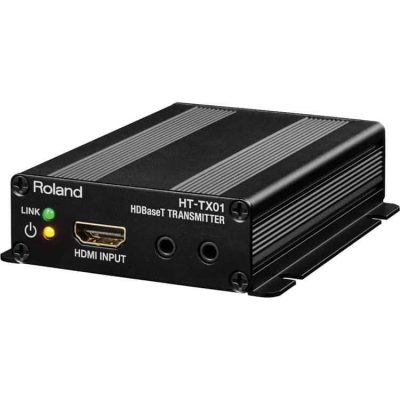

The Roland HT-TX01 can be used as a Transmitter for the HDBaseT output from XS series multi-format matrix switchers. Using the RS-232C signal transmission function of the XS series lets you transmit RS-232C signals input to the XS series device along with video and audio signals. This can achieve audio/video transmission in school auditoriums, company conference halls, and other large spaces.
Long-distance HDMI transmission
Connecting an Ethernet cable to the HT-TX01 or HT-RX01 enables transmission of HDMI signals over a distances of up to 100 meters. This makes it possible to connect video cameras, Blu-ray decks, switchers, and other source equipment to LCD monitors, projectors, and other display devices. In addition to HDMI signals, RS-232C signals can also be transmitted, making it possible to send control signals along with video and audio reducing system wiring.
Features

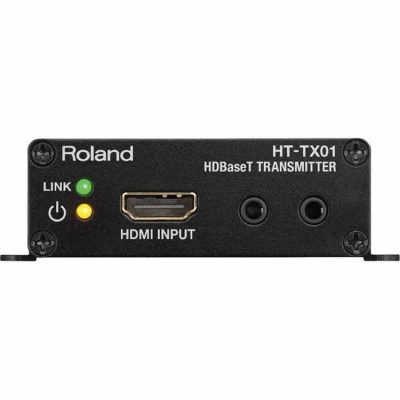

Converts HDMI input to HDBaseT signals
Maximum 1080/60p and WUXGA support for HDMI
HDCP compliant
Capable of RS-232C transmission
Specifications
Click to rate this post!
[Total: 0 Average: 0]
Input Formats
480/59.94i, 576/50i, 480/59.94p, 576/50p, 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p, 640 x 480, 800 x 600, 1024 x 768, 1280 x 768, 1280 x 1024, 1366 x 768, 1400 x 1050, 1600 x 1200, 1920 x 1200
*RGB formats : Conforms to VESA DMT Version 1.0 Revision 11.
*The maximum refresh rates of RGB is 75 Hz. (excluding 1600 x 1200 and 1920 x 1200. The refresh rate of these 2 is 60Hz)
*1920 x 1200/60Hz : Reduced blanking
Audio Formats
The maximum is PCM 8ch, Dolby Digital, True HD DTS-HD Master Audio
Input Connectors
HDMI x 1 : Type A 19 pins

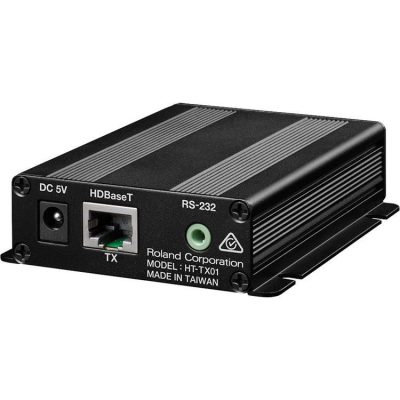

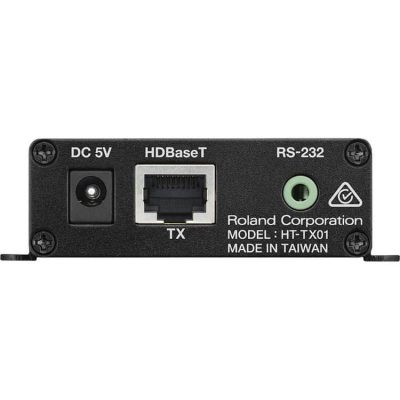

Output Connectors
RJ45 x 1
Other Connectors
RS-232 x 1 : 9 pins D-sub type
*when using additional RS-232 cable
Transmission distance
The maximum is 100m (328 ft)
*To make connections, use a Cat 5e (Category 5e) or later shielded LAN cable.
*The available distance depends on the quality of the LAN cable.
Operating temperature range
0 to 40 degree C
32 to 104 degrees F
Operating temperature humidity
10 to 85 % (no condensation)
Storage temperature range
20 to 60 degree C
4 to 140 degrees F
Storage temperature humidity
10 to 85 % (no condensation)
Current Draw
2 A
Power Supply
AC Adaptor
Dimensions
81 (W) x 93 (D) x 24 (H) mm
3-3/16 (W) x 3-11/16 (D) x 1 (H) inches
Weight excl. AC adaptor
300 g
11 oz
In The Box
Click to rate this post!
[Total: 0 Average: 0]
AC adaptor
AC plugs (3 types)
RS-232 conversion cable (2 m (6 ft 6 inches))
Ferrite core x 3
Owner’s Manual
