Roland V-02HD Multi-Format Video Mixer with In-Built Scaler

Name: Roland V-02HD Multi-Format Video Mixer with In-Built Scaler
Rating: 5 (2 reviews)

SKU: V-02HD Category: HDMI Switcher

Description

Click to rate this post!

[Total: 2 Average: 5]

Roland V-02HD Multi-Format Video Mixer

Switcher, scaler, and expander with audio processing and video effects

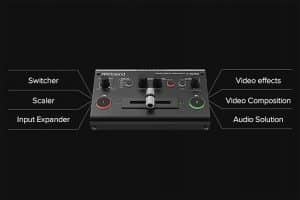

Roland V-02HD multi-format video mixer replaces several standalone units: a simple switcher, a high-quality scaler, an input expander, an audio solution, and inline video effects/composition. Save on space and headaches by packing a V-02HD, the portable yet powerful device that lets you concentrate on producing your event or shooting your scenes rather than troubleshooting your gear.

Pack in your case, just in case

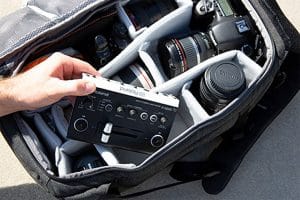

The Roland V-02HD is a micro switcher that’s small enough to fit into equipment cases and camera bags. Designed to integrate with typical video production workflows, the V-02HD has a screw tap for standard video mounts and conveniently attaches to a tripod to stay out of the way. Its lightweight design makes it ideal for mobile video applications too, especially when hooked up to third-party battery packs for longer location-based shoots.

Simple, seamless switching

Switching sources in a small presentation can be a pain, whether it’s signal loss to the main display or the computer’s inability to handle unexpected input signals. The Roland V-02HD ensures a professional cross-dissolve switchover between computers and screens, maintaining high-res pixel-accurate display resolution with deep 10-bit 4:4:4 color space. With simple two-button operation, anyone can pull off professional switching of multiple sources, even if using the V-02HD for the first time.

The input/output matchmaker

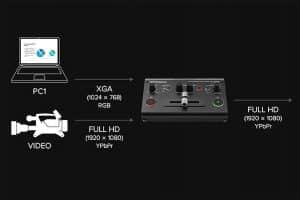

Having two HDMI-equipped devices doesn’t mean they’re compatible, especially when it comes to video signals in a variety of resolutions. For example, a tablet’s output may not display properly on the receiving display. With both input and output scalers, the Roland V-02HD can take SD, HD, and computer resolutions before resizing them to fit the display and then output in a new resolution that’s compatible with the receiving device.

To embed Analog audio into an HDMI signal

The Roland V-02HD not only lets you embed analog audio into an HDMI signal for recording or live streaming, but you can also extract the audio from an HDMI signal to send over to a larger dedicated audio mixer. Where many converters only support digital audio or offer either embedding or de-embedding (and not both), the V-02HD lets you do it all.

To view more Roland products

View more HDMI switcher products

Other Site:

Roland V-02HD Multi-Format Video Mixer

Read Our Blog:

Specifications

Click to rate this post!

[Total: 2 Average: 5]

VIDEO
Video Processing	4:4:4 (Y/Pb/Pr), 10-bit
Input Connectors	INPUT 1–2: HDMI type A x 2 * HDCP Supported * Multi-format Supported
Output Connectors	PROGRAM OUT: HDMI type A PREVIEW OUT: HDMI type A * HDCP Supported * Multi-format Supported
Input Formats	480/59.94i, 576/50i, 480/59.94p, 576/50p 720/59.94p, 720/50p, 1080/59.94i, 1080/50i 1080/59.94p, 1080/50p VGA (640 x 480/60 Hz), SVGA (800 x 600/60 Hz), XGA (1024 x 768/60 Hz) WXGA (1280 x 800/60 Hz), FWXGA (1366 x 768/60 Hz) SXGA (1280 x 1024/60 Hz), SXGA+ (1400 x 1050/60 Hz) UXGA (1600 x 1200/60 Hz), WUXGA (1920 x 1200/60 Hz) * The refresh rate is the maximum value of each resolution. * Conforms to CEA-861-E, VESA DMT Version 1.0 Revision 11. * 1920 x 1200/60 Hz: Reduced blanking * The video signal frame rate can be selected at the SYSTEM menu (59.94 Hz or 50 Hz).
Output Formats	480/59.94p, 576/50p 720/59.94p, 720/50p, 1080/59.94i, 1080/50i 1080/59.94p, 1080/50p SVGA (800 x 600/60 Hz), XGA (1024 x 768/60 Hz) WXGA (1280 x 800/60 Hz), FWXGA (1366 x 768/60 Hz) SXGA (1280 x 1024/60 Hz), SXGA+ (1400 x 1050/60 Hz) UXGA (1600 x 1200/60 Hz), WUXGA (1920 x 1200/60 Hz) * Conforms to VESA DMT Version 1.0 Revision 11. * The output refresh rates of 800 x 600–1400 x 1050 are 75 Hz when the unit’s frame rate setting is 50 Hz. * 1920 x 1200/60 Hz: Reduced blanking
Video Effects	Transition: CUT, MIX (DISSOLVE), WIPE (9 types) Composition: PinP (SQUARE, CIRCLE, DIAMOND), KEY (Luminance Key, Chroma Key) Visual Effects (14 types): MOZAIC, WAVE, RGB REPLACE, COLORPASS, NEGATIVE, COLORIZE, POSTERIZE, SILHOUETTE, EMBOSS, FINDEDGE, MONOCOLOR, HUE OFFSET, SATURATION OFFSET, VALUE OFFSET Others: Flip horizontal, Flip vertical, Still Image Capture, Still Image Playback, Output fade (Audio, Video: WHITE or BLACK), Test pattern output
AUDIO
Audio Processing	Sampling rate: 24 bits/48 kHz
Audio formats	Linear PCM, 24 bits/48 kHz, 2ch
Input Connectors	INPUT 1–2: HDMI Type A x 2 AUDIO IN: Stereo miniature type
Output Connectors	PROGRAM OUT: HDMI type A PREVIEW OUT: HDMI type A PHONES: Stereo miniature type
Input Level	AUDIO IN: -10 dBu (Maximum: +8 dBu)
Input Impedance	AUDIO IN: 45 k ohms
Output Level	PHONES: 92 mW + 92 mW (32 ohms)
Output Impedance	PHONES: 10 ohms
Audio Effects	Delay, High pass filter, Compressor, Noise gate, Equalizer, Multi-band compressor, Limiter, Test tone output
OTHERS
Other Connectors	USB MEMORY: USB B Type (for backup from PC) CTL/EXP:1/4-inch TRS phone type
Other Functions	Preset Memory (8 types) Panel lock function EDID Emulator Auto Scan Auto Input Detect
Power Supply	AC Adaptor
Current Draw	1.1 A
Power Consumption	10.0 W
Operation Temperature	+0 to +40 degrees Celsius +32 to +104 degrees Fahrenheit
Dimensions	160 (W) x 108 (D) x 51 (H) mm 6-5/16 (W) x 4-1/4 (D) x 2-1/16 (H) inches
Weight (excluding AC adaptor)	0.6 kg 1 lbs 6 oz
Accessories	Startup Guide AC adaptor Power cord Cord hook
Options (sold separately)	Footswitch: BOSS FS-5U, FS-6, FS-7 Expression Pedal: EV-5, BOSS FV-500L, FV-500H
