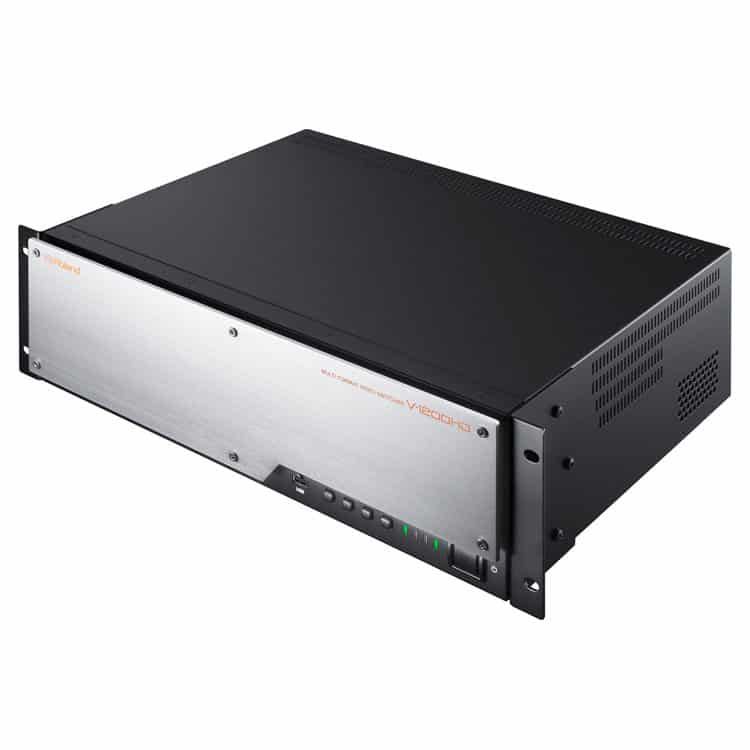

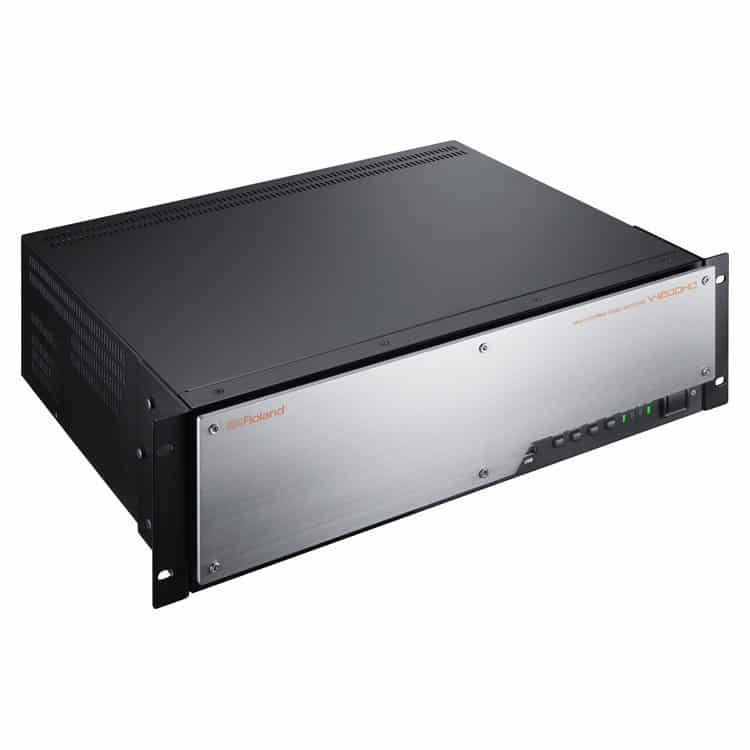

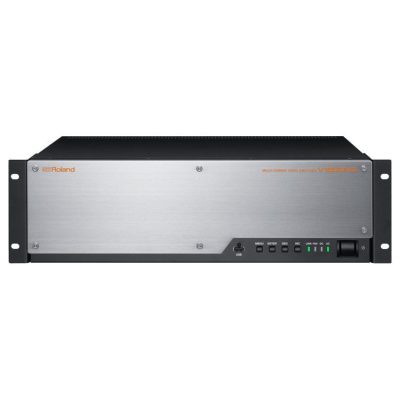

Roland V-1200HD Multi-Format Video Switcher

Roland V-1200HD Multi-Format Video Switcher is another powerful unit capable of 10 HD video inputs for the ultimate video mixing experience. It has a 4:4:4 switcher for live events and a 4:2:2 broadcast switcher with an impressive 16 channel audio mixer. Two scalers come installed between the 4:2:2 and 4:4:4 engines and two more between the 4:4:4 engine and HDMI inputs #3 and #4.

The Roland V-1200HD has a flexible and versatile design owing to its 2 M/E switcher configuration capable of switching between 1 M/E, 1.5 M/E and 2 M/E for the 4:2:2/ 10-bit signal processor. It also features 10 SDI inputs and 4 HDMI inputs as well as 2 HDMI and 6 SDI outputs. With the V-1200HD, you can increase inputs or outputs using the expansion slots although the existing ones are more than enough.

Roland V-1200HD unit is perfectly designed for live events with the capability of controlling seven cameras remotely. Coupled with a great user interface and powerful multi-view features, you can easily manage videos for superb production. The user interface is available on the V-1200HD Remote Control Software that can be installed on a computer. A 4K Switcher mode has been included by merging four SDI inputs into one 4K stream. Additionally, there are multiple video effects to create visually appealing transitions.

Live-performance Production

Multiple M/E choices allow for a diverse range of video production applications in one switcher. The Roland V-1200HD is ideal as a main switcher for concert recording and for a live feed. Through a variety of multi-view functions, even a large number of sources can be checked at a glance. The M/E configuration can be varied as desired to meet the needs of the production. Control up to seven remote cameras ensures creative productions even with limited camera operators.

Broadcast Studios

Roland V-1200HD A wide variety of video effects enhances broadcast studio productions. Composition with freely selectable priority can be accomplished using the four scaler-equipped keyers. The system also features high-end Chroma Key, as well as the External Key essential for title compositing. In addition to PGM and PVW output, two AUX buses are usable for output (when in the 1M/E mode).

Specifications

Video
Processing	4: 4: 4 (Y/Pb/Pr / RGB), 10-bit / 4: 2: 2 (Y/Pb/Pr), 10-bit
Input Connectors	3G/HD-SDI: BNC typx 10 * Conforms to SMPTE 424M (SMPTE 425M-AB), 292M HDMI: type A x 2 (HDMI INPUT 1–2) * HDCP Not supported HDMI: type A x 2 (HDMI INPUT 3–4) * HDCP Supported., Multi-format Supported.
Output Connectors	3G/HD-SDI: BNC type x 6 * Conforms to SMPTE 424M (SMPTE 425M-AB), 292M HDMI: type A x 2 (HDMI OUTPUT 1–2) * HDCP Supported HDMI: type A x 2 (HDMI OUTPUT MULTI-VIEW 1 * HDCP Not required, 1080/59.94p) (HDMI OUTPUT MULTI-VIEW 2 * HDCP Required, 1080/59.94p)
Formats	SDI: 1080/59.94p, 1080/50p * Conforms to SMPTE 274M HDMI: 480/59.94i, 576/50i, 480/59.94p, 576/50p, 720/59.94p, 720/50p, 1024×768/60 (1), 1280×720/60 (1), 1280×800/60 (1), 1366×768/60 (1), 1280×1024/60 (1), 1400×1050/60 (1) ,1600×1200/60, 1920×1080/60, 1920×1200/60 * Conforms to CEA-861-E, VESA DMT Version 1.0 Revision 11 * The output format of HDMI1,2 and SDI is always the same. * Frame rate is 59.94(NTSC) or 50(PAL) * MULTI-VIEW 1,2 output is 1080/60p always. Output refresh rate is 75 Hz when frame rate is set to 50Hz.
Effects (4:2:2 Processing)	M/E: 1M/E, 1.5M/E, 2M/E (9 types) Transition: Mix, NAM (2), FAM (2), Cut, Wipe Composition (Keyer): 4 (PinP, Luminance Key, Chroma Key, External Key supported) AUX: 2 Others: Output Fade, Output Freeze, Output Capture, Composition Edit, SDI Output Patchbay These effects depends on M/E type. (2) PGM/PST only
Effects (4:4:4 Processing)	M/E: 1M/E, Matrix, Scaler Input: 4 (4:2:2 Processing outputs x 2, HDMI INPUT 3, HDMI INPUT 4) Transition: Mix, Cut Composition (Keyer): 1 (PinP, Luminance Key) Others: HDCP Supported, Output Fade, Output Cropping, Signal Generator. *These effects depends on M/E type.
Still Image	Still Image Inputs: 2, Internal Memory: 16, Maximum 1920×1080 pixels Format: Windows Bitmap File (.bmp ) 24 bit per pixel, uncompressed, Portable Network Graphic File (.png) * Alpha channel Supported.
Multiviewer	MULTI-VIEW 1 (4:2:2 Processing): 16/10 screens, Label, Tally * HDCP Supported MULTI-VIEW 2 (4:4:4 Processing): 4 screens, Label, Tally, OSD Setup Menu * HDCP Required
Audio
Processing	Sampling Rate : 24 bits/48 kHz
Input Connectors	3G/HD-SDI: BNC type x 4 (Ch7-10), HDMI: type A x 4, AUDIO IN (XLR/TRS) L (1/2),R (3/4) * Analog Audio or AES/EBU
Output Connectors	3G/HD-SDI: BNC type x 4 (Ch1-4), HDMI: type A x 2, AUDIO OUT (XLR/TRS) L (1/2),R (3/4) * Analog Audio or AES/EBU
Input Level and Impedance	AUDIO IN: 4dBu (Maximum: 22dBu, 15k ohms)
Output Level and Impedance	AUDIO OUT: 4dBu (Maximum: 22dBu, 600 ohms)
Formats	SDI: Linear PCM, 24bits, 48kHz, 16ch * Conforms to SMPTE 299M HDMI: Linear PCM, 24bits, 48kHz, 2ch AES/EBU: Linear PCM, 24bits, 48kHz, 4ch
Effects	Patchbay: 92 inputs x 92 outputs Delay: 16ch Mixer: 16ch, channel Effects: 3-Band EQ, Delay Master Effects: Mastering, 3-Band EQ, Reverb
Others
Expansion Slot	Slot: 2 *The video a maximum of 2 inputs 2 outputs and the audio a maximum of 16 inputs 16 outputs can treat in 2 slots sum total.
Reference	Input: BNC type x 1 Black Burst (Sync to frames), Bi-Level, Tri-Level Output/Through: BNC type x 1 Black Burst (Sync to frames)

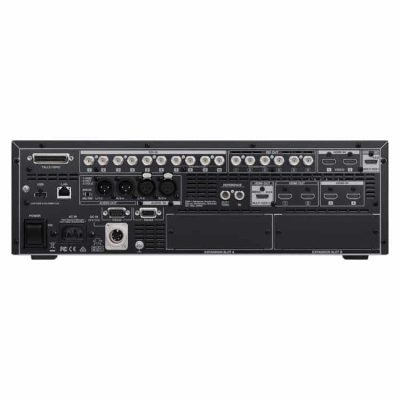

External Connectors	RS-232: DB-9 type (Male) x 1 for Remote Control RS-422: DB-9 type (Female) x 1 for VISCA Control TALLY/GPIO: DB-25 type (Female) x 1 (Input: 8, Output/Tally: 16) LAN: RJ45 100BASE-TX (Connect to V-1200HDR or Computer (V-1200HD RCS)) USB: A type *USB Memory
Memory	8 * Last Memory Function
User Function Button	32 * 16 buttons x 2 banks
Remote Camera Control	RS-422: D-Sub 9 pin type x 1 Protocol: VISCA
Remote Controller	V-1200HDR Control Surface * Option V-1200HD RCS * Windows7 or later / Mac OSX
Power Supply	AC 117 V, AC 220 V, AC 230 V, AC 240 V (50/60 Hz) DC 24 V (XLR-4-32 type) * Redundant Power Supply
Operation Temperature	0 to 40 degrees Celsius 32 to 104 degrees Fahrenheit
Dimensions	482 (W) x 357 (D) x 133 (H) mm 19 (W) x 14-1/16 (D) x 5-1/4 (H) inches * EIA-3U rack mount size
Weight	9.0 kg 19 lbs 14 oz

In the Box

Power Cord
Rubber Feet (4)
Owner’s Manual
