Description

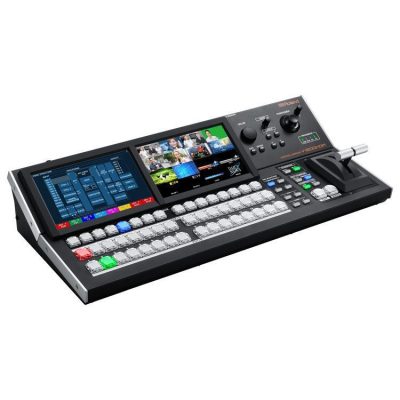

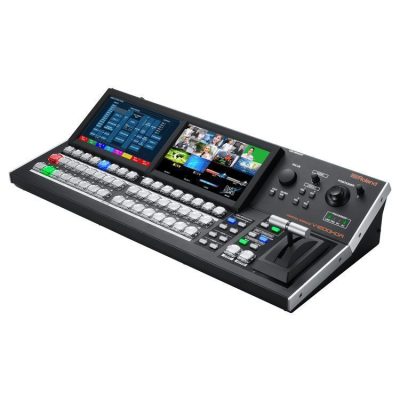

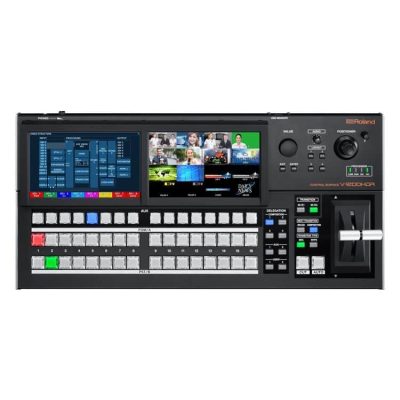

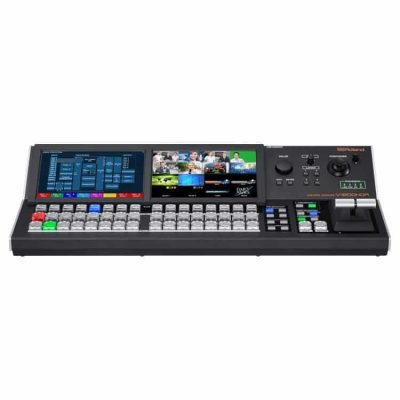

Roland V-1200HDR Control Surface for V-1200HD Multi-Format Video Switcher

Control all the advanced functionality of your V-1200HD switcher with the optional Roland V-1200HDR Control Surface. The Roland V-1200HDR provides a professional physical control surface for the V-1200HD with dual LCD touchscreens for monitoring and control, a large T-bar for effects and transitions, customization and operation of the mix effects buses, HDMI video outs, and many buttons for source switching.

Dual Touch Monitors

Dual touch monitors let you display different GUI’s on the left and right. Incoming video signals from the HDMI connectors on the rear panel can also be displayed.

16 Cross Points

Roland V-1200HDR Control Surface broad range of cross-point switches affords a commanding view of 16 sources at one time. This is also switchable to either PGM/PST or flip/flop according to operator preference.

Positioner Joystick Control

Controls the PTZ parameters on up to 7 connected remote cameras.

Other Roland Product
V-60HD Multi-Format HD Video Switcher
VC-1-HS HDMI to SDI Video Converter
VR-4HD All-In-One HD AV Mixer
V-800HD MK II Multi-format Video Switcher
XS-1HD Multi-format Matrix Switcher
HT-RX01 HDBaseT Compatible Receiver
XS-82H 8-in x 2-out Multi-Format AV Matrix Switcher
HT-TX01 HDBaseT Compatible Transmitter
XS-83H 8-in x 3-out Multi-Format AV Matrix Switcher
V-1HD HD Video Switcher
XS-84H 8-in x 4-out Multi-Format AV Matrix Switcher
V-1SDI 3G-SDI Video Switcher
V-1200HD Multi-Format Video Switcher
V-40HD Multi-Format Live Video Switcher
V-1200HDR Control Surface for V-1200HD
V-4EX 4-Channel Digital Video Mixer
VC-1-DL Bi-directional SDI/HDMI Converter
VC-1-SC Up/Down/Cross Scan Converter
VC-1-SH SDI to HDMI Video Converter with HDCP Support
VR-50HD Multi-Format AV Mixer

Click to rate this post!

[Total: 0 Average: 0]

Specifications

Display	7 inch Graphic color LCD (touch screen) x 2

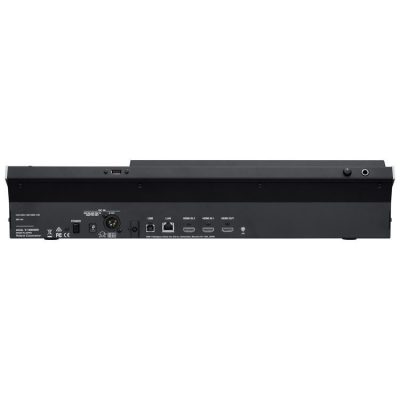

Video input	HDMI (type A) x 2 * HDCP Supported
Others	USB: Type A x 1 * USB Memory, USB: Type B x 1 * Use for future expansion LAN: RJ45 100Base-TX (Connect to V-1200HD) PHONES jack: Stereo 1/4-inch phone type x 1 (80 mW 80 mW, 32 ohms) Internal mono speaker
Power Supply	AC Adaptor, DC 9 V to 16 V (XLR-4-32 type) * Can not be used at the same time.
Operation Temperature	0 to 40 degrees Celsius 32 to 104 degrees Fahrenheit
Dimensions	520 (W) x 237 (D) x 111 (H) mm 20-1/2 (W) x 9-3/8 (D) x 4-3/8 (H) inches * Protruding parts not included.
Weight	4.3 kg /?9 lbs 8 oz

Click to rate this post!

[Total: 0 Average: 0]

In The Box

AC Adaptor
Power Cord
Owner’s Manual
