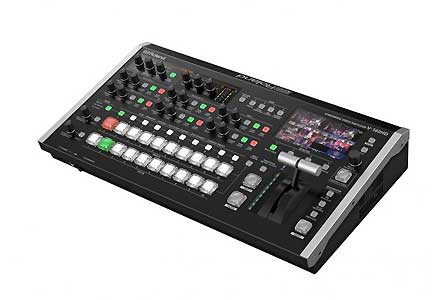

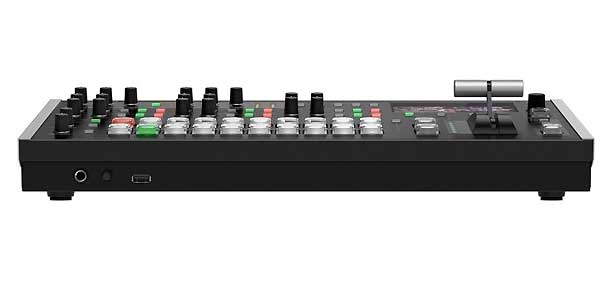

Roland V-160HD Streaming Video Switcher
New Standard in Hybrid Event Switching
Roland V-160HD sets a new standard in hybrid event switching. Connect with live audiences in Full HD with comprehensive SDI and HDMI I/O and simultaneously stream to any popular web platform via USB-C. There’s also an eight-layer video effects engine, a 40-channel digital audio mixer, and integrated PTZ camera control, plus next-generation cue management and live show automation features that make tough production tasks simple. And everything’s all wrapped up in a portable design with a broadcast-style interface that’s easily handled by a single operator.
Hybrid to the Max
The V-160HD is able to handle both in-person and web streaming components of a live hybrid event, complete with the ability to tailor the content for each audience. Being able to stream and distribute content at an actual event simultaneously is a big deal.
HDMI and SDI Connectivity
The V-160HD supports HDMI for common A/V devices plus SDI for long cable runs and high-end cameras. Seamlessly mix eight HDMI sources and eight SDI sources in Full HD, even with mismatched frame rates and color spaces. And with built-in scalers on four of the HDMI inputs, you can easily interface with client-provided sources like computers, tablets, smartphones, gaming consoles, and legacy 4:3 devices.
Send to Multiple Destinations
With seven freely assignable outputs—including three SDI, three HDMI, and one USB-C streaming—the V-160HD puts a high-end video matrix at your command. Feed program displays, auxiliary monitors, multi-view producer displays, and the online audience at once, complete with a “clean” output left over for a recording feed.
Storing and recalling custom looks can be accomplished with just a few button presses on the V-160HD.
The 30 preset memories and powerful effects engine work together to provide seamless scene changes, including synchronizing the transition of all composition layers at the program output.
The 100 macros go even deeper, allowing you to build and fire off complex action lists that include switching, DSK on/off, audio mixing adjustments, PTZ camera movements, and much more.
Roland free remote control software for macOS, Windows, and iPad further enhances this workflow, providing a large graphical interface for setting up and previewing actions before you take them live.
The V-160HD’s newly developed sequencer makes presets and macros even more powerful, allowing a single operator to execute perfectly timed cues with ease. Up to 1000 steps can be recorded in the sequencer, and each step can include both presets and macros. Simply set up your cues ahead of time in the sequence list and trigger them in order using the Next button on the panel. With the power of the V-160HD’s sequencer, you can tackle the most complex events without ever breaking a sweat.
Powerful Video Effects Engine
Video effects and graphics are must-haves to bring polish and excitement to any production. The V-160HD’s effects engine features eight composition layers that can be assigned to the Program and Sub-Program outs, so you’ll always keep audiences engaged with visually appealing content. With up to four picture-in-picture windows, downstream key layers, 16 still store slots with transparent PNG image support, and more, you can manage the creative needs of any client.
The V-160HD uses the same connection technology as webcams,* allowing you to stream events at 30/60 FPS in Full HD** and reach a worldwide audience. Simply connect the USB-C output to a computer and start streaming with Zoom, Microsoft Teams, YouTube, Facebook Live, or any platform that can use a webcam as its source. Everything is plug and play, with no driver installation needed.
*USB video class (UVC) and USB audio class (UAC) compliant.
**YUV2 (uncompressed) and Motion JPEG (compressed) formats supported.
Offering studio-grade sound, the V-160HD’s 40-channel digital audio mixer lets you blend signals from all 16 video inputs, USB-C, and microphones and line-level devices connected to the two balanced XLR combo and stereo RCA inputs. And with the convenience of onboard Bluetooth, it’s possible to wirelessly stream music and other sound sources from a phone or tablet as well. There’s also an extensive effects library for polishing sounds and quickly resolving common issues like audio synchronization and background noise removal.
Extensive PTZ Camera Support
Robotic PTZ (pan-tilt-zoom) cameras eliminate the need for multiple camera operators, provide great production coverage with studio-grade broadcast quality, and can be placed in discreet locations thanks to their small size. The V-160HD includes built-in support to directly control select Canon, JVC, Panasonic, Sony, PTZOptics, Avonic, and VISCA-compatible PTZ LAN cameras. Mix and match different brands as you like, and operate up to 16 PTZ cameras simultaneously.

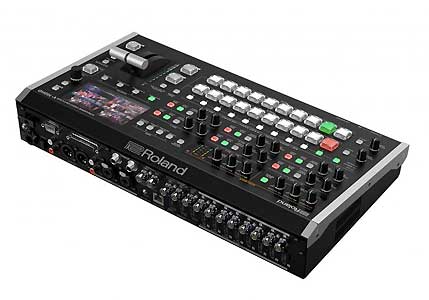

The ultimate hybrid event switcher gives you complete control with a LAN port, Bluetooth, USB, RS-232, tally/GPIO, support for foot-controlled operation, and more.
- Use the dedicated iPad remote control app to create an efficient touch interface
- Extend your workflow with free Remote Control Software (RCS) for macOS and Windows.
- Plug in a BOSS single or double footswitch to execute over 100 different switcher commands.
- Trigger start/stop on Atomos recorders over HDMI.
- Set up a tally light with Roland’s Smart Tally or the rear-panel hardware connector.
- Seamlessly integrate in system installations with RS-232 and TALLY/GPIO DB-sub connectors.
