Roland V-1HD+ Compact and Portable HD Video Switcher
SGD 965.85 excl. Tax
Weight | 2.8 kg |
---|
Roland V-1HD Plus Compact and Portable HD Video Switcher
Demystifying the features of Roland V-1HD+.
Video streaming is a challenging task, especially when you look for a lot of precision in the work. The right device is an utmost necessity in video presentations to make the entire process way more comprehensive.
And the Roland VR-1HD Plus is exactly the perfect device you need for your professional video streaming. So what exactly will it do differently for you. How will your work get enhanced by its influence?
The VR-1HD Plus is an HDMI video switcher which you can use for professional video streaming where you have multiple screen streaming and you need to control the audio as well as visuals of the content. It comes with innumerable features which makes your video streaming work way more comprehensive than you can even imagine.
With the VR-1HD Plus, gone are those days when you had to invest loads into getting external gears and multiple other devices to retain the integrity and quality of your videos and carry on multi-streaming. With the new Roland VR-1HD+, you can mix audios, videos, make changes on the screen while performing live streaming and achieve optimum output.
Let’s see what exactly is the Roland VR-1HD+ offering you.
Features in short:
- Compact design.
- Easily portable for work purposes.
- Professional high-definition streaming for live events.
- Effortless mixing of audio and visuals.
- Excellent audio quality retained for videos.
- 8 channel presets to monitor eight visuals simultaneously.
- 14 channel audio mixer.
- One switch visual operator for solo streamers.
- Extremely user-friendly. Easy to navigate and learn.
- Four-layer effects with other graphics for keeping the audience engaged while live streaming.
- Free iPad remote streaming and controlling software.
Specifications and features of Roland V-1HD+
Remote controlling using the iPad remote control software.
The VR-1HD Plus provides this amazing feature for free where the user can remotely control the operations through an app. The Roland VR-1HD+ iPad Remote control app enables the user to operate audio and visual mixing, moderate settings, monitor through eight scenes, and a lot more. It enhances the efficiency of the work process by making it effortless for the user. And the best part is, the user can do everything to make their work appear professional via this only device and nothing else.
Compact body and enhanced functionality.
The V-1HD Plus is compact in size, hence no chance of occupying a huge amount of space. It provides innumerable features and nullifies the requirement of depending on any external devices. You can maintain the professional quality of your content just by using this one device.
Enhanced workflow.
Unlike other streaming devices which promise to deliver efficiency but miserably fail to do that, the V-1HD+ sticks to what it promises. It has all the qualities and features to maintain the high quality of your audiovisuals and also cancels out the requirement of investing in external gears.
With the Roland V-1HD+, you don’t need to purchase extra gear as it provides you with the right tools to complete your job efficiently. You can easily connect your microphones, camcorders, streaming device be it PC, audio mixer, a video recorder with your VR-1HD Plus, and operate your live streaming.

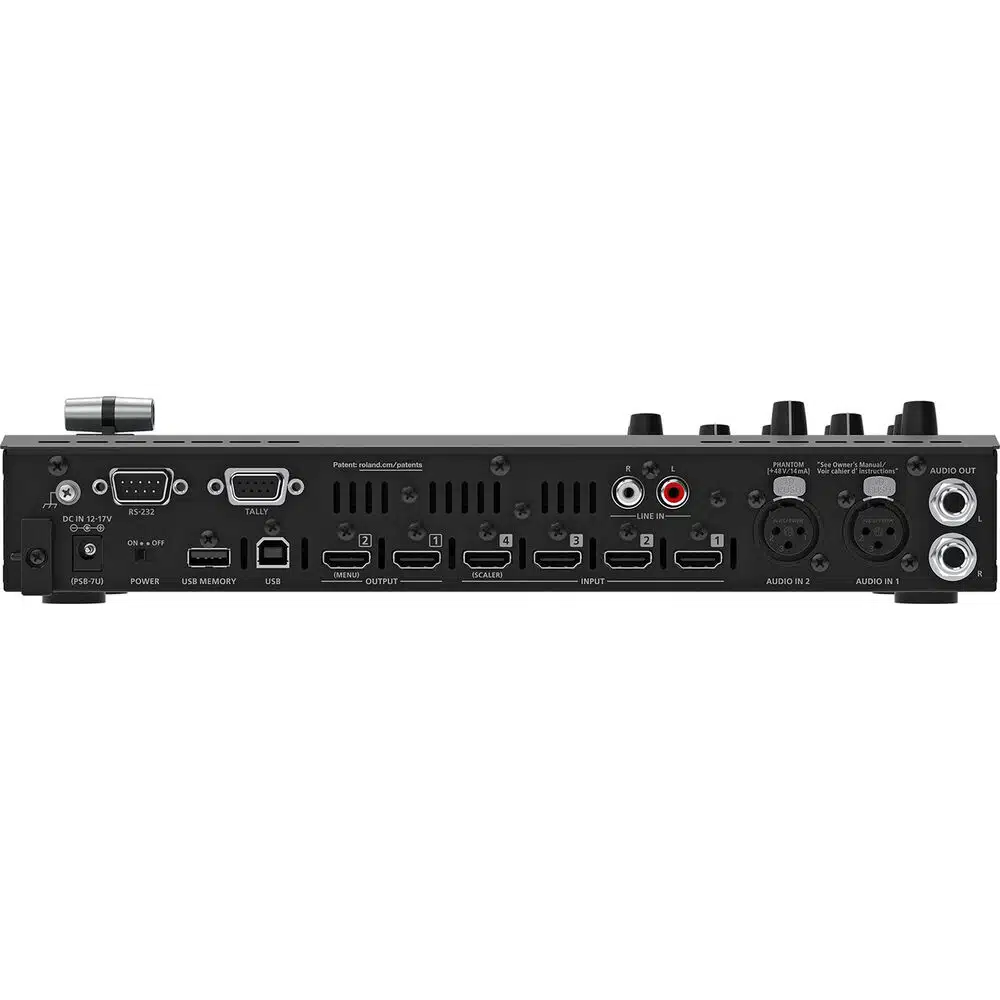

Four video inputs and two video outputs.
With four HDMI video input facilities, the device enables you to connect and mix audiovisuals from four different sources like computers, tablets, DSLR cameras, camcorders, and a lot more.
It also comes with two independent HDMI video outputs which you can use to connect with your live stream device and the other with any video monitor.
14 channel audio mixer.

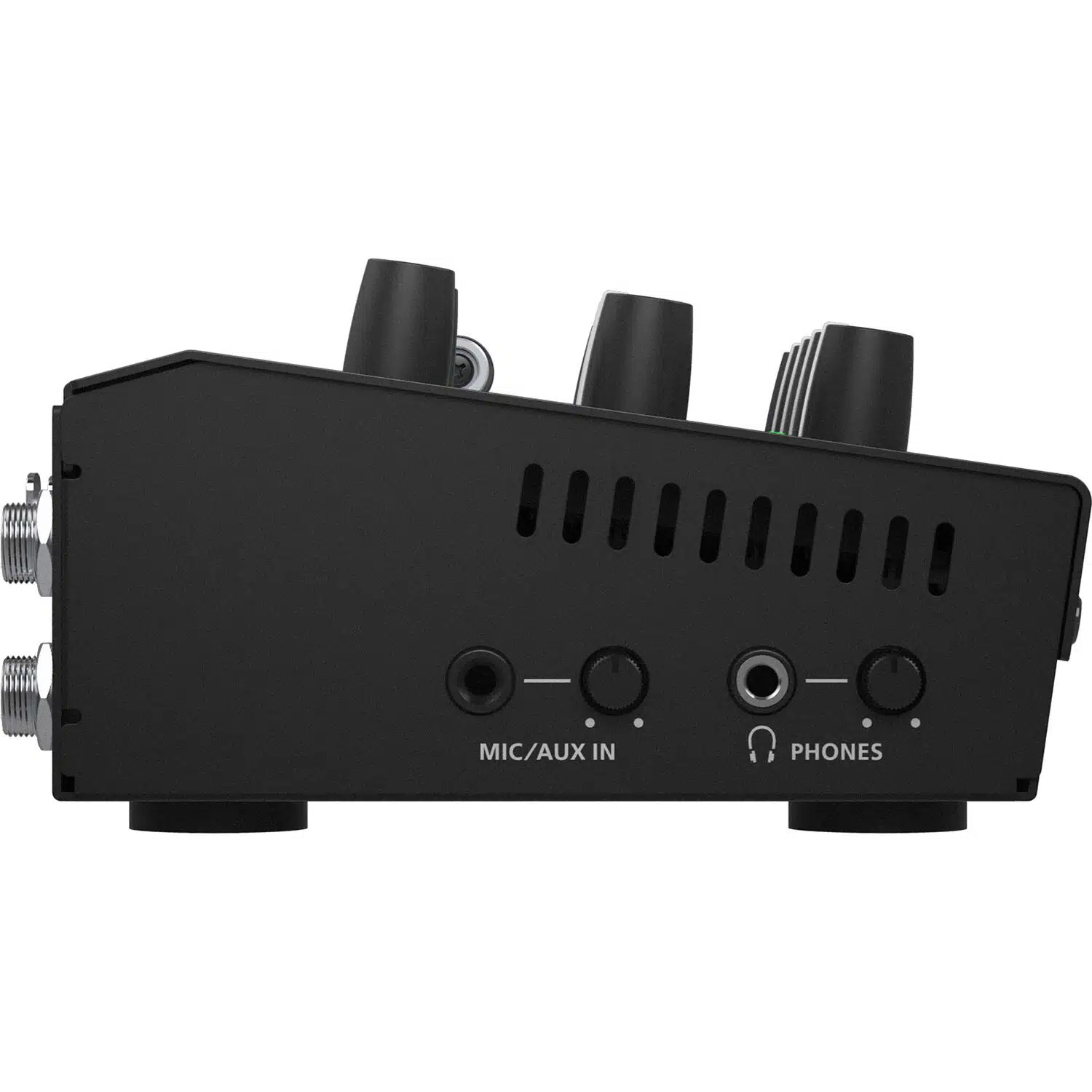

The Roland V-1HD+ enables you to mix audio curated from different sources be it a microphone, or camcorder and provides you with professional features to enhance the audio quality with inbuilt effects. It has two XLR mic inputs, â…› inch mic or stereo audio input, RCA jacks, four HDMI inputs as well. It also has HDMI outputs and 1.4 inch TRS outputs as well.
Enhanced audio control.
The V-1-HD Plus provides professional-level audio control. It has a sync moderator to synchronize audio and visuals, it has its own three-band equalizer and high pass filter as well. It never fails to deliver broadcast-level audio with amazing controlling features.
Multiview monitor display.
The V-1HD+ comes with a 10-window multiview monitoring display to help the user control and manage productions on time. You can present live videos, still pictures, presentations, and camera shots on a live program. Other than that, the recording status of the camcorder that is attached to the device can also be monitored.
Enhanced visuals.
The efficient effects engine in the V-1HD+ helps the user to enhance the quality of their recordings and visuals. It comes with amazing effects and a four-layered effects engine that will enable you to present amazing content to your audience. You can easily add titles, logos, comments from social media, and a lot of other extra content while live streaming.
To view more Roland products
View more HDMI Switcher products
Other Site:
VIDEO | |
---|---|
Video Processing | 4:2:2 (Y/Pb/Pr), 8-bit |
Input Connectors | INPUT 1–3: HDMI type A x 3 *HDCP SupportedINPUT 4: HDMI type A * HDCP Supported * Multi-format Supported |
Output Connectors | OUTPUT 1–2: HDMI type A x 2 * HDCP Supported |
Input Formats | INPUT 1–3 720/59.94p, 720/60p *1, *3 720/50p *1, *4 1080/59.94i, 1080/60i, 1080/59.94p, 1080/60p, 1080/29.97p, 1080/30p *2, *3 1080/50i, 1080/50p, 1080/25p *2, *4 1080/23.98p, 1080/24p *2 * The input interlaced video signal is converted to progressive video signal by internal processing. *1 SYSTEM FORMAT = 720p *2 SYSTEM FORMAT = 1080i or 1080p *3 FRAME RATE = 59.94 Hz *4 FRAME RATE = 50 HzINPUT 4 480/59.94i, 480/59.94p, 720/59.94p, 720/60p, 1080/59.94i, 1080/60i, 1080/59.94p, 1080/60p, 1080/29.97p, 1080/30p *1 576/50i, 576/50p, 720/50p, 1080/50i, 1080/50p, 1080/25p *2 1080/23.98p, 1080/24p VGA (640 x 480/60 Hz), SVGA (800 x 600/60 Hz), XGA (1024 x 768/60 Hz) WXGA (1280 x 800/60 Hz), SXGA (1280 x 1024/60 Hz) FWXGA (1366 x 768/60 Hz), SXGA+ (1400 x 1050/60 Hz) UXGA (1600 x 1200/60 Hz), WUXGA (1920 x 1200/60 Hz) * The refresh rate is the maximum value of each resolution. * Conforms to CEA-861-E,VESA DMT Version 1.0 Revision 11. * 1920 x 1200/60 Hz: Reduced blanking * The input interlaced video signal is converted to progressive video signal by internal processing. *1 FRAME RATE = 59.94 Hz *2 FRAME RATE = 50 HzStill Image: Bitmap File (.bmp) Maximum 1920 x 1080 pixels, 24-bit color, uncompressed. PNG File (.png) Maximum 1920 x 1080 pixels, 24-bit color * It can store up to 4 files in the internal memory. * PNG alpha channel not supported. |
Output Formats | OUTPUT 1–2: 720/59.94p *1, *4 720/50p *1, *5 1080/59.94i *2, *4 1080/50i *2, *5 1080/59.94p *3, *4 1080/50p *3, *5 *1 SYSTEM FORMAT = 720p *2 SYSTEM FORMAT = 1080i *3 SYSTEM FORMAT = 1080p *4 FRAME RATE = 59.94 Hz *5 FRAME RATE = 50 Hz |
Video Effects | Transition: CUT, MIX (DISSOLVE/FAM/NAM), WIPE (8 types) Composition: PinP (SQUARE, CIRCLE, DIAMOND), SPLIT (2 types), Keyer (Luminance key, Chroma key), DSK (Luminance key, Chroma key) Other: Flip horizontal, Flip vertical, Still image capture, Still image playback, Output fade (Audio, Video: WHITE or BLACK), Test pattern output |
AUDIO | |
Audio Processing | Sample rate: 24 bits/48 kHz |
Audio formats | Linear PCM, 24 bits/48 kHz, 2 ch |
Input Connectors | INPUT 1–4: HDMI Type A x 4 AUDIO IN 1–2: XLR-3-31 type (balanced, phantom power DC 48 V, 14 mA Max) LINE IN: RCA phono type MIC/AUX IN: Stereo miniature phone type (PLUG-IN power) |
Output Connectors | OUTPUT 1–3: HDMI Type A x 2 AUDIO OUT L, R: 1/4-inch TRS phone type PHONES: Stereo miniature phone type |
Nominal Input Level | AUDIO IN 1–2: -60 to +4 dBu (Maximum input level: +24 dBu) LINE IN: -10 dBu (Maximum input level: +10 dBu) MIC/AUX IN: -51 to -10 dBu (Maximum input level: +10 dBu) |
Input Impedance | AUDIO IN 1–2: 10 k ohms LINE IN: 15 k ohms MIC/AUX IN: 10 k ohms |
Nominal Output Level | AUDIO OUT L, R: +4 dBu (Maximum output level: +24 dBu) PHONES: 72 mW + 72 mW (32 ohms load) |
Output Impedance | AUDIO OUT L, R: 600 ohms PHONES: 10 ohms |
Audio Effects | Delay, High pass filter, De-Esser, Compressor, Noise gate, Equalizer, Limiter, Reverb, Test tone output |
OTHERS | |
Other Connectors | USB MEMORY: USB A type (for USB flash drive) REMOTE: USB B type (for remote control) RS-232: DB-9 type (male, for remote control) TALLY: DB-9 type (female, for TALLY output) |
Other Functions | Preset memory (8 types) Panel lock function EDID emulator Auto switching Auto input detect |
Power Supply | AC adaptor |
Current Draw | 2.1 A |
Power Consumption | 25.2 W |
Operation Temperature | +0 to +40 degrees Celsius +32 to +104 degrees Fahrenheit |
Dimensions | 316 (W) x 121 (D) x 65 (H) mm 12-1/2 (W) x 4-13/16 (D) x 2-9/16 (H) inches |
Weight (excluding AC adaptor) | 1.4 kg 3 lbs 2 oz |
Accessories | Startup Guide Leaflet “USING THE UNIT SAFELY” AC adaptor Power cord* 0 dBu = 0.775 Vrms |
All specifications and appearances are subject to change. |
