Roland V-1SDI 3G-SDI Video Switcher Support for SDI and HDMI cameras

SGD 2,150.90 excl. Tax

  • Easy to operate with hardware controls
  • Compact size
  • Supports up to Full HD 1080p
  • Quad input multi-viewer with source labelling and audio metering
  • Full 14 channel audio mixer included
Weight 2.9 kg
Roland
SKU: V-1SDI Category:
Description
Our Score
Click to rate this post!
[Total: 0 Average: 0]

Roland V-1SDI 3G-SDI Video Switcher Support for SDI and HDMI cameras

Roland V-1SDI is a flexible and versatile video switcher that makes it easy to connect and switch professional 3G SDI cameras and playback sources along with HDMI sources including cameras, smart phones, computers, tablets, Blu-ray players.

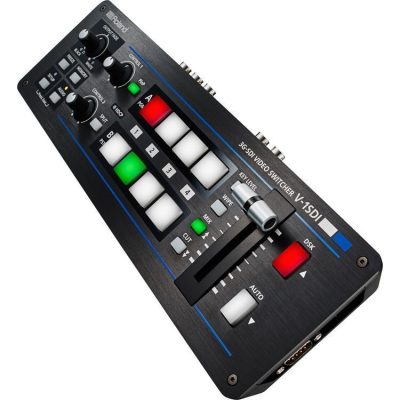

Compact and portable, the Roland V-1SDI delivers professional switching results with its easy to use hardware interface complete with T-Fader and easy-to-see backlit buttons.

With support for 3G-SDI, the Roland V-1SDI can operate at full 1080p resolution and can take advantage of the longer cable distance of SDI making this compact solution suitable for events and applications in even large spaces with the most professional level of SDI camera sources.

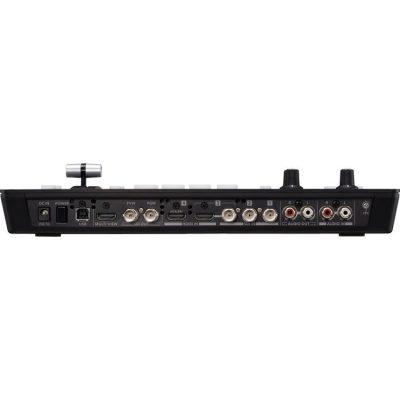

Inputs and Outputs

Inputs

The Roland V-1SDI has two dedicated 3G SDI inputs, a third channel input that supports 3G SDI or HDMI and a fourth channel HDMI input that also includes scaling.

This makes the Roland V-1SDI ideal in a variety of configurations for both an all camera applications and applications that mix cameras, video sources and computer data sources.

Outputs

The Roland V-1SDI has two 3G SDI Outputs and one HDMI output. SDI PVW and MULTI-VIEW outputs are assignable from Program, Multi-view Preview or Full Frame Preview for flexibility in different applications where output display devices support either SDI or HDMI inputs.

Audio Mixing

The Roland V-1SDI can mix 5 stereo audio inputs from the SDI or HDMI ports, the stereo line level input and a mic level input.

Every audio input is equipped with a DELAY function* to synchronize the video and the audio as well as EQ for adjustment of sound quality. Audio output is equipped with a MASTERING function to improve the sound of the final audio mix.

Audio follow function enables the audio to transition along with the video.?The final audio mix is both embedded in the SDI and HDMI output along with the video signal and is also output to the stereo audio output jacks for sending the audio mix to a PA system or recording it on an external device.

Other Roland Product
V-60HD Multi-Format HD Video Switcher
VC-1-HS HDMI to SDI Video Converter
VR-4HD All-In-One HD AV Mixer
V-800HD MK II Multi-format Video Switcher
XS-1HD Multi-format Matrix Switcher
HT-RX01 HDBaseT Compatible Receiver
XS-82H 8-in x 2-out Multi-Format AV Matrix Switcher
HT-TX01 HDBaseT Compatible Transmitter
XS-83H 8-in x 3-out Multi-Format AV Matrix Switcher
V-1HD HD Video Switcher
XS-84H 8-in x 4-out Multi-Format AV Matrix Switcher
V-1SDI 3G-SDI Video Switcher
V-1200HD Multi-Format Video Switcher
V-40HD Multi-Format Live Video Switcher
V-1200HDR Control Surface for V-1200HD
V-4EX 4-Channel Digital Video Mixer
VC-1-DL Bi-directional SDI/HDMI Converter
VC-1-SC Up/Down/Cross Scan Converter
VC-1-SH SDI to HDMI Video Converter with HDCP Support
VR-50HD Multi-Format AV Mixer

Specifications
Our Score
Click to rate this post!
[Total: 0 Average: 0]
Video
Video Processing
4:2:2 (Y/Pb/Pr), 8-bit
Input Connectors
SDI INPUT 1–3: BNC x 3
* Conforms to SMPTE 424M (SMPTE 425M-AB), 292M
HDMI INPUT 3–4: Type A (19 pins) x 2
* HDCP Supported
* INPUT 3: SDI or HDMI selected.
Output Connectors
SDI OUT PGM: BNC x 1
SDI OUT PVW: BNC x 1
* Conforms to SMPTE 424M (SMPTE 425M-AB), 292M
HDMI OUT MULTI-VIEW: Type A (19 pins) x 1
* HDCP Supported
Input Formats
SDI INPUT 1-3 Conforms to SMPTE 296M, SMPTE 274M
HDMI INPUT 3
720/59.94p, 720/50p SMPTE 296M(FORMAT switch = 720p)
1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p SMPTE 274M(FORMAT switch = 1080i or 1080p)
* The input interlaced video signal is converted to progressive video signal by internal processing.
* The video signal frame rate can be selected at the SETUP menu (59.94 or 50).

HDMI INPUT 4
480/59.94i, 576/50i, 480/59.94p, 576/50p, 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p

VGA (640 x 480/60 Hz), SVGA (800 x 600/60 Hz), XGA (1024 x 768/60 Hz)

WXGA (1280 x 768/60 Hz), SXGA (1280 x 1024/60 Hz)

FWXGA (1366 x 768/60 Hz), SXGA (1400 x 1050/60 Hz)

UXGA (1600 x 1200/60 Hz), WUXGA (1920 x 1200/60 Hz)
* The refresh rate is the maximum value of each resolution.
* Conforms to VESA DMT Version 1.0 Revision 11.
* 1920 x 1200/60 Hz: Reduced blanking.
* The input interlaced video signal is converted to progressive video signal by internal processing.
* The video signal frame rate can be selected at the SETUP menu (59.94 or 50).
Output formats
SDI OUT(PGM/PVW) Conforms to SMPTE 296M, 274M
HDMI OUT MULTI-VIEW
720/59.94p, 720/50p SMPTE 296M(FORMAT switch = 720p)
1080/59.94i, 1080/50i SMPTE 274M(FORMAT switch = 1080i)
1080/59.94p, 1080/50p SMPTE 274M(FORMAT switch = 1080p)
* The video signal frame rate can be selected at the SETUP menu (59.94 or 50).
Video Effects
Transition: CUT, MIX (DISSOLVE/FAM/NAM/MOSAIC), WIPE (30 types)
Composition: PinP, SPLIT, QUAD, DSK (Luminance Key, Chroma Key)
Audio
Audio Processing
Sampling rate: 24 bits/48 kHz
Audio Formats
SDI: Linear PCM, 24 bits/48 kHz, 2ch Conforms to SMPTE 299M
HDMI: Linear PCM, 24 bits/48 kHz, 2ch
Input Connectors
Digital: SDI INPUT 1–3 (BNC) x 3 SMPTE 299M
HDMI INPUT 3–4 (HDMI Type A 19 pins) x 2

Analog: AUDIO IN (RCA phono type)

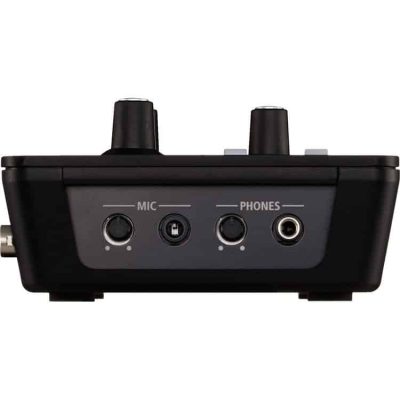

MIC (Stereo mini type, plug-in power supported)
Output Connectors
Digital: SDI OUT PGM: BNC x 1 SMPTE 299M
SDI OUT PVW: BNC x 1 SMPTE 299M
HDMI OUT MULTI-VIEW: Type A (19 pins) x 1

Analog: AUDIO OUT (RCA phono type)
PHONES (Stereo mini type)
Input Level
AUDIO IN: -10 dBu (Maximum: 8 dBu)
MIC: -41– -13 dBu (Maximum: -1 dBu)
Input Impedance
AUDIO IN: 15 k ohms
MIC: 10 k ohms
Output Level
AUDIO OUT: -10 dBu (Maximum: 8 dBu)
PHONES: 92 mW 92 mW (32 ohms)
Output Impedance
AUDIO OUT: 1 k ohm
PHONES: 10 ohms
Audio Effects
EQ, Delay, Compressor, HPF, Gate, Reverb, Mastering effect
Others
Other Connectors
USB: B Type (for remote control from PC)

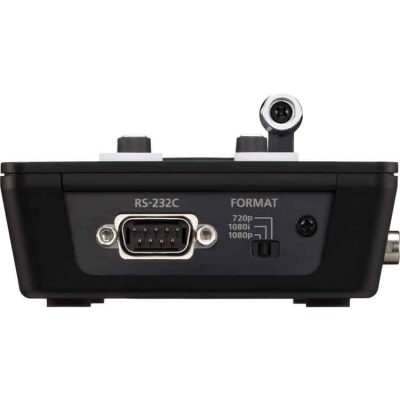

RS-232: DB-9 type
Other Functions
MEMORY (8 types)
FREEZE (input video captured)
OUTPUT FADE (Audio, Video: WHITE or BLACK)
Power Supply
AC Adaptor
Current Draw
2.1 A
Power Consumption
25 W
Operation Temperature
0 to 40 degrees Celsius
32 to 104 degrees Fahrenheit
Dimensions
313 (W) x 108 (D) x 59 (H) mm
12-1/3 (W) x 4-1/4 (D) x 2-1/3 (H) inches
Weight (excluding AC adaptor)
1.2 kg
2 lbs 10-2/5 oz
