Roland V-40HD Multi-Format Live Video Switcher Built-in frame synchronizers
SGD 1,580.40 excl. Tax
- Input status LEDs
- Full HDCP support
- Audio embedding
- Audio delay to align the timing with video for perfect lip sync
| Weight | 6.4 kg |
|---|
Description
Click to rate this post!
[Total: 1 Average: 5]

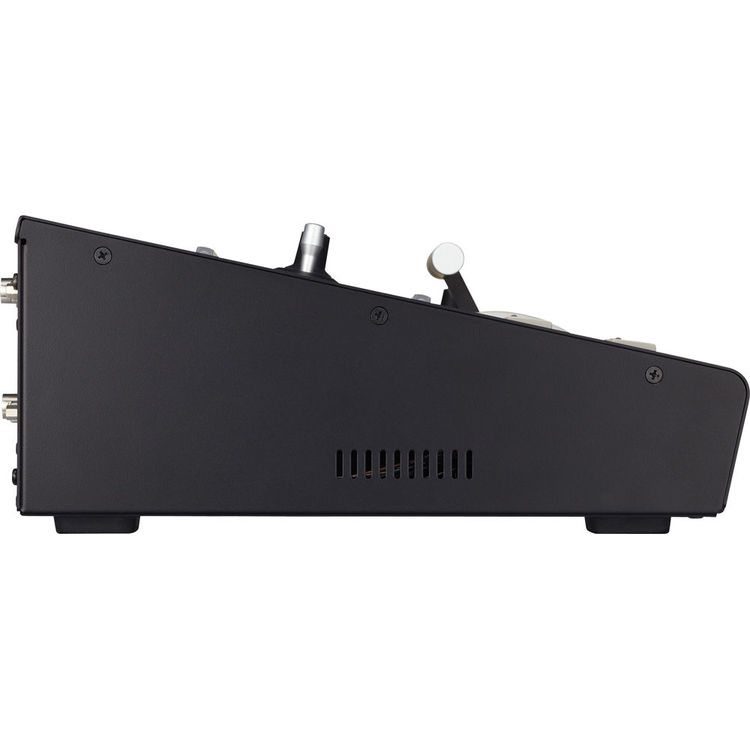

Roland V-40HD Multi-Format Video Switcher
Specially designed for live events, the V-40 HD borrows from the V-1600HD and V-800HD and delivers superior scaling and broadcast quality. The V-40HD is driven by a 4:4:4/10-bit internal processor and a 4:2:2/8-bit output processor and features a 1 M/E (PinP) + DSK configuration. It has four channels connected to 12 inputs: 4 composite, 4 RGB/component, and 4 HDMI inputs. The video switcher also has individual scalers on each of the five outputs and handles audio well with audio embedding and audio delay features.
Other features include an output preview with a four-way split screen, full HDCP support, 1920×1200 and 1080p resolution capability, and a user-friendly interface fully loaded with video effects. RS-232 support allows remote control, and you can save the video to a flash drive from the USB port on board. It is also noiseless since it radiates heat, negating the need for a noisy cooling fan.
Control the V-40HD via any MIDI device
A Roland digital audio mixer like the M-200i V-Mixer can link to the V-40HD for audio-follows-video applications. Connect another V-40HD for more input.
Use RS-232C for integrated remote control
It’s possible to connect a computer, wall panel, or other remote device and use it to control switching effects, and other operations.
USB PORT For saving the internal memory
This lets you connect a USB flash drive and save the internal memory to it.
MEMORY Save panel settings
You can save the V-40HD’s settings in internal memory. Each of the five memory banks can hold five sets of settings, letting you save a total of 25 configurations.
Output Connectors
Connect monitors, projectors, or recording equipment. [HDMI] Up to WUXGA, 1080p [RGB/Component] Up to WUXGA, 1080p [Composite] 480i or 576i: *In HDCP mode, no video signals are output from the RGB/Component and composite connectors.
To view more Roland products
View more HDMI switcher products
Other Site:
Roland V-40HD Multi-Format Live Video Switcher with Frame Synchronizers
Specifications
Click to rate this post!
[Total: 1 Average: 5]
|
Video Processing
|
|
|---|---|
|
Sampling rate
|
4:4:4 (Y/Pb/Pr), 10 bits
*Output signal processing is 4:2:2/8-bit. |
|
Audio processing
|
24 bits/48 kHz, 2ch
|
|
Input Formats
|
|
|
HDMI video
|
480/59.94i, 576/50i, 480/59.94p, 576/50p, 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p
640 x 480/60 Hz, 800 x 600/60 Hz, 1024 x 768/60 Hz, 1280 x 768/60 Hz, 1280 x 1024/60 Hz, 1366 x 768/60 Hz, 1400 x 1050/60 Hz, 1600 x 1200/60 Hz, 1920 x 1080/60 Hz, 1920 x 1200/60 Hz * The video signal frame rate must match with the unit?s frame rate setting. * Conforms to VESA DMT Version 1.0 Revision 11. * 1920 x 1200/60Hz: Reduced blanking |
|
HDMI audio
|
Linear PCM, 24 bits/48 kHz, 2ch
|
|
RGB/ Component
|
480/59.94i, 576/50i, 480/59.94p, 576/50p, 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p
|
|
640 x 480/60 Hz, 800 x 600/60 Hz, 1024 x 768/60 Hz, 1280 x 768/60 Hz, 1280 x 1024/60 Hz, 1366 x 768/60 Hz, 1400 x 1050/60 Hz, 1600 x 1200/60 Hz, 1920 x 1080/60 Hz, 1920 x 1200/60 Hz
* The video signal frame rate must match with the unit?s frame rate setting. * Conforms to VESA DMT Version 1.0 Revision 11. * 1920 x 1200/60Hz : Reduced blanking |
|
|
Composite
|
NTSC, PAL
|
|
Outut formats
|
|
|
HDMI video
|
480/59.94i, 576/50i, 480/59.94p, 576/50p, 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p
|
|
640 x 480/60 Hz, 800 x 600/60 Hz, 1024 x 768/60 Hz, 1280 x 768/60 Hz, 1280 x 1024/60 Hz, 1366 x 768/60 Hz, 1400 x 1050/60 Hz, 1600 x 1200/60 Hz, 1920 x 1200/60 Hz
* The output refresh rates of 640 x 480–1400 x 1050 are 75 Hz when the unit?s frame rate setting is 50 Hz. * Conforms to VESA DMT Version 1.0 Revision 11. * 1920 x 1200/60Hz: Reduced blanking |
|
|
HDMI audio
|
Linear PCM, 24 bits/48 kHz, 2ch
|
|
RGB/ Component
|
480/59.94p, 576/50p, 720/59.94p, 720/50p, 1080/59.94p, 1080/50p
|
|
640 x 480/60 Hz, 800 x 600/60 Hz, 1024 x 768/60 Hz, 1280 x 768/60 Hz, 1280 x 1024/60 Hz, 1366 x 768/60 Hz, 1400 x 1050/60 Hz, 1600 x 1200/60 Hz, 1920 x 1200/60 Hz
* The output refresh rates of 640 x 480–1400 x 1050 are 75 Hz when the unit?s frame rate setting is 50 Hz. * Conforms to VESA DMT Version 1.0 Revision 11. * 1920 x 1200/60Hz: Reduced blanking |
|
|
Composite
|
NTSC, PAL
|
|
Preview (HDMI)
|
Video: 1920 x 1080/60 Hz (fixed)
|
|
Input Jacks
|
|
|
Video/Audio
|
HDMI: Type A (19 pins) x 4 ( INPUT 1–4)
|
|
RGB/Component: HD DB-15 type x 4 ( INPUT 1–4)
Composite: BNC type x 4 (INPUT 1–4) |
|
|
Audio
|
1/4-inch TRS phone type ( balanced/unbalanced) x 1 pair ( AUDIO INPUT)
|
|
Output Jacks
|
|
|
Video/Audio
|
HDMI: Type A (19 pins) x 2 (OUTPUT 1/2)
|
|
RGB/Component: HD DB-15 type x 2 (OUTPUT 1/2)
Composite: BNC type x 1 (OUTPUT 1) |
|
|
Preview
|
HDMI: Type A (19 pins) x 1
|
|
Other Jacks
|
|
|
Tally
|
HD DB-15 type x 1
|
|
MIDI
|
5 pins DIN type x 2 ( IN, OUT/THRU)
|
|
RS-232C
|
9 pins D-sub type x 1
|
|
USB
|
A type x 1 ( host, for USB memories )
|
|
Signl level / Impedance
|
|
|
RGB/ Component
|
Signal level: 0.7Vp-p( H,V:5VTTL)
Impedance: 75 ohms |
|
Composite
|
Signal level: 1.0 Vp-p ( luminance), 0.286 Vp-p (chroma(NTSC) ), 0.3 Vp-p (chroma(PAL))
Impedance: 75 ohms |
|
Analog audio
|
Nominal input level: 4 dBu Maximum Input Level: 22 dBu
Impedance: 15 k ohms |
|
Video Effects
|
|
|
Transition
|
Mix, Cut, Wipe ( 9 patterns )
|
|
Composition
|
Picture in Picture
|
|
Others
|
Output ade
|
|
Audio Effects
|
|
|
Delay
|
0.0-12.0 frames
|
|
Others
|
|
|
Display
|
7 segments, 3 characters LED
|
|
Power Supply
|
DC 12 V (AC Adaptor)
|
|
Current Draw
|
2.6A
|
In The Box
Click to rate this post!
[Total: 1 Average: 5]
- AC Adaptor (4 pins XLR type connector)
- Power Cord
- RCA-BNC conversion plug x 4
- Owner’s manual
