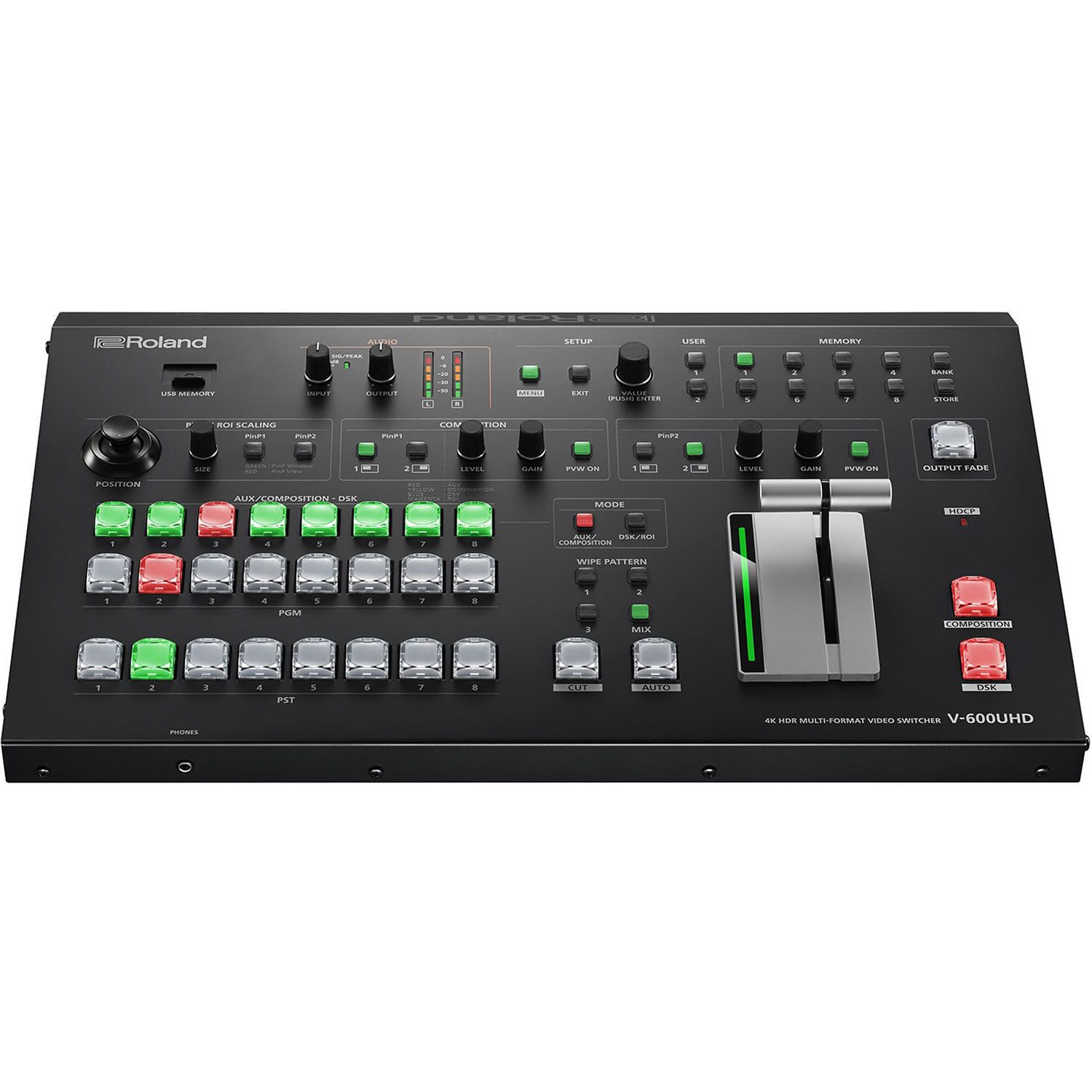

Roland V-600UHD 4K HDR Multi-Format Video Switcher
Roland V-600UHD 4K HDR Multi-Format Video Switcher
Roland V-600UHD 4K HDR Multi-Format Video Switcher
Roland V-600UHD 4K HDR Multi-Format Video Switcher
Roland V-600UHD 4K HDR Multi-Format Video Switcher
Click to enlarge
Home » Shop » Switcher and Encoder » Switcher only » HDMI/SDI Switcher » Roland V-600UHD 4K HDR Multi-Format Video Switcher
Sachtler flowtech 75 GS Carbon Fiber Tripod
Sachtler flowtech 75 GS Carbon Fiber Tripod with Ground Spreader USD 1,747.20 excl. Tax
Back to products
Roland VP-42H Video Processor
Roland VP-42H Video Processor up to 4 HDMI video sources USD 1,300.00 excl. Tax

Roland V-600UHD 4K HDR Multi-Format Video Switcher

USD 11,750.00 excl. Tax

Weight 7.4 kg
Add to wishlist
SKU: V-600UHD Category: HDMI/SDI Switcher
  • Description
  • Specifications
  • Delivery Info
  • Reviews (0)
Description

Roland V-600UHD 4K HDR Multi-Format Video Switcher

Upgrading to 4K greatly improves the image quality in your productions, so why compromise with switchers that may deliver more pixels but omit the true capabilities of 4K?

High Dynamic Range [HDR]

The Roland V-600UHD 4K uses High Dynamic Range [HDR] so your events look amazing. You don’t just see more pixels, you see better, more dynamic-looking pixels that preserve the details in the darkest and brightest areas of an image. HDR provides well-balanced stage lighting without oversaturation for IMAG (and it’s easier to achieve compared with using SDR.) And SDR dynamic range signals can also be input and switched with the V-600UHD.

Full 60Hz Frame Rate

With full 60Hz framerate support, the Roland V-600UHD 4K delivers a smooth, crisp video image without the blur that’s common when fast motion is displayed at 30Hz refresh rates.

A More Vivid Color Space

The Roland V-600UHD 4K supports Rec.2020, the highest-specification Wide Color Gamut (WCG), as well as RGB and Rec.709 standards to display the widest range of visible colors. This provides an increased level of realism and improved color accuracy, especially for red and yellow color ranges.

10-bit 4:4:4 Pixel-accurate Color

Internal 10-bit Color Depth processing reduces color banding and sharpens high-detail sources from computers. This makes it easier to read small fonts and other fine details, even when drastically scaled and magnified.

Support for DCI Cinema 4K Resolution

Not all 4K content has the same aspect ratio. Although 4K content is always 2160 pixels high, DCI or “Cinema 4K” is 4096 pixels wide, which is 256 pixels wider than UHD. The V-600UHD lets you switch and display content at the originally intended aspect ratio, without cropping or letterboxing.

Click to rate this post!
[Total: 0 Average: 0]
Specifications
PROCESSING
Video Processing
4:4:4 (Y/Pb/Pr), 10-bit
Supported Video Input Formats

HDMI (Video, CEA-861-F): 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p, 2160/59.94p (UHD 4K), 2160/50p (UHD 4K), 2160/59.94p (DCI 4K), 2160/50p (DCI 4K)
HDMI (PC, VESA DMT): 1600 x 1200/60 Hz (UXGA)
HDMI (PC, CEA-861-F): 1920 x 1080/60 Hz (FHD)
HDMI (PC, VESA CVT): 1920 x 1200/60 Hz (WUXGA, Reduced blanking)
HDMI (PC, CEA-861-F): 3840 x 2160/30 Hz (UHD 4K), 3840 x 2160/60 Hz (UHD 4K), 4096 x 2160/30 Hz (DCI 4K), 4096 x 2160/60 Hz (DCI 4K)
RGB (PC, VESA DMT): 1600 x 1200/60Hz (UXGA)
RGB (PC, CEA-861-F): 1920 x 1080/60Hz (FHD)
SDI (Video, SMPTE ST274): 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p
SDI (Video, SMPTE ST2036): 2160/59.94p (UHD 4K), 2160/50p (UHD 4K)
SDI (Video, SMPTE ST2048): 2160/59.94p (DCI 4K), 2160/50p (DCI 4K)

Still Image: Windows Bitmap File (.bmp), Maximum 4096 x 2160 pixels, 24-bit per pixel, uncompressed

Supported Video Output Formats

HDMI (Video, CEA-861-F): 1080/59.94p, 1080/50p, 2160/59.94p (UHD 4K), 2160/50p (UHD 4K), 2160/59.94p (DCI 4K), 2160/50p (DCI 4K)
HDMI (PC, CEA-861-F): 1920 x 1080/60Hz (FHD), 3840 x 2160/60Hz (UHD 4K), 4096 x 2160/60Hz (DCI 4K)
HDMI (MULTI-VIEW, PC, CEA-861-F): 1920 x 1080/60Hz (FHD)
SDI (Video, SMPTE ST274):1080/59.94p, 1080/50p
SDI (Video, SMPTE ST2036):2160/59.94p (UHD 4K), 2160/50p (UHD 4K)
SDI (Video, SMPTE ST2048):2160/59.94p (DCI 4K), 2160/50p (DCI 4K)

* Conforms to VESA DMT, VESA CVT, CEA-861-F
* Color Gamut: Rec.709, Rec.2020
* Dynamic Range: SDR, HDR PQ (HDR10), HDR HLG

Video Effects

Transition: Mix, Cut, Wipe (9 patterns)
Composition: PinP, Key (*1), PinP + Key (*1)
DSK: PinP, Key (*1), PinP + Key (*1)
Others: Output Fade

*1 Luminance Key, Chroma Key

Audio Processing
24 bits/48 kHz
Audio formats
SDI IN/OUT: Linear PCM, 24 bits/48 kHz, 16 ch (Conforms to SMPTE 299M)
HDMI IN/OUT: Linear PCM, 24 bits/48 kHz, 2 ch
Audio Effects
Matrix mixer
Delay (1 ms units, max 500 ms)
Test tone output

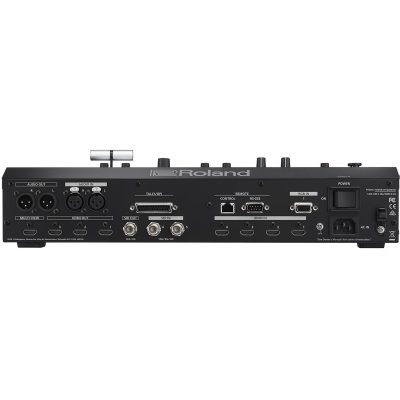

CONNECTORS
Input Connectors
HDMI IN 1–4 connectors: HDMI type A (HDMI 2.0)
SDI IN 5–6 connectors: BNC type (12G/3G/HD-SDI, Conforms to SMPTE 2082, 424M (Level-A, Level-B), 292M)
RGB IN 1 connector: HD DB-15 type (Analog RGB, Select HDMI IN 1 or RGB IN 1 using menu)
AUDIO IN L/R connectors: XLR-3-31 type (balanced)
Output Connectors
SDI OUTPUT connector: BNC type (12G/3G-SDI, Conforms to SMPTE 2082, 424M (Level-A, Level-B))
HDMI OUT 1–3 connectors: HDMI type A (HDMI 2.0)
MULTI-VIEW connector: HDMI type A (HDMI 1.4)
AUDIO OUT L/R connectors: XLR-3-32 type (balanced)
PHONES jack: Stereo miniature phone type
Other Connectors

USB MEMORY port: USB A type (for USB flash drive)
RS-232 connector: DB-9 type (Male) (for Remote Control)
LAN port: RJ45 type, 100BASE-TX (for Remote Control)
TALLY/GPI port: DB-25 type (Female) (Tally: 16, GPI: 8)

* XLR type: 1 GND, 2 HOT, 3 COLD

AUDIO INPUT/OUTPUT CHARACTERISTICS
Input Level
AUDIO IN L/R: +4 dBu (Maximum: +24 dBu)
Input Impedance
AUDIO IN L/R: 15 k ohms
Output Level
AUDIO OUT L/R: +4 dBu (Maximum: +24 dBu)
PHONES: 92 mW + 92 mW (32 ohms)
Output Impedance
AUDIO OUT L/R: 600 ohms
PHONES: 10 ohms
OTHER
Power Consumption
80 W
Dimensions
482 (W) x 300 (D) x 109 (H) mm
19 (W) x 11-13/16 (D) x 4-5/16 (H) inches
* When rack mount angles are fitted.
Weight
5.3 kg
11 lbs 11 oz
* Including rack mount angles.
Operation Temperature
+5 to +40 degrees Celsius
+41 to +104 degrees Fahrenheit
Accessories
Owner’s Manual
Power cord
Rack-mount angle x 2
* 0 dBu=0.775 Vrms
* This product is a Class A digital device under FCC part 15.
Click to rate this post!
[Total: 0 Average: 0]
