Roland V-60HD Multi-Format HD Video Switcher

The Roland V-60HD is a versatile video switcher that can be used in different settings including live event, boardrooms, conference halls etc. It is perfect for live video switching and doesn?t need an external converter to change formats. The unit features eight inputs; 2 HDMI, 4 SDI and two still image inputs while at the same time featuring two SDI and two HDMI outputs. You can view media from all the input using the HDMI multi-view output all of which can be controlled from a 3? display panel.

The Roland V-60HD boasts an impressive 18 channel mixer getting input signals from 4 XLR/ ?? audio jacks. The signal is processed at 4:2:2 with 8-bits processing power. Another perk is the auto-mixing feature that balances all audio levels from multiple source e.g. from video and microphones. Switching videos at your event will be a breeze with the smooth interface that allows you to control the module via LAN or RS232 port. You also get a myriad of video effects to choose from and create a dazzling display.

Roland V-60HD Professional user interface

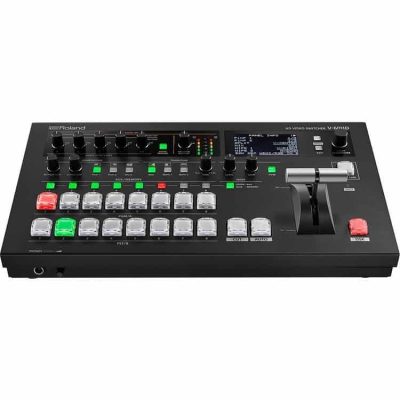

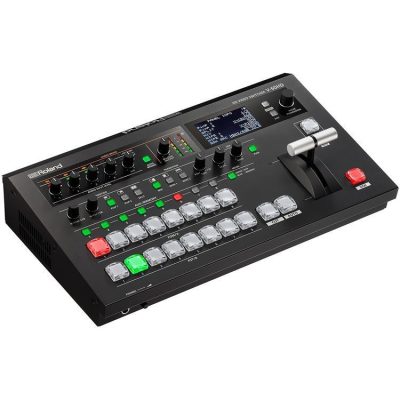

Roland V-60HD Professional broadcast cross point buttons with PGM/PST LED color indicators. Rugged T-Bar, DSK quick edit knobs for key level and gain. Two dedicated PinP and Split buttons with knobs for center framing of Split and PinP placement. Change transition type using either mix or two preset wipe buttons with dedicated transition dissolve time knob. Front panel 3-inch LCD display with quick access menu navigation to adjust switcher parameters.

AUX bus

A dedicated AUX bus can be assigned to any of the four discreet SDI or HDMI outputs providing seamless switching from the 8-input channels (4 SDI, 2 HDMI or 1 RGB and 2 Still Images). Dedicated AUX layer cross-point buttons ensures quick operation and seamless switching.

Auto mixing

Roland V-60HD included Auto-Mixing function ensures the correct mix for multiple panel participants at conferences by automatically adjusting levels across multiple audio sources. A priority weighting assignment that is channel specific can be set giving the moderator or priority audio channel a higher volume level while using the Auto-Mixing function allowing the operator to focus on video switching and production.

In the Box

VR-60HD Switcher
Owner’s Manual
AC adaptor
Power cord

Features

4 SDI Inputs (with de-interlacer)
2 HDMI Inputs (scaled)
1 RGB shared with HDMI input 6 (scaled)
2 SDI Outputs ? Assignable to PGM, PVW, AUX
2 HDMI Outputs ? Assignable to PGM, PVW, AUX
LAN ? Remote control and Smart Tally
RS-232 ? Remote control
USB Port ? Still Image Upload, Saving Program Files

Specifications

VIDEO
Video Processing	4:2:2 (Y/Pb/Pr), 8-bit
Input Connectors	SDI IN 1–4: BNC type x 4 * Conforms to SMPTE 424M (SMPTE 425M-AB), 292M HDMI IN 5–6: HDMI type A x 2 * HDCP Supported * Multi-format Supported RGB/COMPONENT IN 6: HD DB-15 type x 1 * INPUT 6: HDMI or RGB/COMPONENT selected. * Multi-format Supported
Output Connectors	SDI OUT 1–2: BNC type x 2 * Conforms to SMPTE 424M (SMPTE 425M-AB), 292M HDMI OUT 1–2: HDMI type A x 2 HDMI MULTI-VIEW: HDMI type A x 1 * HDCP Supported
Input formats	SDI IN 1–4: Conforms to SMPTE 296M, SMPTE 274M 720/59.94p, 720/50p SMPTE 296M(FORMAT switch = 720p) 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p SMPTE 274M(FORMAT switch = 1080i or 1080p) * The input interlaced video signal is converted to progressive video signal by internal processing. * The video signal frame rate can be selected at the SYSTEM menu (59.94 or 50). HDMI IN 5: HDMI/RGB/COMPONENT IN 6: 480/59.94i, 576/50i, 480/59.94p, 576/50p 720/59.94p, 720/50p, 1080/59.94i, 1080/50i 1080/59.94p, 1080/50p VGA (640 x 480/60 Hz), SVGA (800 x 600/60 Hz), XGA (1024 x 768/60 Hz) WXGA (1280 x 768/60 Hz), SXGA (1280 x 1024/60 Hz) FWXGA (1366 x 768/60 Hz), SXGA+ (1400 x 1050/60 Hz) UXGA (1600 x 1200/60 Hz), WUXGA (1920 x 1200/60 Hz) * The refresh rate is the maximum value of each resolution. * Conforms to CEA-861-E,VESA DMT Version 1.0 Revision 11. * 1920 x 1200/60 Hz: Reduced blanking * The input interlaced video signal is converted to progressive video signal by internal processing. * The video signal frame rate can be selected at the SYSTEM menu (59.94 or 50).
Still Image	Windows(R) Bitmap File (.bmp) * Maximum 1920 x 1080 pixels, 24-bit color, uncompressed. * It can be stored up to 2 files in the internal memory.
Output formats	SDI OUT 1–2: Conforms to SMPTE 296M, 274M HDMI OUT 1–2: 720/59.94p, 720/50p (SYSTEM FORMAT = 720p) 1080/59.94i, 1080/50i (SYSTEM FORMAT = 1080i) 1080/59.94p, 1080/50p (SYSTEM FORMAT = 1080p) * The video signal frame rate can be selected at the SYSYTEM menu (59.94 or 50).
HDMI MULTI-VIEW	1080/59.94p, 1080/50p
Video Effects	Transition: CUT, MIX (DISSOLVE/FAM/NAM), WIPE (30 types) Composition: PinP(SQUARE, CIRCLE, HEART, DIAMOND), DSK (Luminance Key, Chroma Key) Others: Flip horizontal, Output fade, Still Image Capture, Still Image Playback, Test pattern output
AUDIO
Audio Processing	Sampling rate: 24 bits/48 kHz
Audio formats	SDI IN: Linear PCM, 24 bits/48 kHz, 2ch (Conforms to SMPTE 299M) SDI OUT: Linear PCM, 24 bits/48 kHz, 8ch (Conforms to SMPTE 299M) HDMI IN/OUT: Linear PCM, 24 bits/48 kHz, 2ch
Input Connectors	Digital: SDI IN 1–4: BNC tyep x 4 HDMI IN 5–6 (HDMI Type A 19 pins) x 2 Analog: AUDIO IN 1–4: Combo type (XLR, 1/4-inch TRS phone), phantom power AUDIO IN 5–6: RCA phono type
Phantom Power	DC 48 V (unloaded maximum), 10 mA (maximum load) * Current value per channel
Output Connectors	Digital: SDI OUT 1–2: BNC type x 2 HDMI OUT 1–2: HDMI type A x 2 HDMI MULTI-VIEW: HDMI type A x 1 Analog: AUDIO OUT: XLR type AUDIO OUT: RCA phono type PHONES: Stereo 1/4-inch phone type
Input Level	AUDIO IN 1–4: -60–+4 dBu (Maximum: +22 dBu) AUDIO IN 5–6: -10 dBu (Maximum: +8 dBu)
Input Impedance	AUDIO IN 1–4: 10 k ohms (HEAD AMP GAIN 0–23 dB), 5 k ohms (HEAD AMP GAIN 24–+64 dBu), AUDIO IN 5–6: 15 k ohms
Output Level	AUDIO OUT (XLR): +4 dBu (Maximum: +22 dBu) AUDIO OUT (RCA): -10 dBu (Maximum: +8 dBu) PHONES: 92 mW + 92 mW (32 ohms)
Output Impedance	AUDIO OUT (XLR): 600 ohms AUDIO OUT (RCA): 1 k ohm PHONES: 10 ohms
Audio Effects	Auto Mixing, EQ, Delay, Compressor, HPF, Gate, Multi-Band Compressor, Limiter
OTHERS

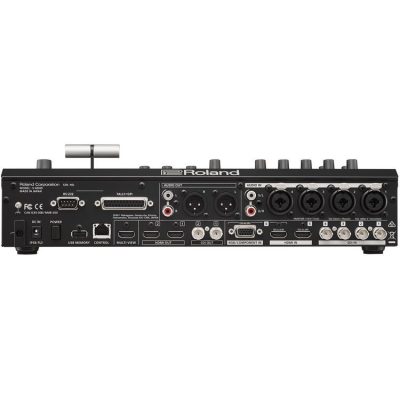

Other Connectors	USB: USB A type (for USB memory) TALLY/GPI: DB-25 type (Female)(Tally: 12, GPI: 8) RS-232: DB-9 type (Male) for Remote Control LAN: RJ45 100BASE-TX for Remote Control
Other Functions	MEMORY (8 types) Panel lock function EDID Emulator EDID Emulator
Display	Graphic LCD: 128 x 64 dots
Power Supply	AC Adaptor
Current Draw	3.1 A
Power Consumption	37.0 W
Operation Temperature	+0 to +40 degrees Celsius +32 to +104 degrees Fahrenheit
Dimensions	356 (W) x 221 (D) x 96 (H) mm 14-1/16 (W) x 8-3/4 (D) x 3-13/16 (H) inches
Weight (excluding AC adaptor)	3.0 kg 6 lbs 10 oz
* 0 dBu=0.775 Vrms

In The Box

[V-60HD] Ver.3.0
The Ver.3.0 update enhances workflows and expands control.
The V-60HD can capture stills directly from PGM. Additional frame-rate support on SDI inputs includes 60p, 30p, 25p, 24p and 23.98p.

Take control of even more based PTZ cameras over IP using universal VISCA protocols. Analog Audio input 1-6 can is assignable to AUX output. and more.
